DOPPSTADT
DOPPSTADT is one of the world's leading manufacturers of smart waste shredding and sorting equipment. The equipment is designed for a wide range of applications.
USES
- industrial waste
- construction waste
- construction debris
- biological waste
- green waste
- wood waste
TYPES OF EQUIPMENT
- crusher
- sorter
- screener
- cargo unloading
- mobile modular sorting line
EQUIPMENT
APPLICATION AND FUNCTIONS
SMART GRINDING
Slow speed shredder WITH MAGNET
Suitable for a wide range of applications and material shredding.
ADVANTIGES
- Optimal size for transport
- High material throughput
- Self-protection system
- Variable power transmission
- Versatile application
TECHNICAL PARAMETERS
- Engine: CAT 310 kW
- Rotor Diameter: 600 mm
- Number of Teeth: 15 / 30
- Tooth Depth: 174 mm
- Rotor Length: 2.2 m Limiting
- Elements: 7x limiters, L 600
- Applications: Waste, soil, construction debris, mattresses

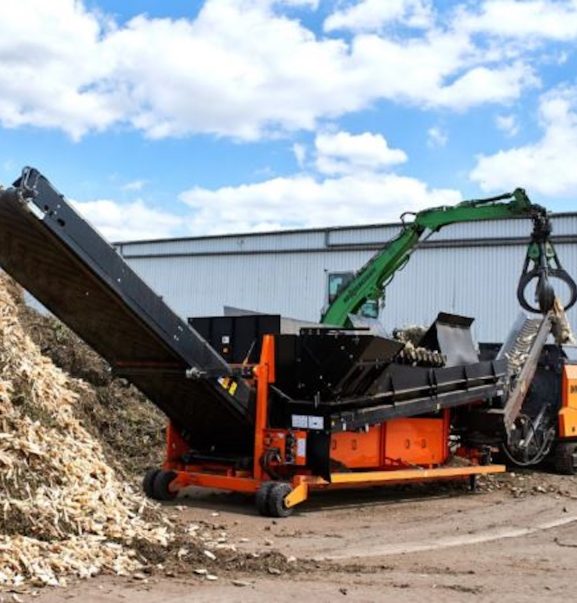

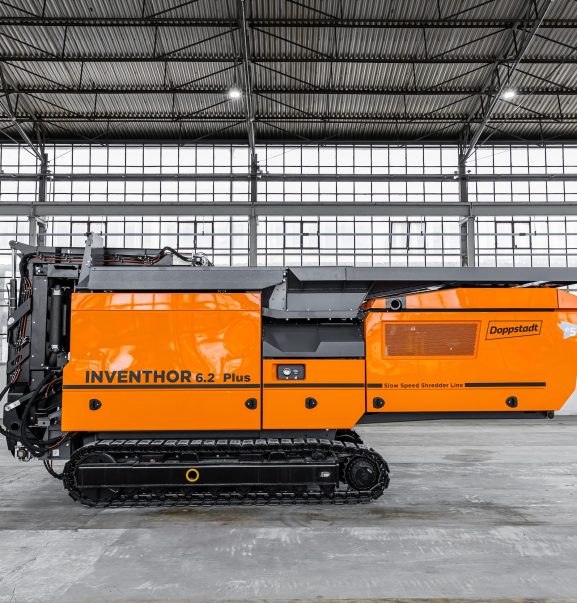

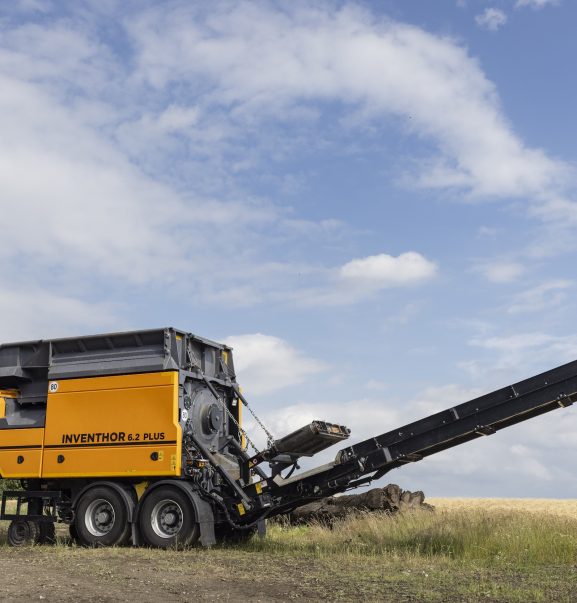

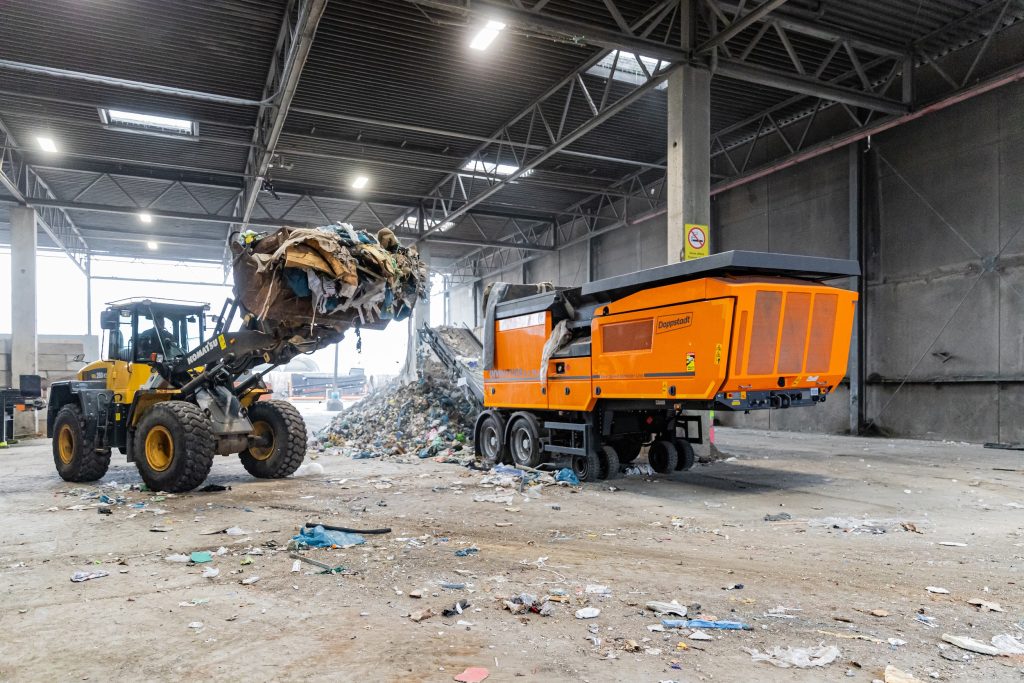

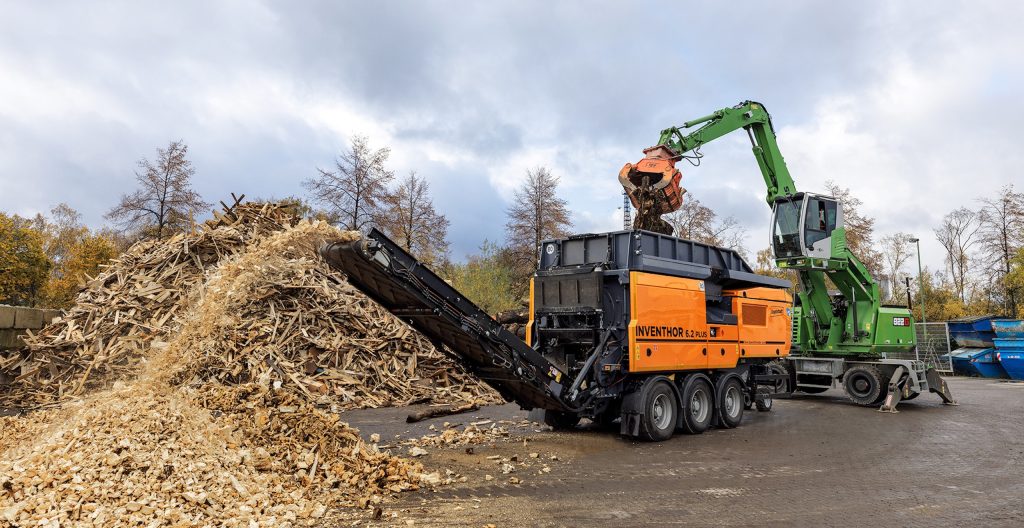

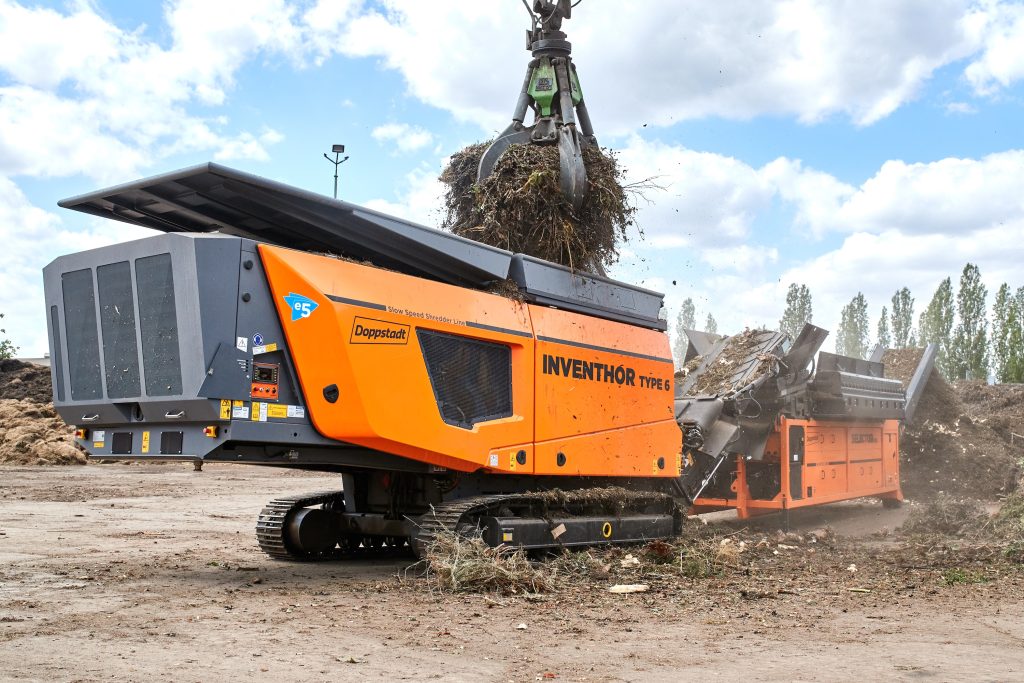

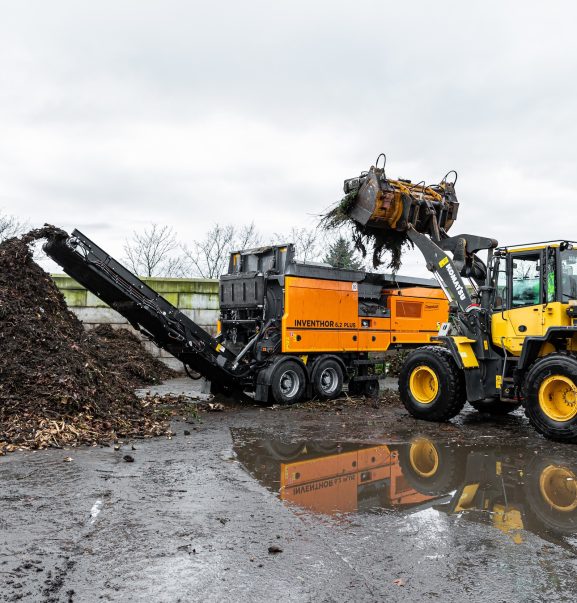

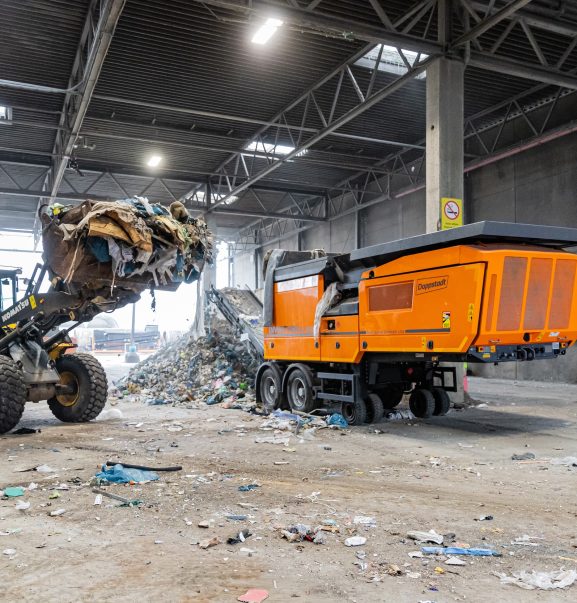

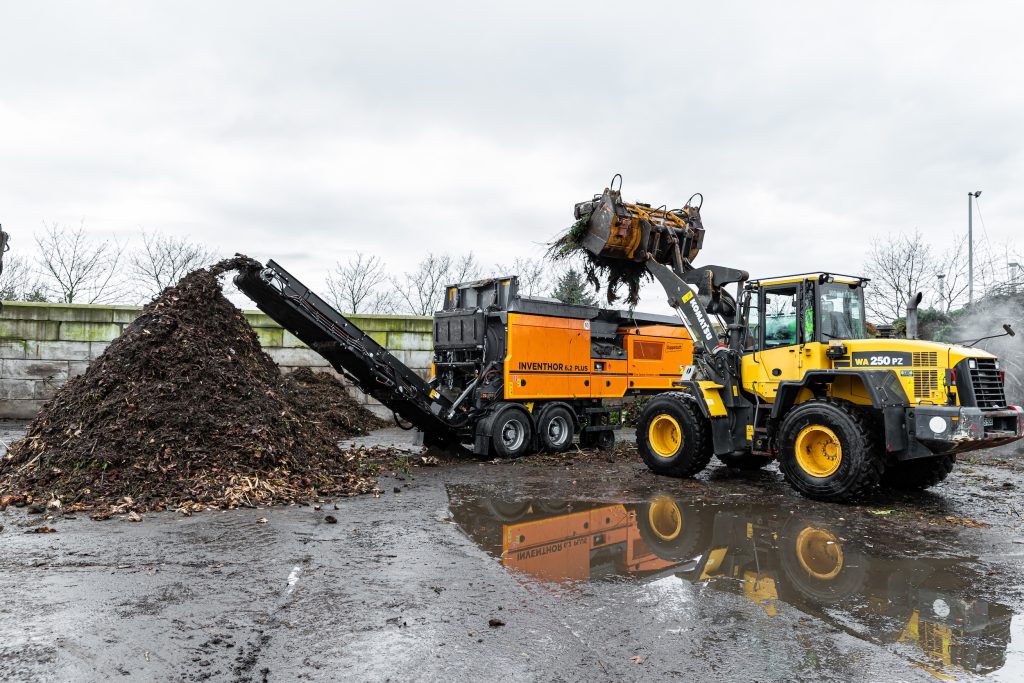

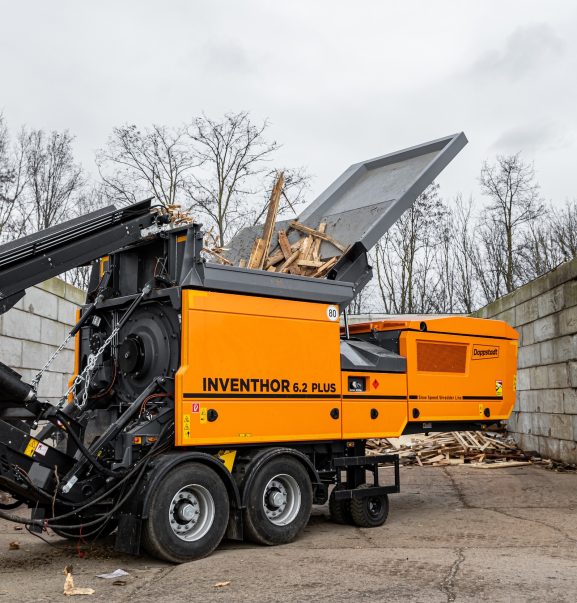

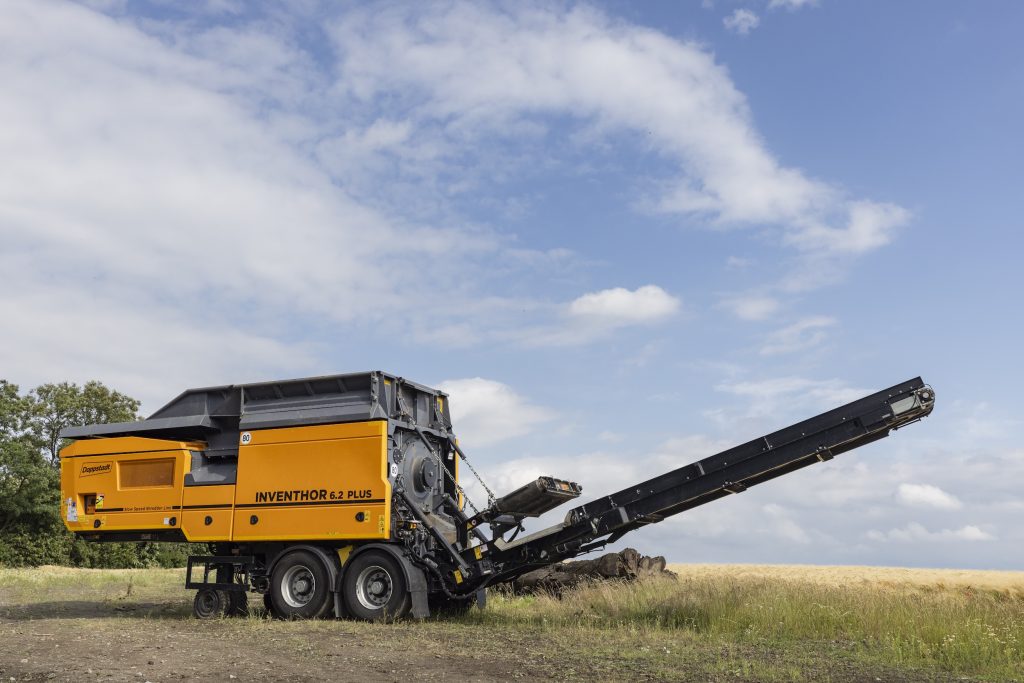

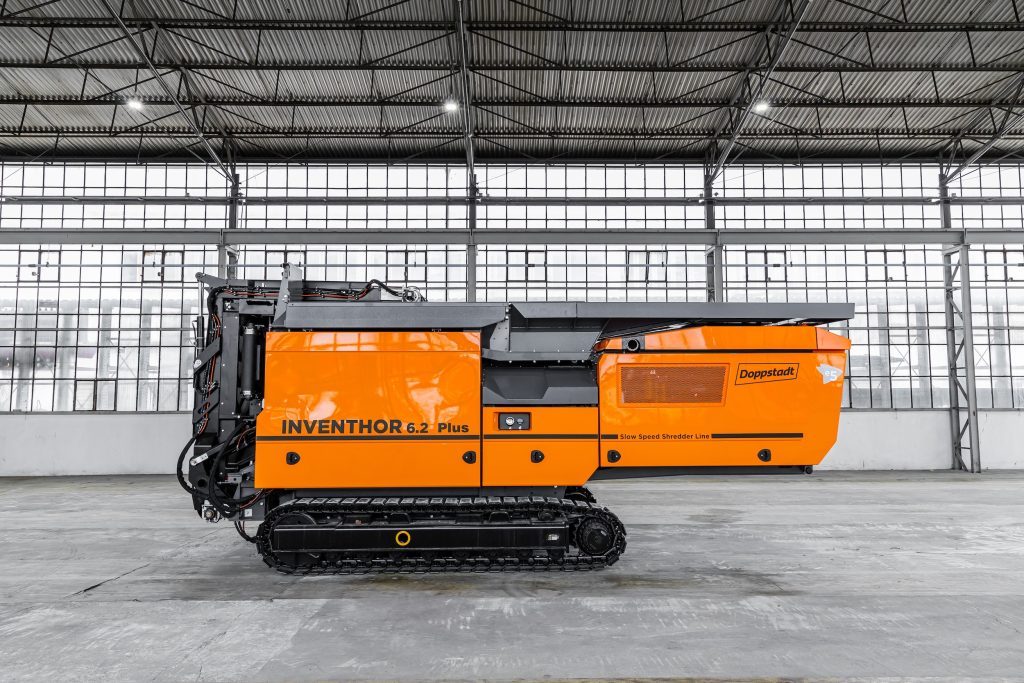

INVENTHOR 6.2
Maximum efficiency and suitability for practical use
INVENTHOR 6.2 sets the standard for shredding efficiency. With VarioDirect Drive, it delivers maximum performance from the very first ton.
TECHNICHAL SPECIFICATIONS
- VarioDirect Drive – variable, continuous power transmission
- Dopp-Lock® system with screw-on tools – highly adaptable and quick to convert
- Easy loading, as well as removable funnel extensions for lower loading heights
- Various engine types available (CAT / MTU)
- Quick restoration of operational capability after maintenance
- Available as a semi-trailer (SA), with a trailer chassis (A) or a crawler chassis (K) with unloading conveyors of various lengths (4.9 and 7 m)
RECYCLABLE MATERIALS
- Wood waste
- Commercial waste
- Bulky waste
- Construction debris
- Biowaste
- Mattresses, tires, carpets, plastic pipes

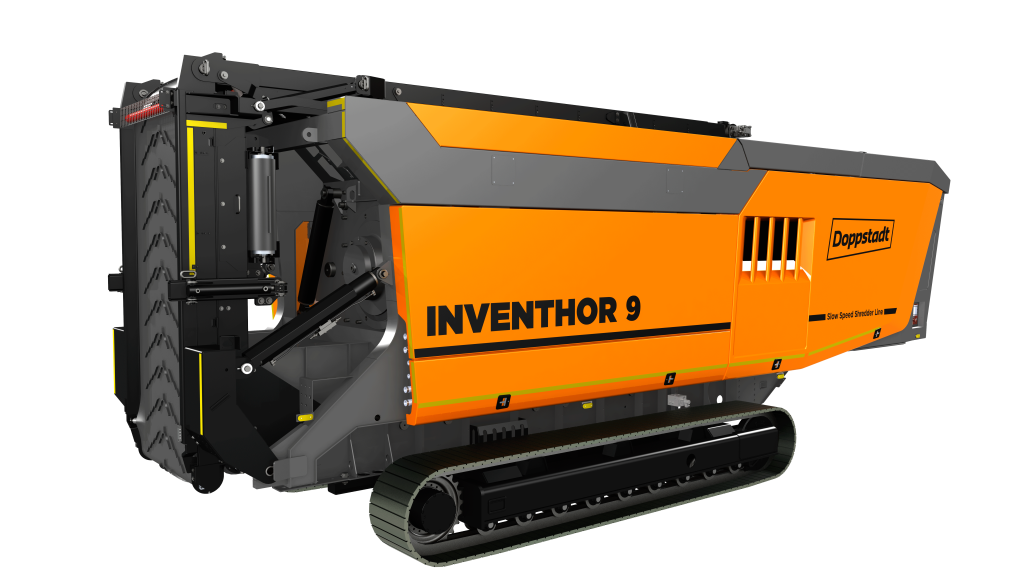

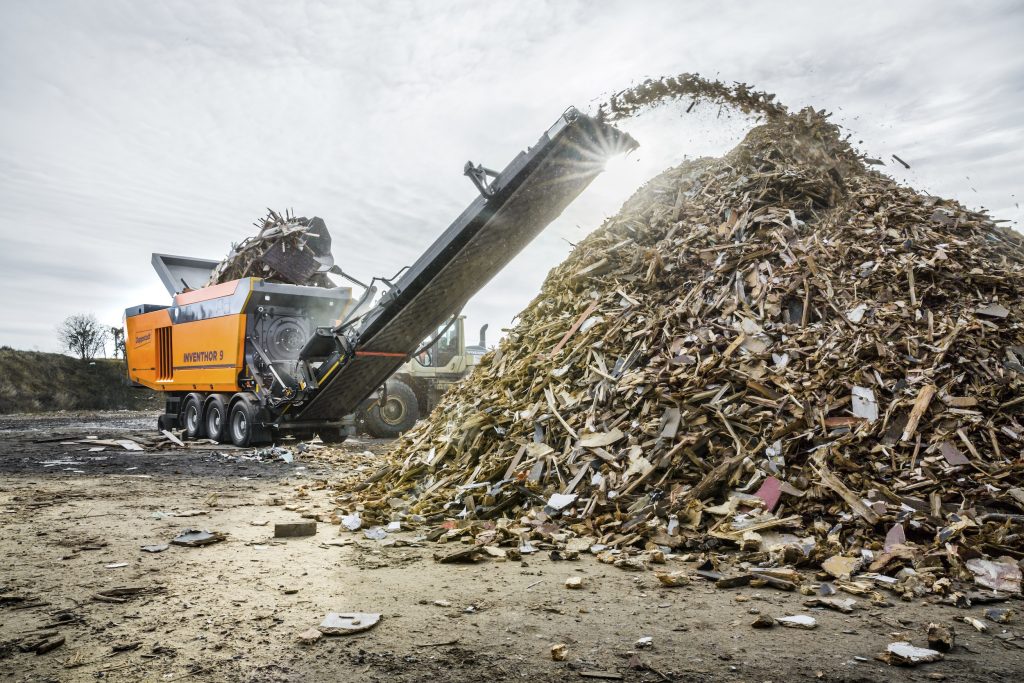

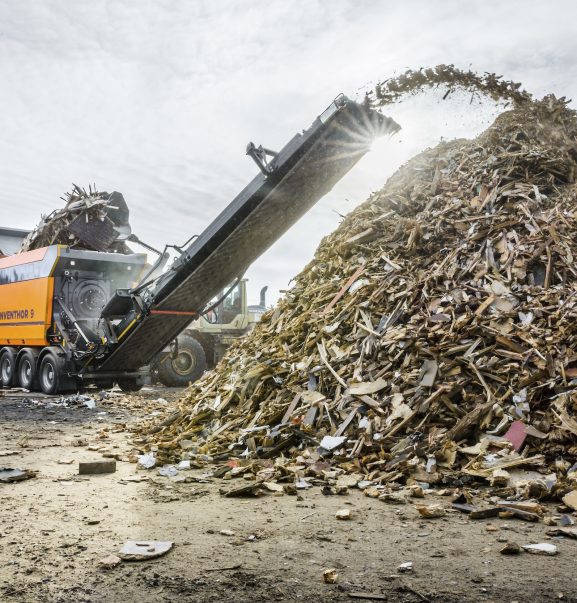

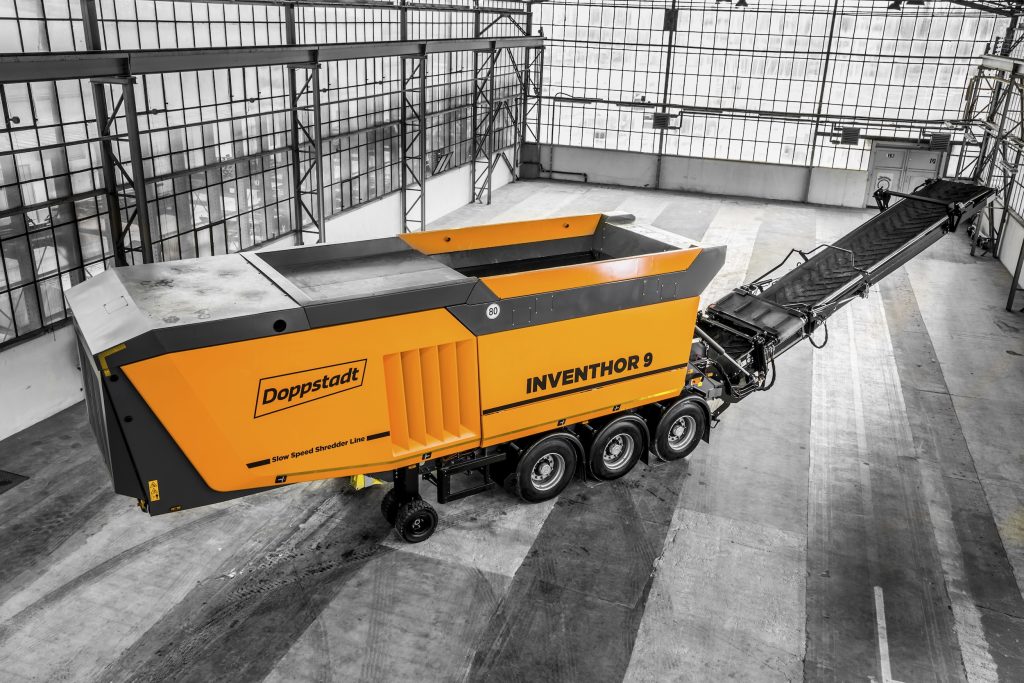

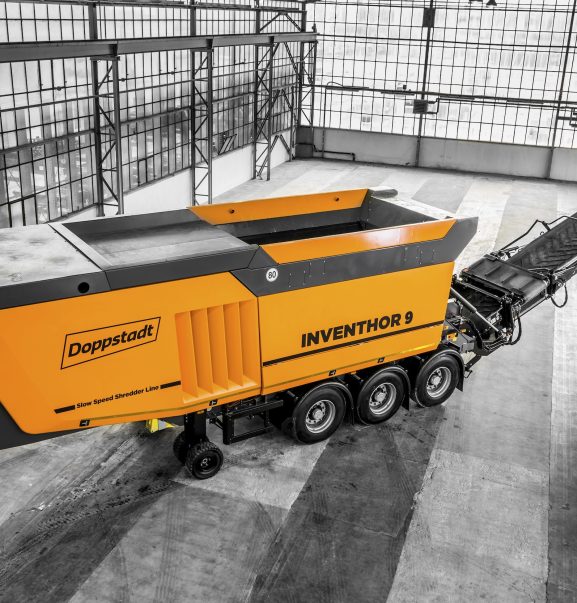

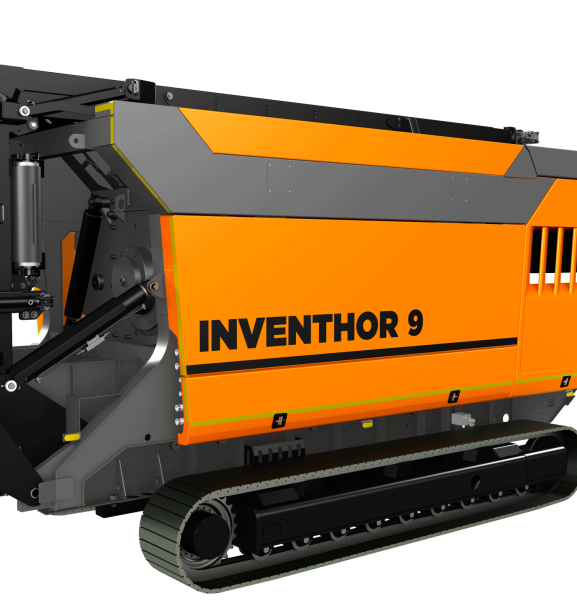

INVENTHOR 9
A true heavyweight, full power and maximum flexibility
Completely new possibilities for efficient shredding: from material feed to product removal. Innovations – VarioDirect Drive, which continuously transfers power to the shredding cylinder so that the motor always runs at optimum operating speed, or the new housing concept, which ensures optimum accessibility from all sides.
The DoppBasket system allows for even more versatile and efficient use of the machine. Using an additional comb basket (coarse or fine), various materials can be shredded without unwanted oversized pieces.
TECHNICHAL SPECIFICATIONS
- VarioDirect Drive – variable, continuous power transmission
- Starting the machine under load – starts shredding from a standing position.
- Integrated cleaning system
- Flexible shredding concept with various shredder sets
- New door and cover concept with large comb-shaped hatch for optimum accessibility and work safety
- Plug and play: after lowering the conveyor belt into working position, the machine is immediately ready for use by pressing a button
- Choice of wheeled semi-trailer (SA) or crawler chassis (K) as chassis versions, as well as various rear belt lengths (4.8 m / 7.0 m / 8.5 m) for maximum conical pile height
RECYCLABLE MATERIALS
- Wood waste
- Commercial waste
- Bulky waste
- Construction debris
- Biowaste
- Mattresses, tires, carpets, plastic pipes

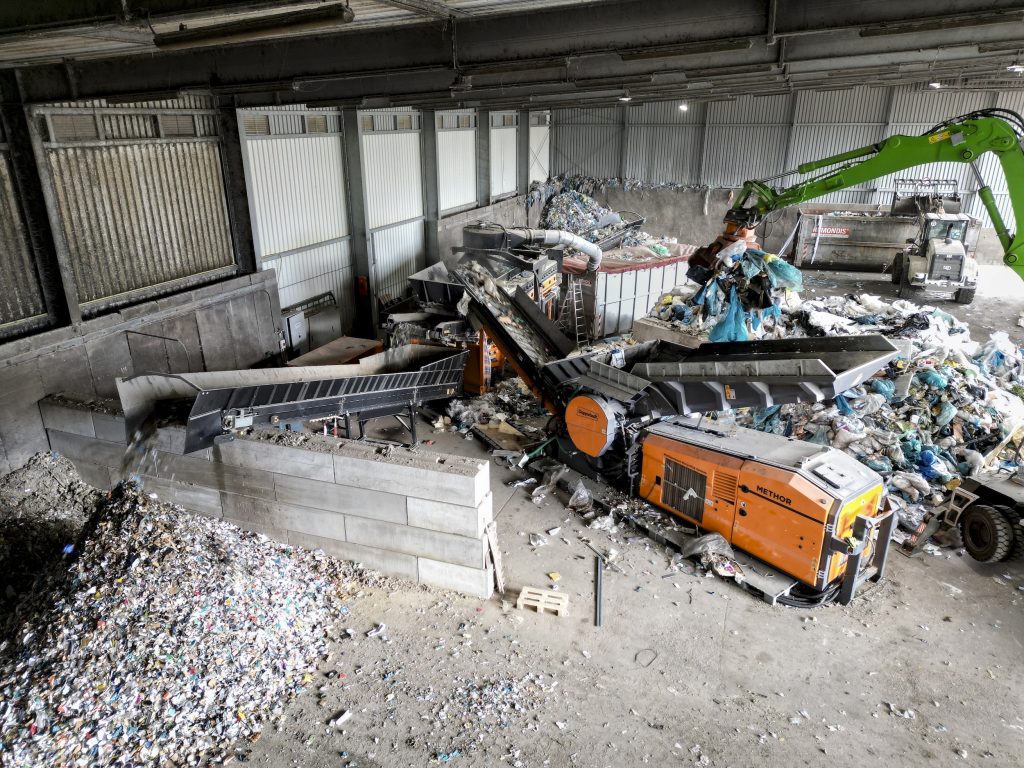

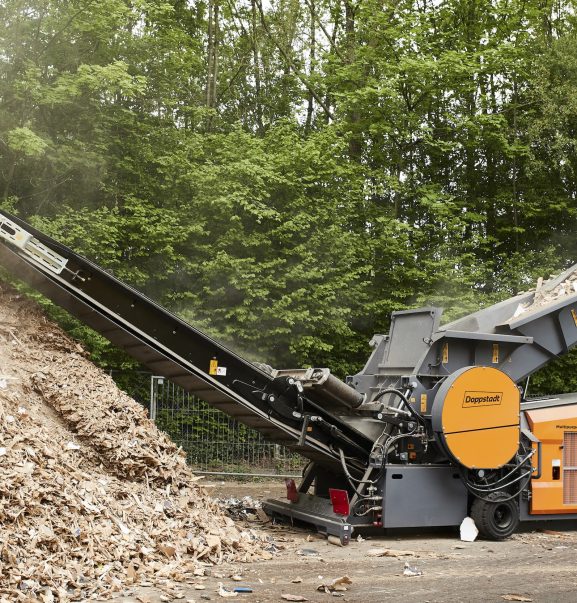

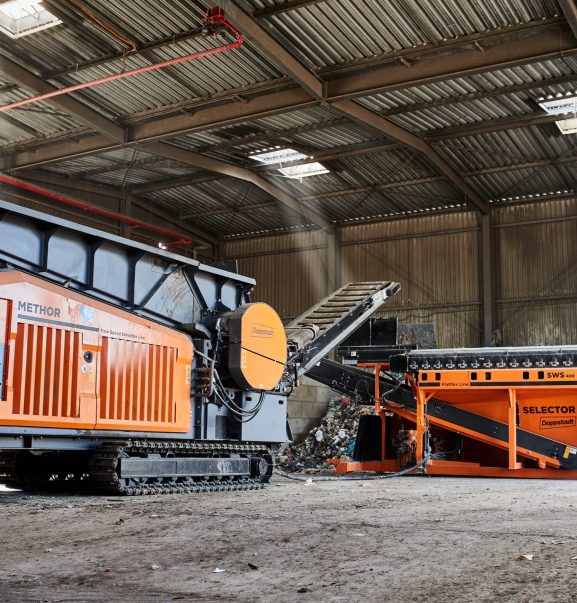

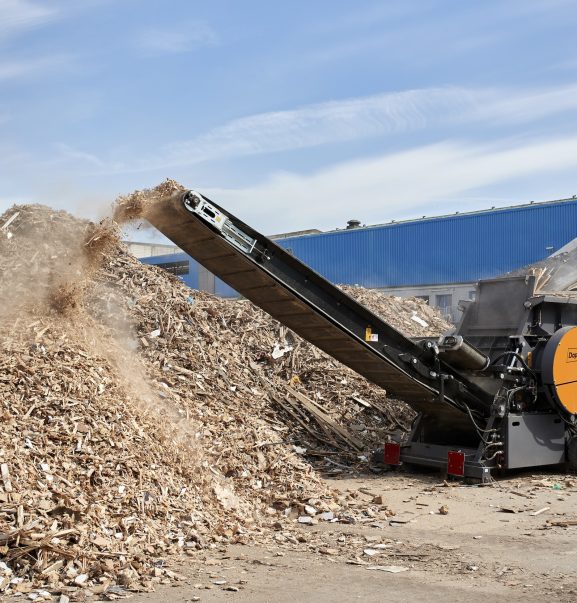

METHOR
Multifunctional waste shredding system
A flexible and multifunctional solution that includes functions such as bag opening, dosing, sorting, separating, and shredding. Maintains high performance even in the most challenging conditions.
TECHNICAL PARAMETERS
- Engine: Diesel 200kW or electric 200kW
- Number of teeth: 8-39
- Tooth depth: 60-174mm
- Mobility: as a self-propelled vehicle with tracks / hooklift solution on a truck
- Grinding systems and blade replacement: within 45 minutes
ADVANTIGES
- Resistant to damage and contamination
- Covers a wide range of applications
- Possibility to combine chains with cylindrical mesh
- Raw materials: organic waste (branches, leaves), construction waste, plastic, metal elements, rubber, textiles, mattresses
RECYCLABLE MATERIALS
- Wood waste
- Commercial waste
- Bulky waste
- Construction debris

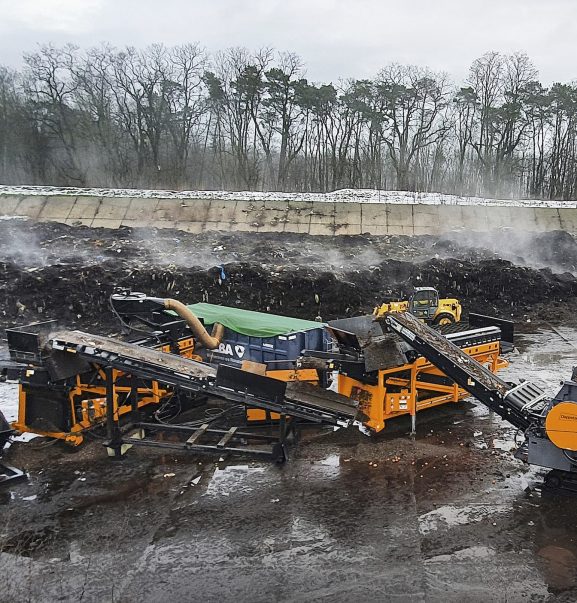

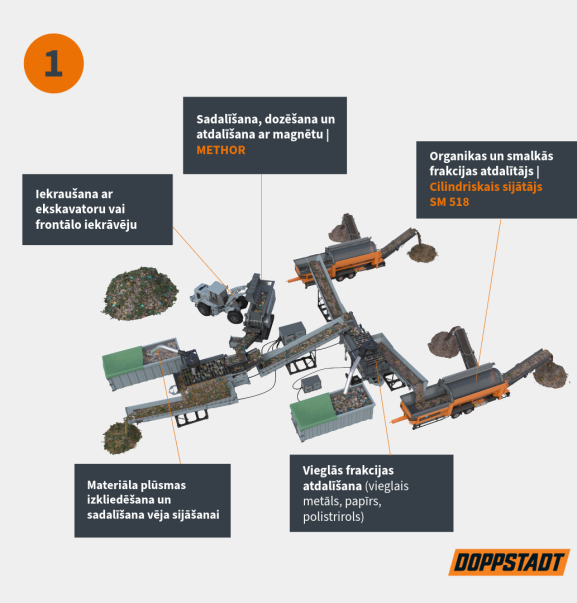

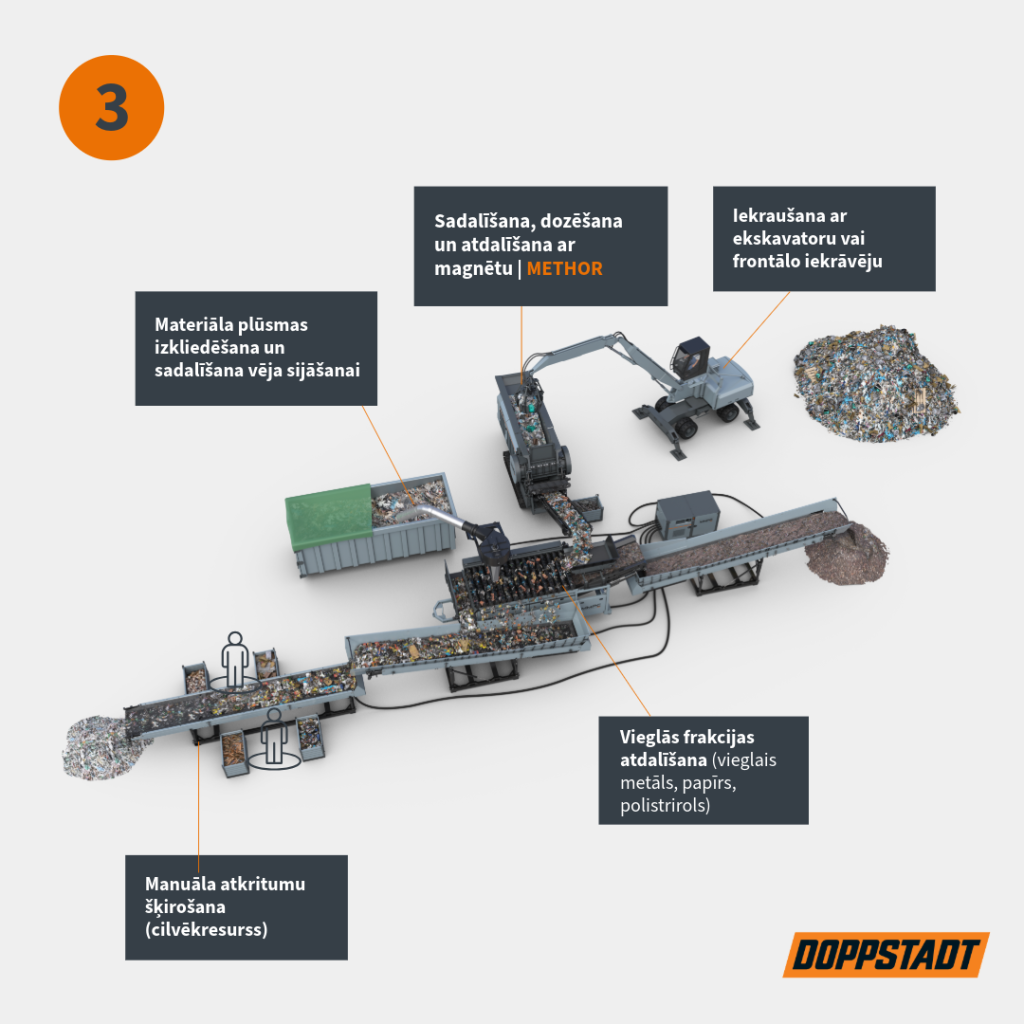

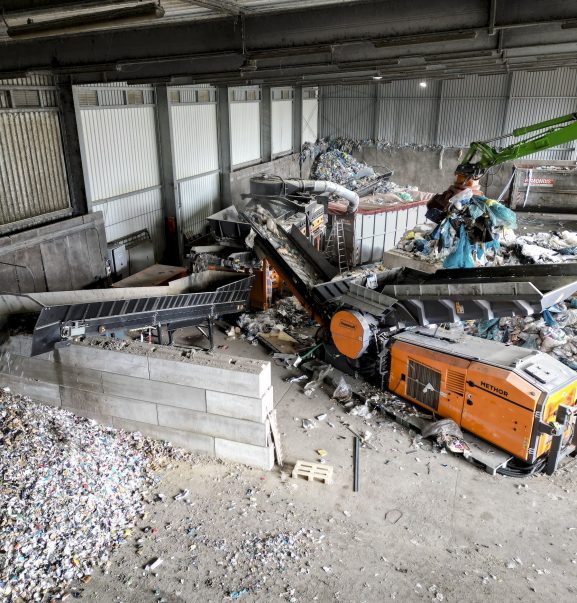

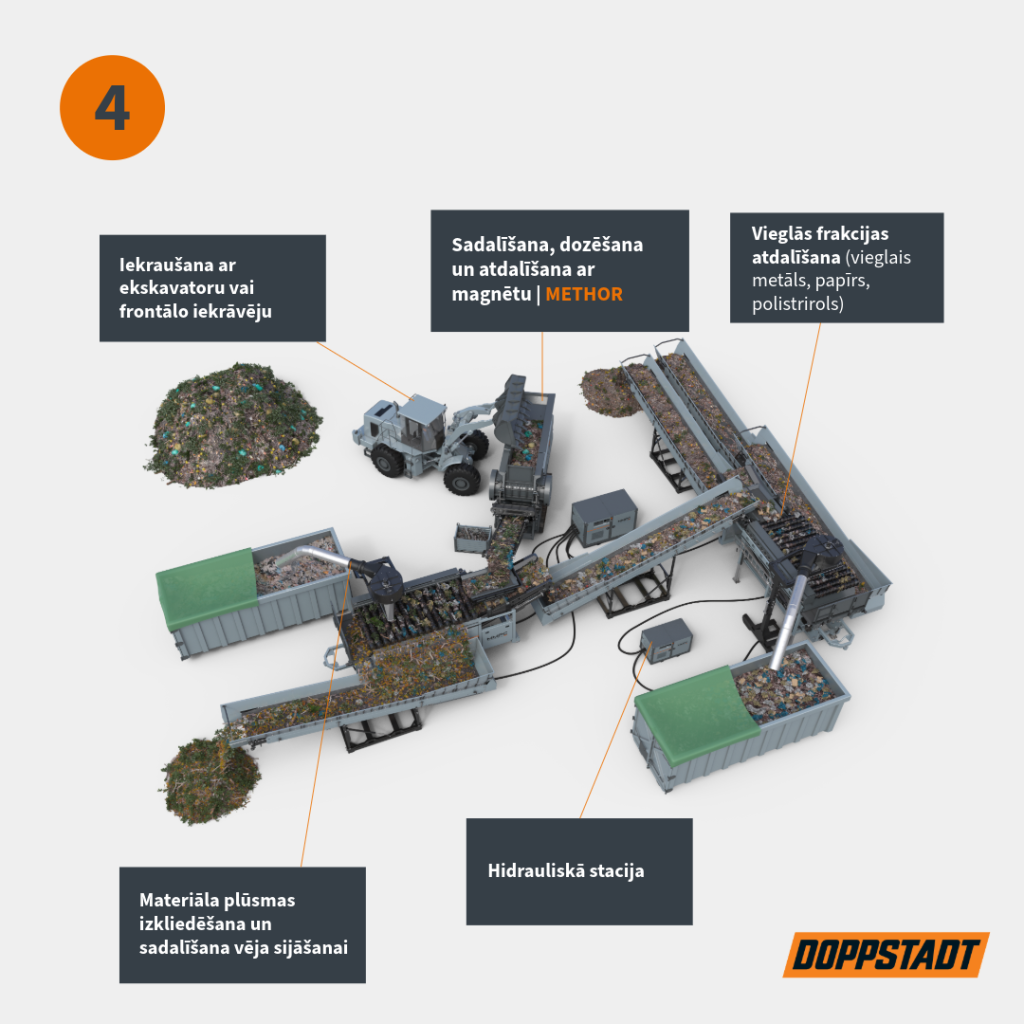

MOBILE MODULAR SORTING LINE
For sorting and recycling combustible and household waste
A well-thought-out and effective solution, equipment tailored to the specifics of your work.
The mobile modular sorting line opens up new profit opportunities and an environmentally friendly, sustainable approach to waste recycling!
LINE EQUIPMENT FUNCTIONS:
- SHREDDING
- SEPARATION OF DIFFERENT MATERIALS
- MANUAL SORTING USING EQUIPMENT
- METAL SEPARATION
- SEPERATION OF PAPER AND PLASTIC
ADVANTIGES
- Commercial waste, bio waste
- Suitable for various material flows
- Easily changeable location within the landfill site, optimal logistics of the territory
- Individually adjustable number and type of devices
- Fully electric / autonomous with diesel engine / combined (electric + diesel)
SORTING LINE
- Reinforced concrete processing roller

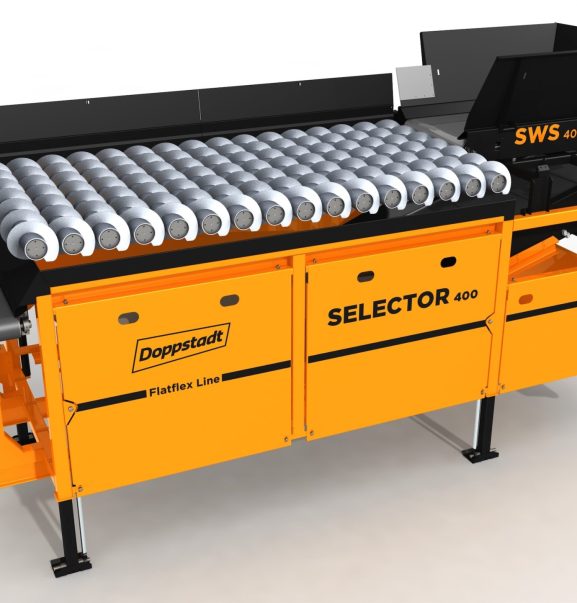

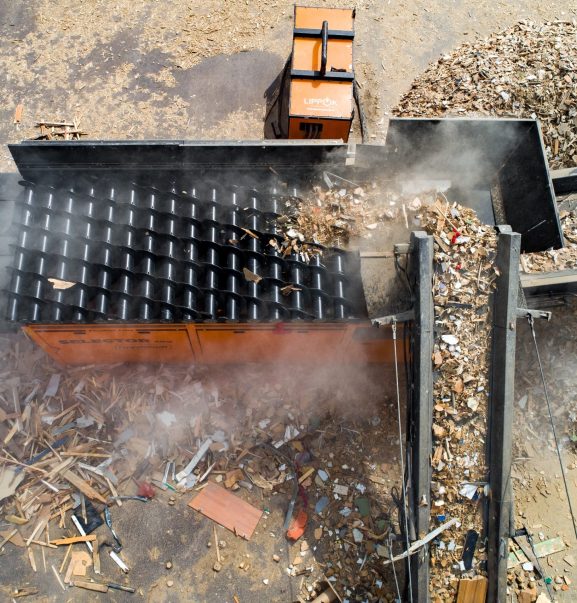

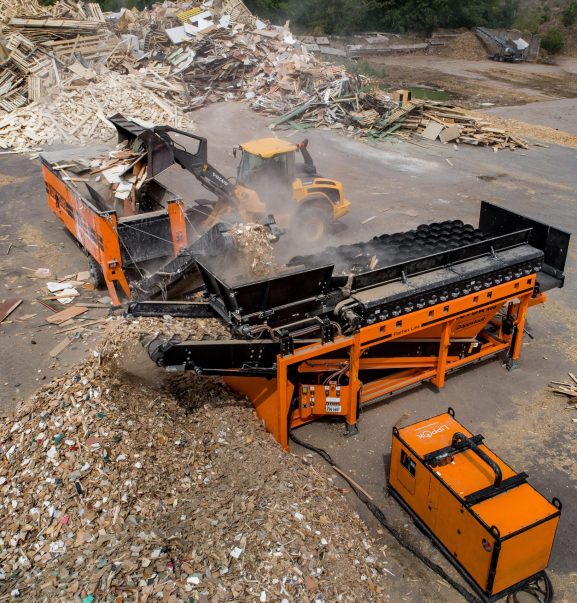

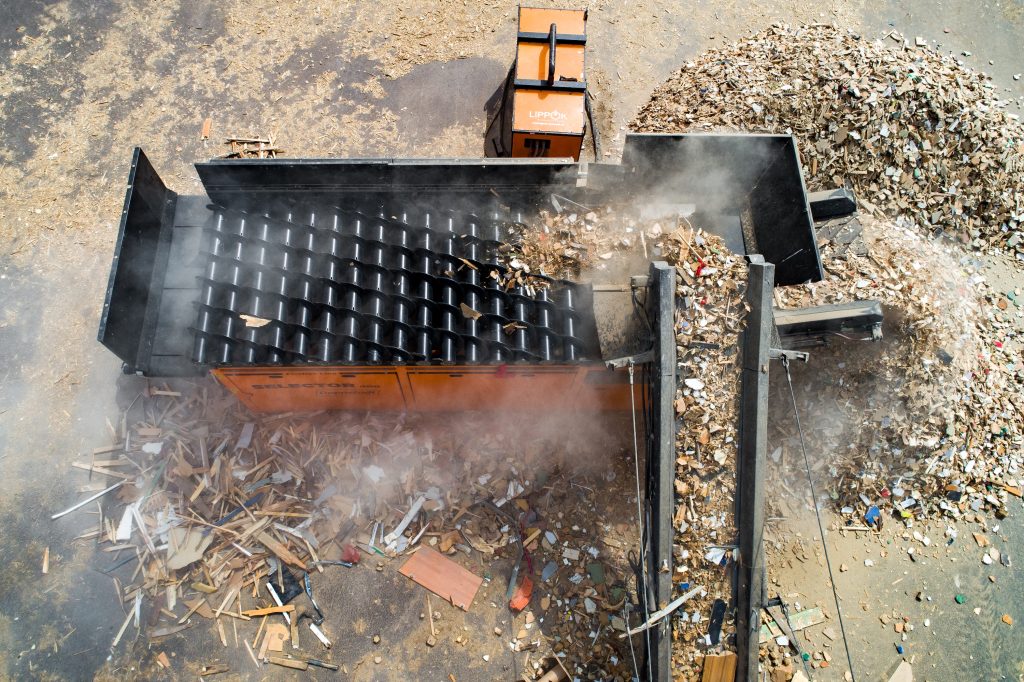

- SWS 400 with 2 wind suction cups and outlet roller magnet – (0-100)
- Drum-type sieve
- From the wind suction plastic pipe to the container
- Mobile conveyor DMB 8500
- Hydraulic hose kit
- Cylindrical sieve SM 518
- STOP emergency stop kit
CRUSHING

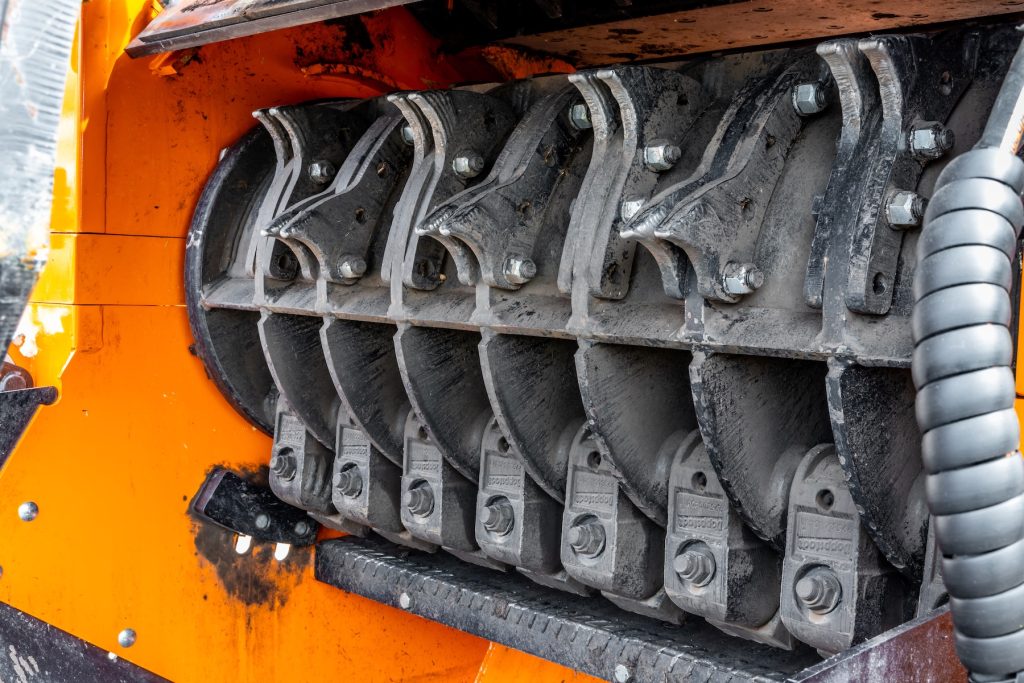

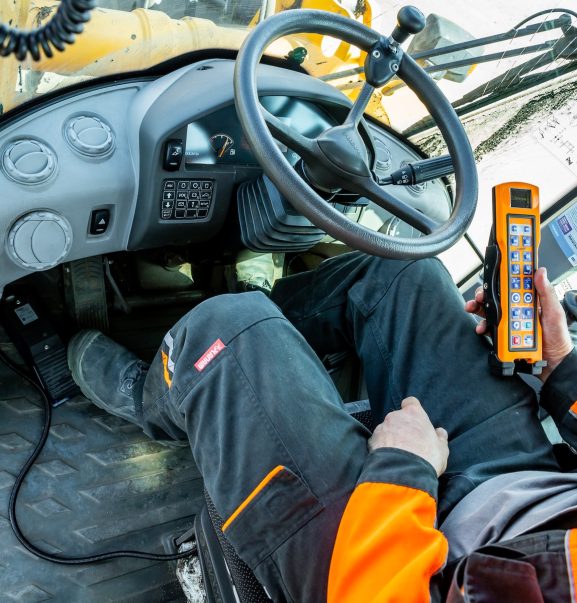

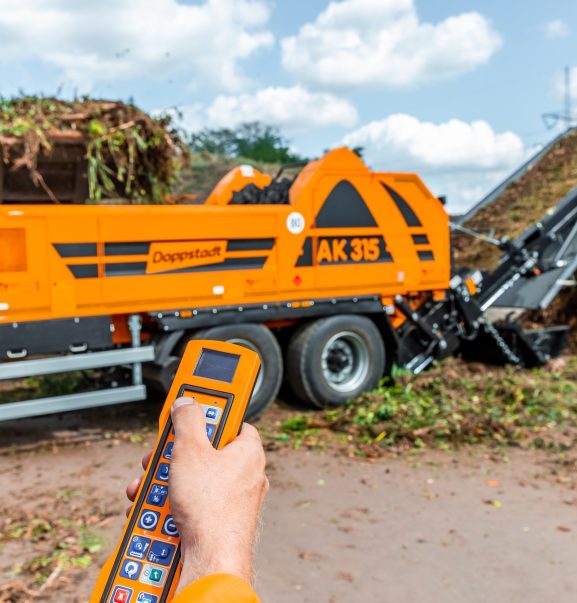

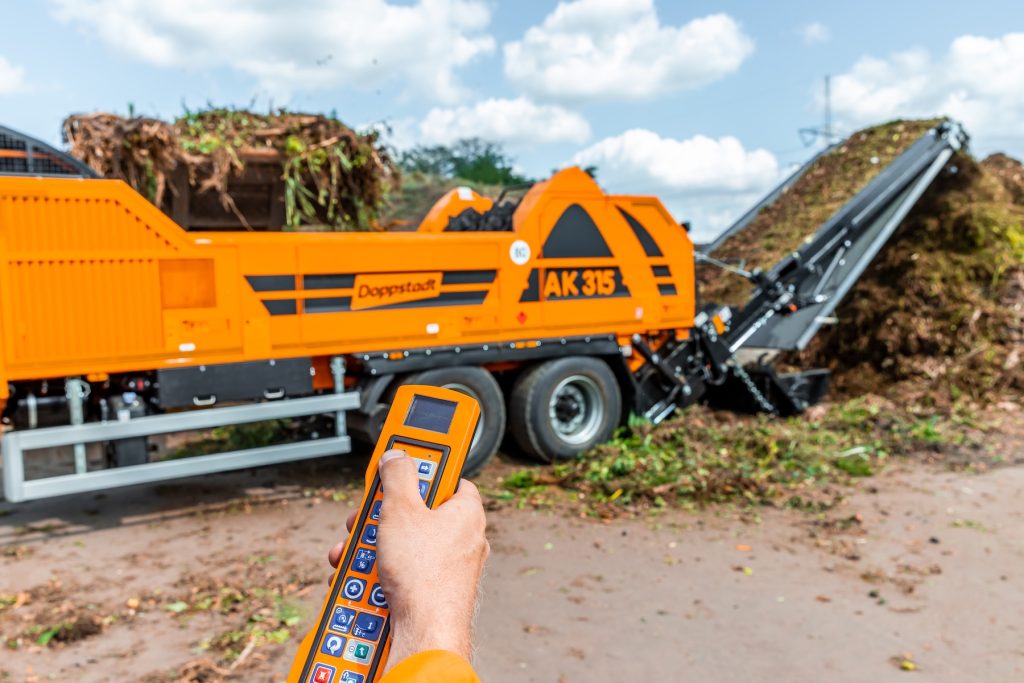

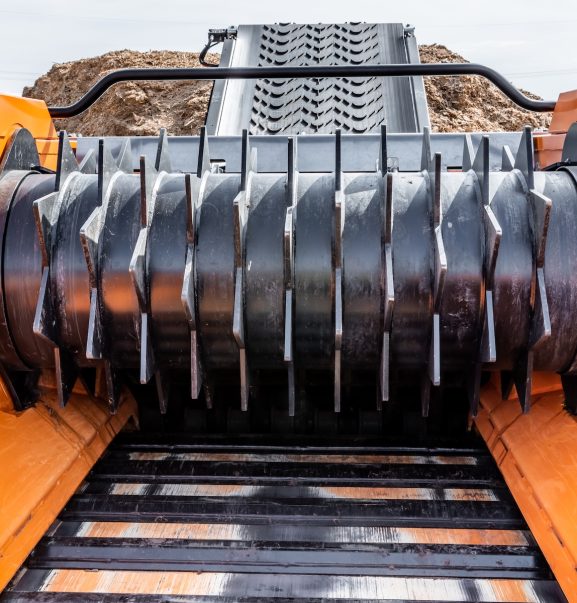

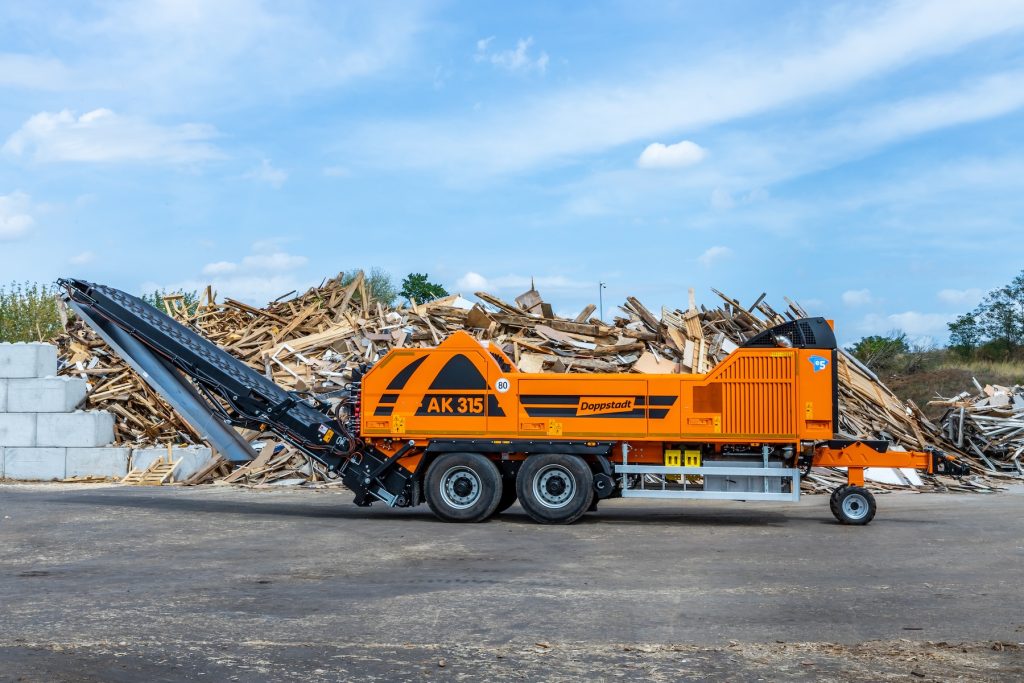

AK315
Universal mobile crusher for a wide range of tasks
High profit margins and greater productivity in wood waste processing. Suitable for mobile and stationary solutions, high output quality and lower costs per ton.
TECHNICHAL SPECIFICATIONS
-
230 kW MTU engine, compliant with EURO V standards
-
Easily interchangeable blades, depending on the material to be shredded
-
Unloading conveyor length 6 m
-
Remote control
RECYCLABLE MATERIALS
- Bulky wood waste
- Industrial wood waste
- Wood processing waste from manufacturing (furniture, flooring/panel manufacturing)
- Wooden packaging (pallets, boxes, etc.)
- Construction debris
- Doors, windows, construction timber
PRODUCTS TO BE OBTAINED
- Biomass for combustion in power plants
- Materials in the wood products industry
- Mulch and interlayer for composting

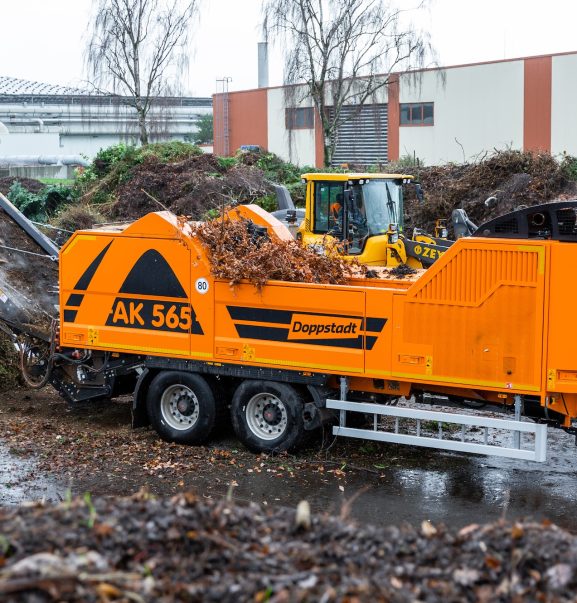

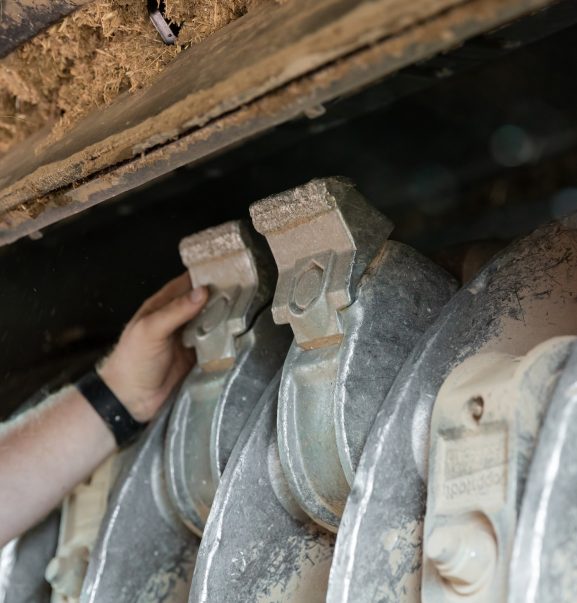

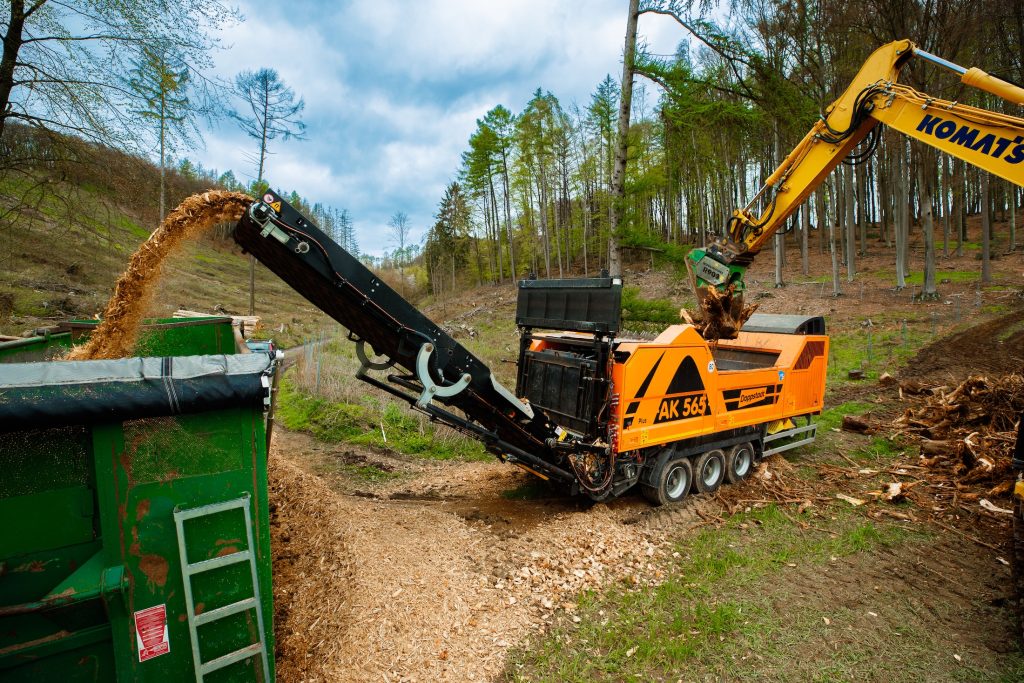

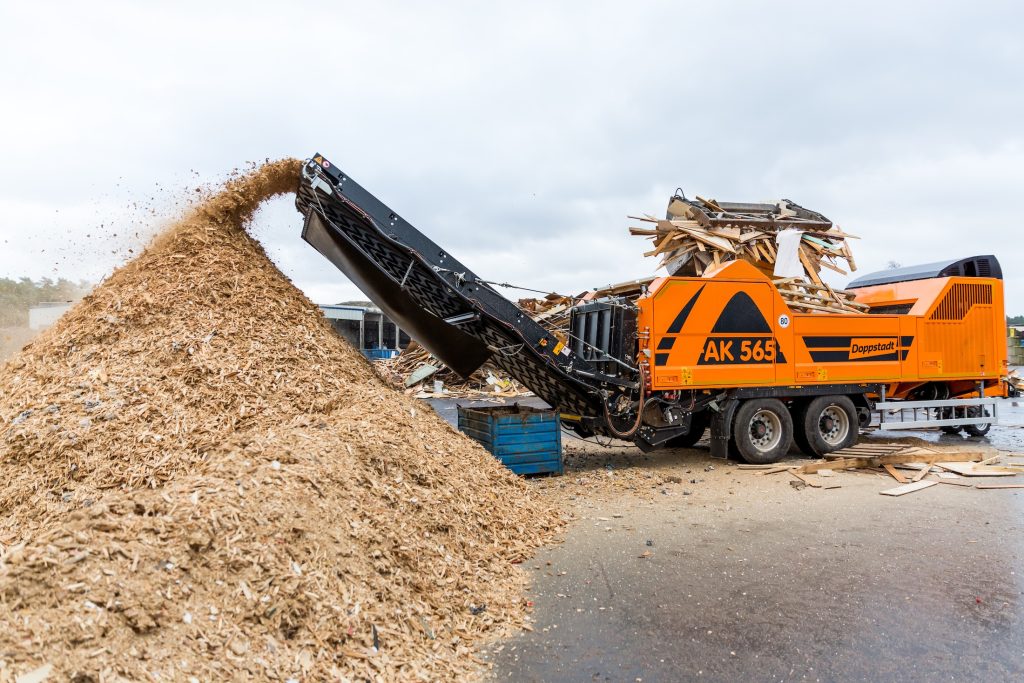

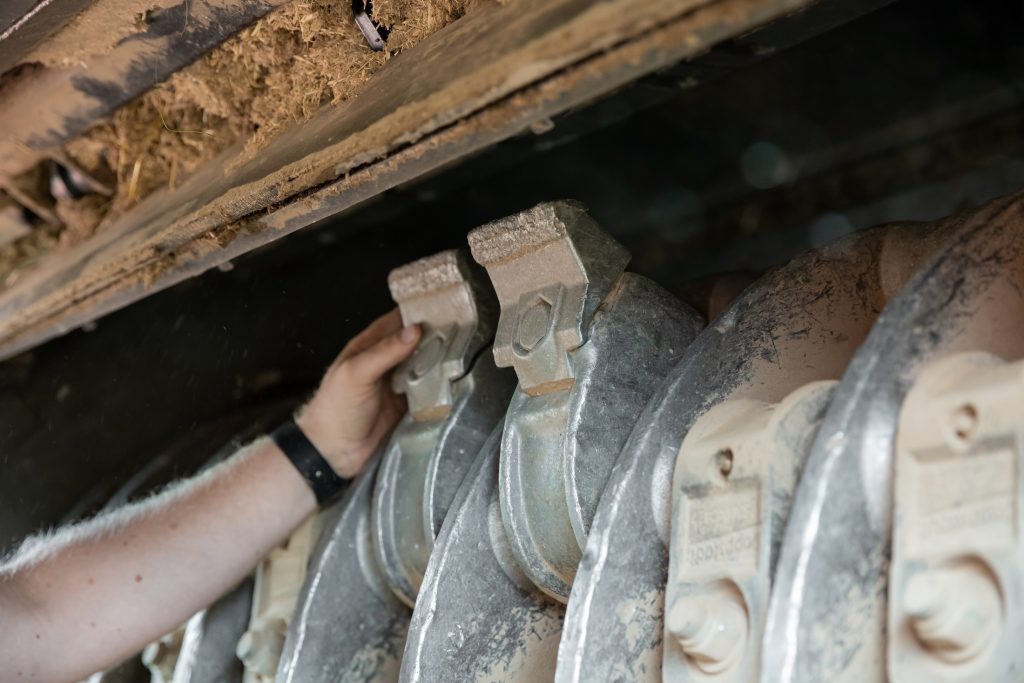

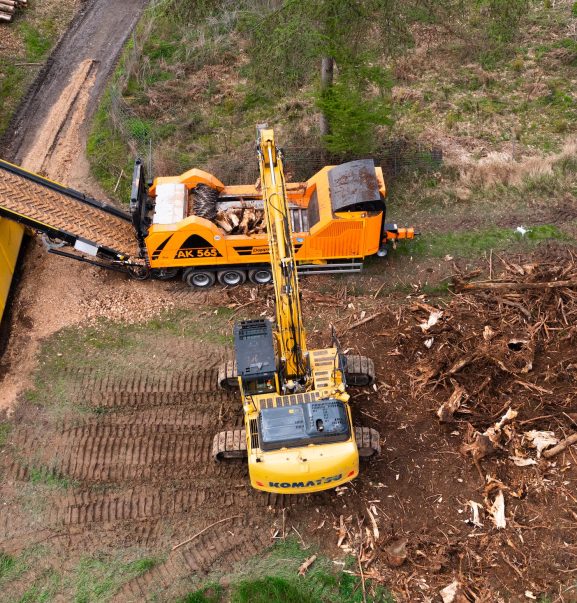

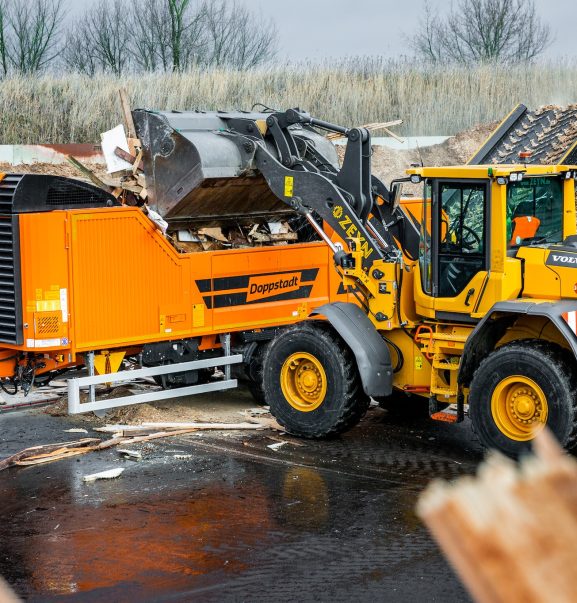

AK 565
Powerful universal mobile crusher for a wide range of tasks
High profit margins and increased productivity in wood waste processing. Flexible and versatile. It features a lowerable rear discharge conveyor for improved ease of maintenance. The new engine also complies with the latest EURO V emission standards.
TECHNICHAL SPECIFICATIONS
- Separate metal feed chain and oscillating feed roller drive
- Freely swinging levers, continuous crushing, no impurities
- Lowerable rear conveyor 4m or 6m
- Easily replaceable fine grinding screen (30-400 mm mesh width)
RECYCLABLE MATERIALS
- Bulky and industrial wood waste
- Wood processing waste from manufacturing (furniture, flooring/panel manufacturing)
- Wooden packaging (pallets, boxes, etc.)
- Construction debris
- Commercial waste
- Compost
PRODUCTS TO BE OBTAINED
- Biomass for combustion in power plants
- Materials in the wood products industry
- Mulch and interlayer for composting

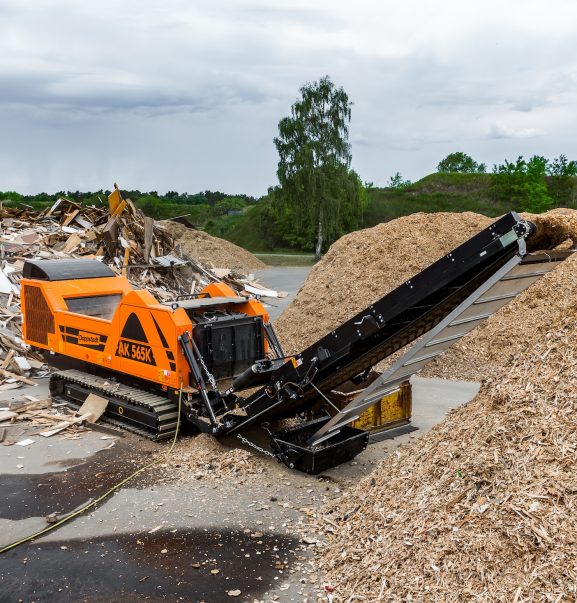

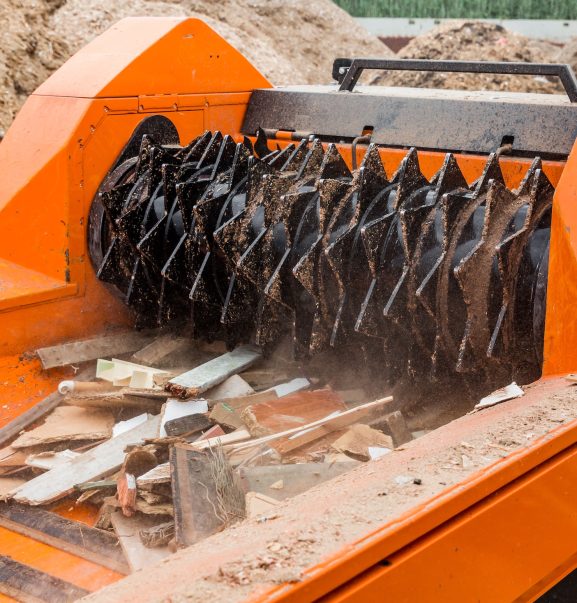

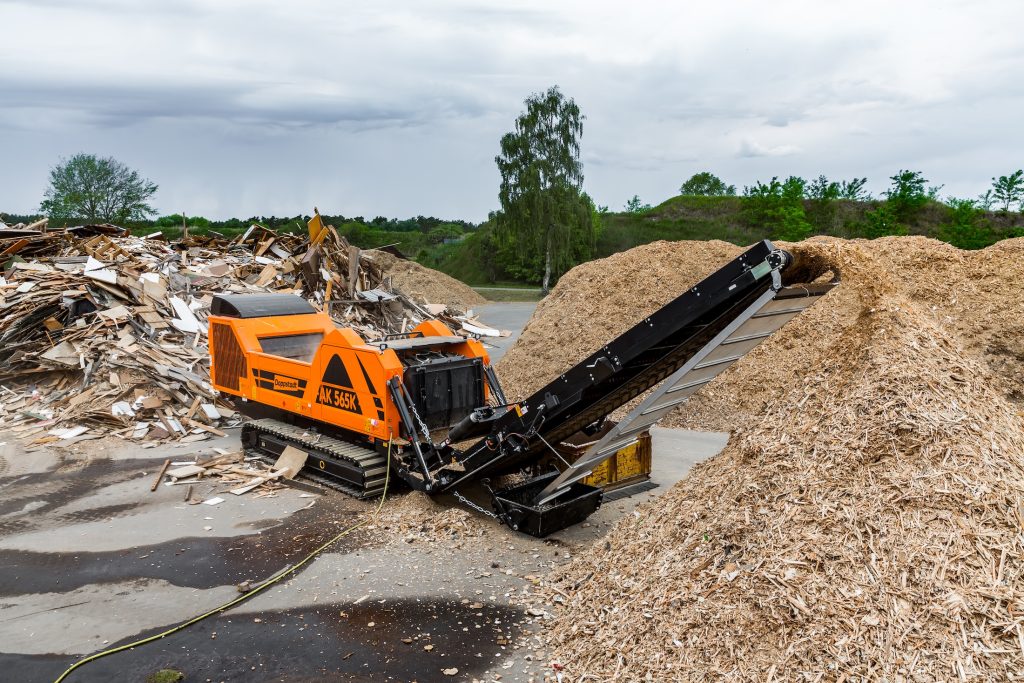

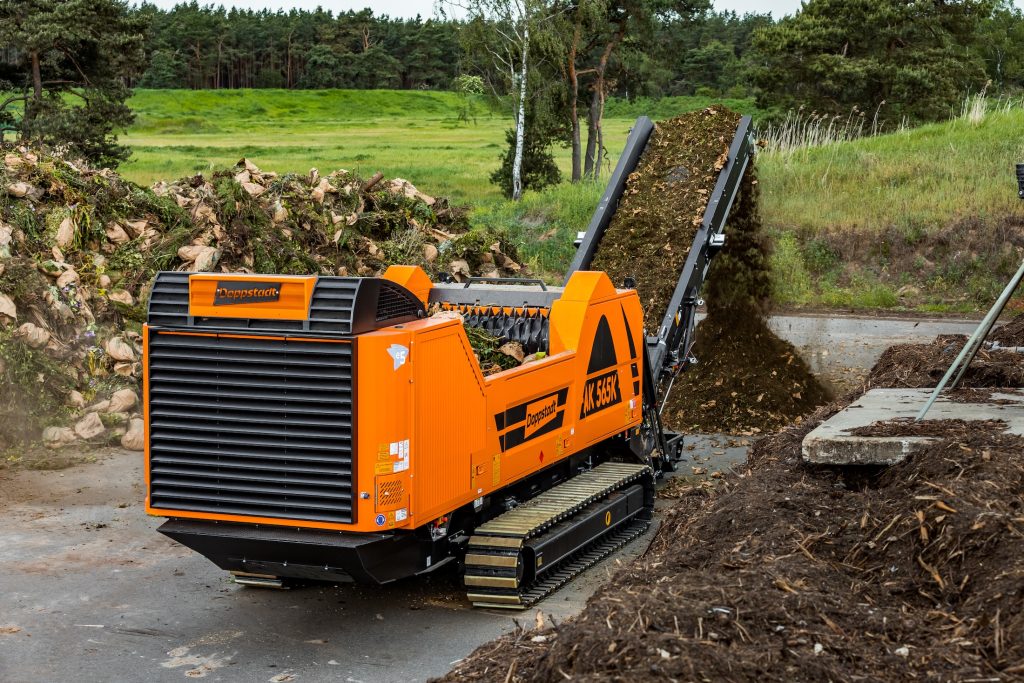

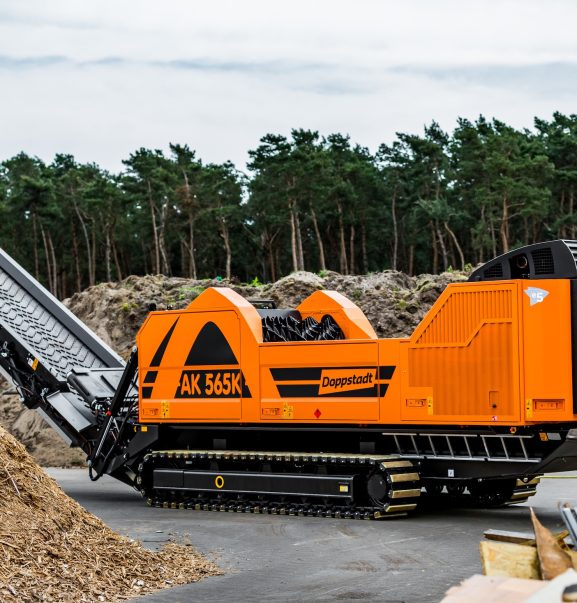

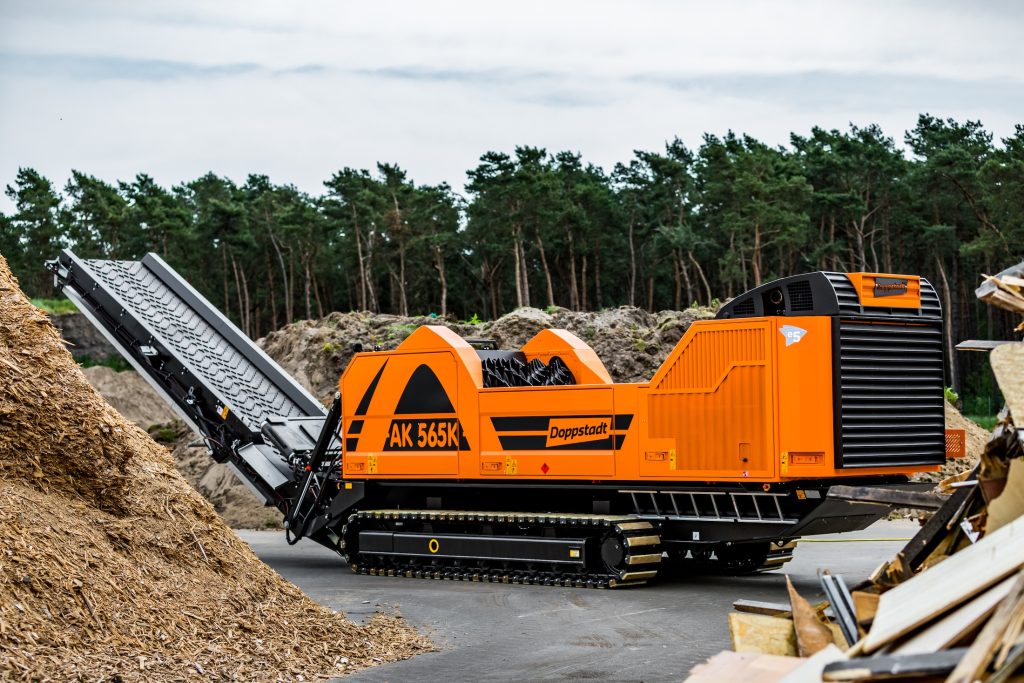

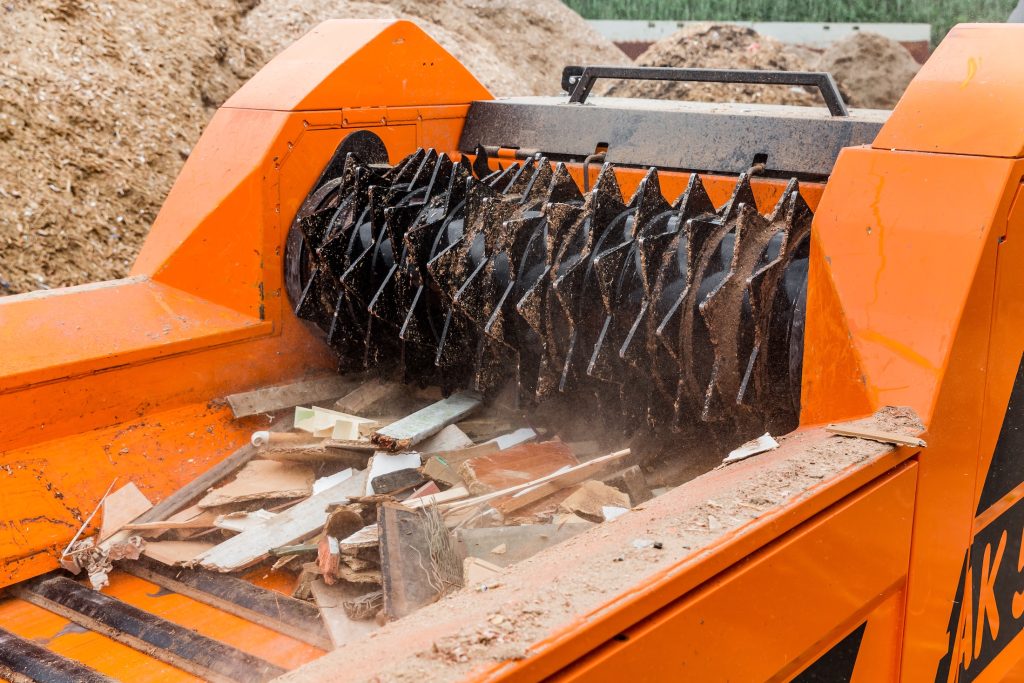

AK 565 K
Powerful universal mobile crusher for harsh conditions
With a crawler chassis that is also available in an off-road version, the AK 565 K can also be used on uneven terrain. The lowerable rear belt facilitates maintenance.
TECHNICHAL SPECIFICATIONS
- MTU engine, 390 kW, EURO V
- Standard – crawler version, off-road option available
- Adjustable rear belt
- Decentralized electronics and a new radio system for easier diagnostics
- Remote control
- Rear conveyor 7.5 m
- Stainless steel exhaust system
RECYCLABLE MATERIALS
- Bulky wood waste
- Wooden packaging (pallets, boxes, etc.)
- Green and organic waste
- Compost
- Shredding of trunks and roots
PRODUCTS TO BE OBTAINED
- Biomass for combustion in power plants
- Materials in the wood products industry
- Mulch and interlayer for composting

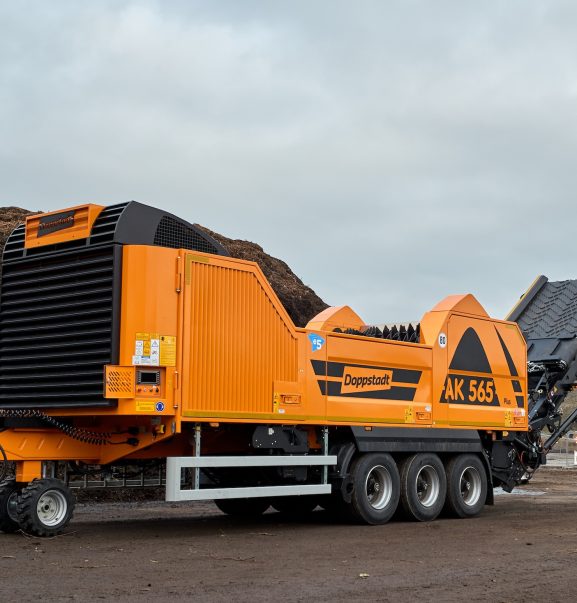

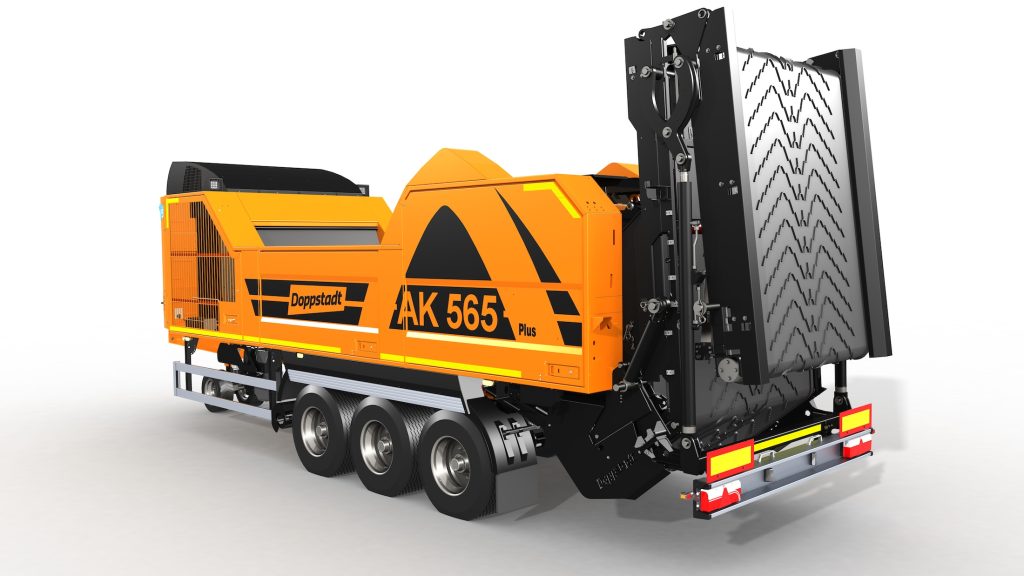

AK 565 PLUS
Mobile crusher with three-part rear conveyor
The mobile 3-axle AK 565 Plus is equipped with a new engine that complies with EURO V emission standards. The 6 m long rear conveyor provides enormous flexibility when it comes to unloading.
TECHNICHAL SPECIFICATIONS
- MTU engine, EURO V
- Three-part rear conveyor – unloading up to 6 m, at a height of 4.2 m
- Remote control
- Individual metal feed chains
RECYCLABLE MATERIALS
- Bulky wood waste
- Wooden packaging (pallets, boxes, etc.)
- Green and organic waste
- Compost
- Shredding of trunks and roots
PRODUCTS TO BE OBTAINED
- Biomass for combustion in power plants
- Materials in the wood products industry
- Mulch and interlayer for composting

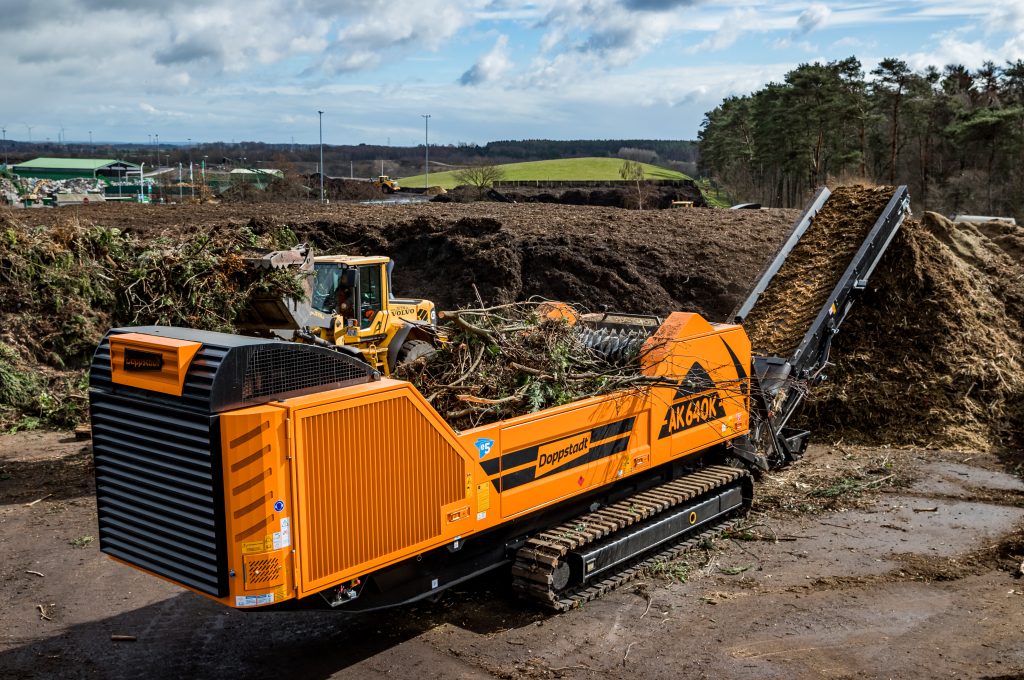

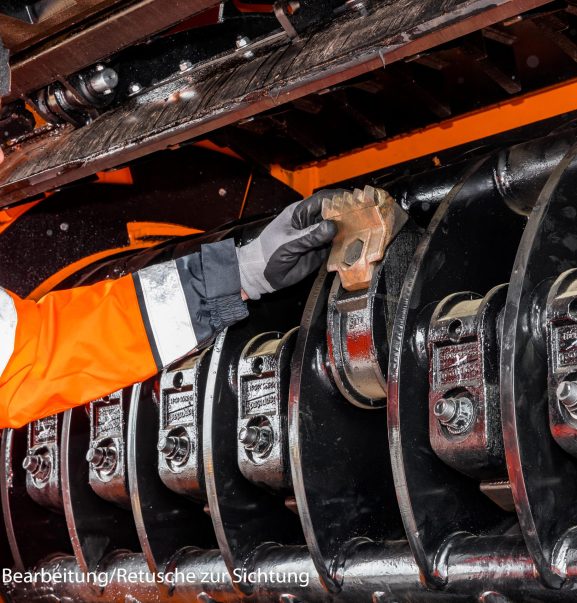

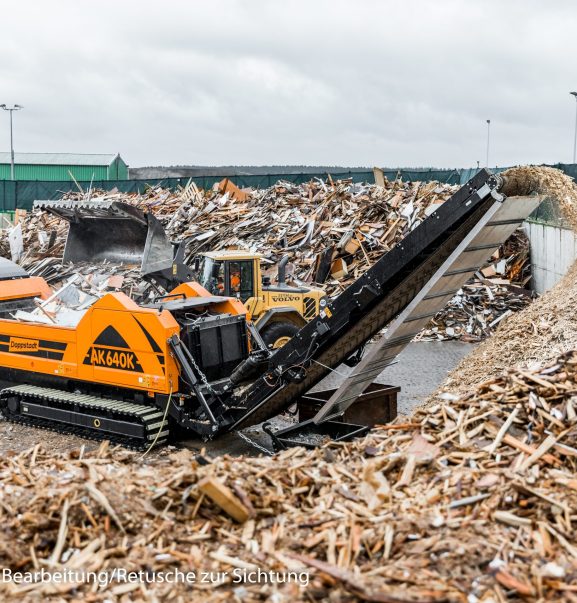

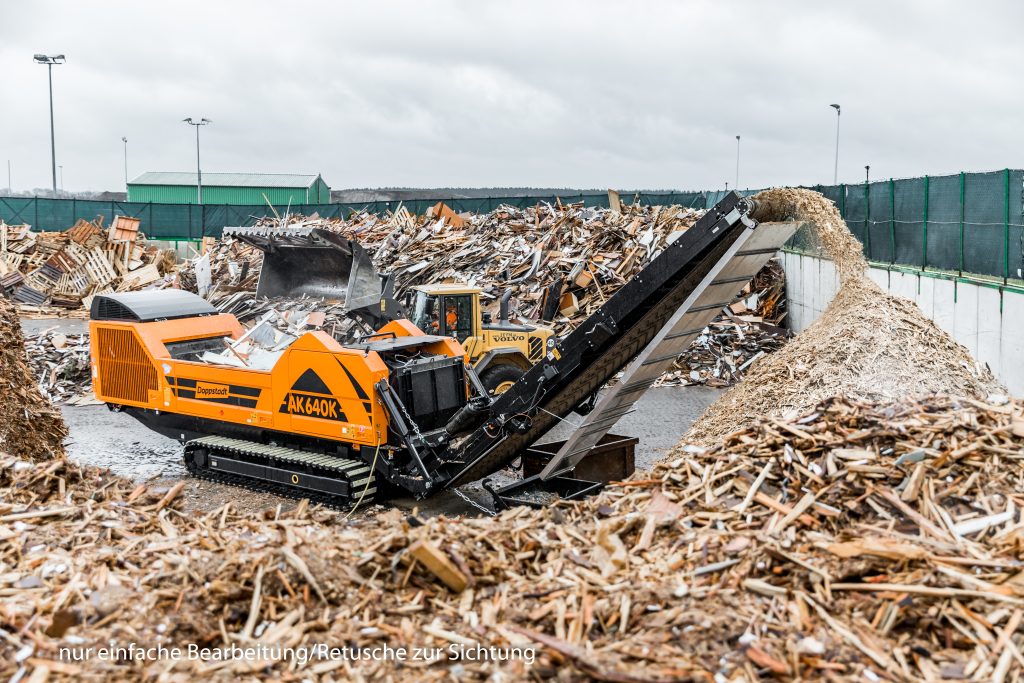

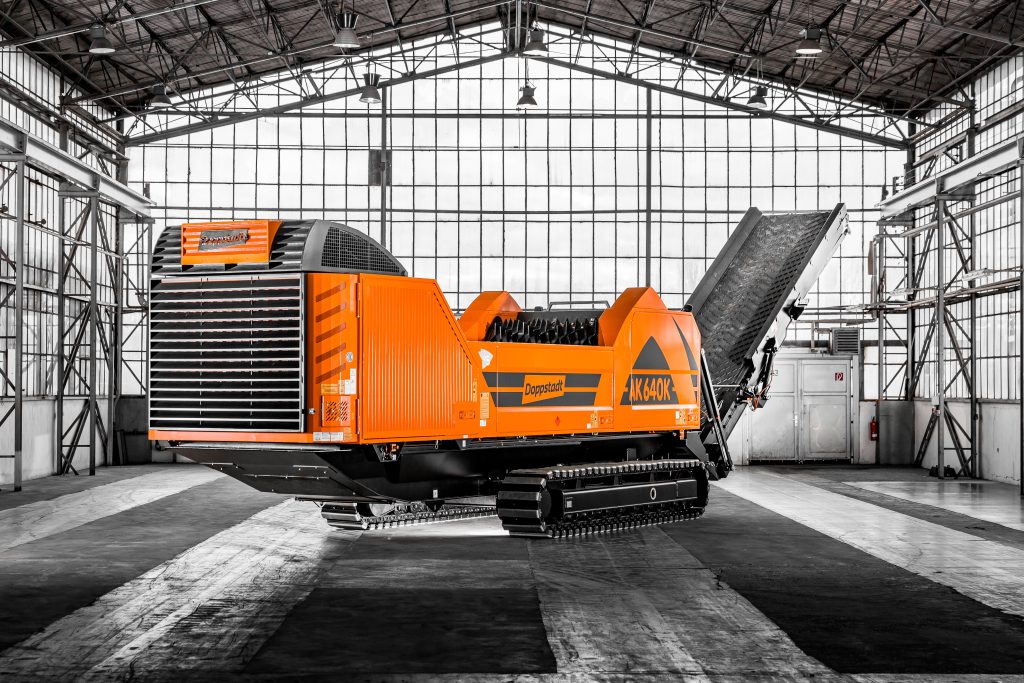

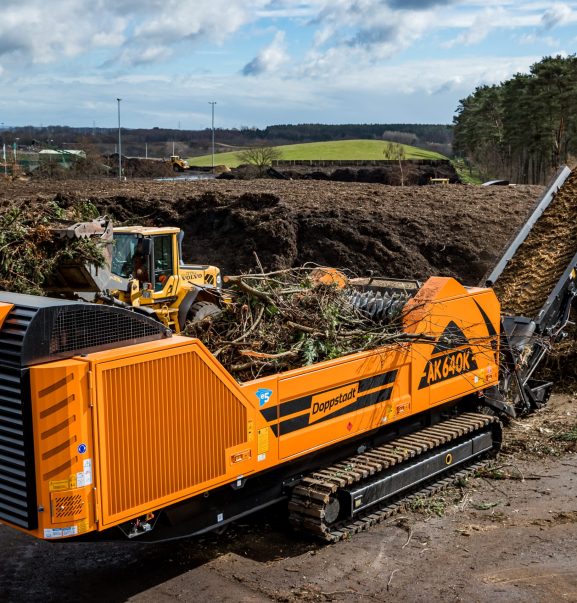

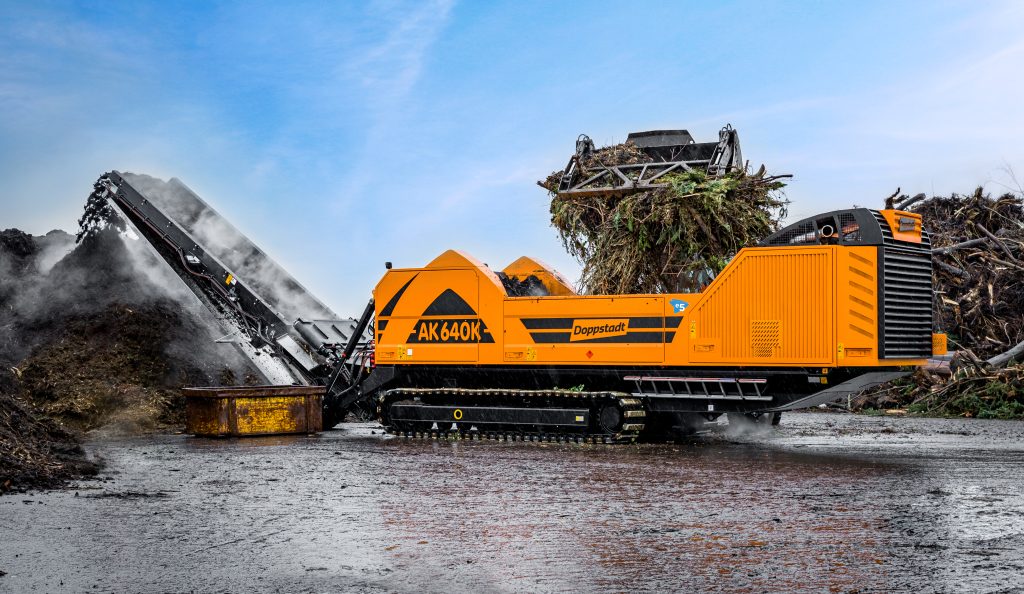

AK 640 K
For the highest demands and big tasks
A compact shredder with a new, even more powerful main drive, a durable chain drive and a 7.5 m long rear conveyor with a discharge height of over 5 m.
TECHNICHAL SPECIFICATIONS
- MTU engine, 480 kW, EURO V
- Available in off-road chassis version
- 3.5 m wide filling tank, 2.2 m loading height
- Unloading conveyor 7.5 m long, 1.5 m wide, 5 m emptying height
- Separate scraper floor drive
- Remote control
RECYCLABLE MATERIALS
- Bulky wood waste
- Wooden packaging (pallets, boxes, etc.)
- Green and organic waste
- Compost
- Shredding of trunks and roots
PRODUCTS TO BE OBTAINED
- Biomass for combustion in power plants
- Materials in the wood products industry
- Mulch and interlayer for composting

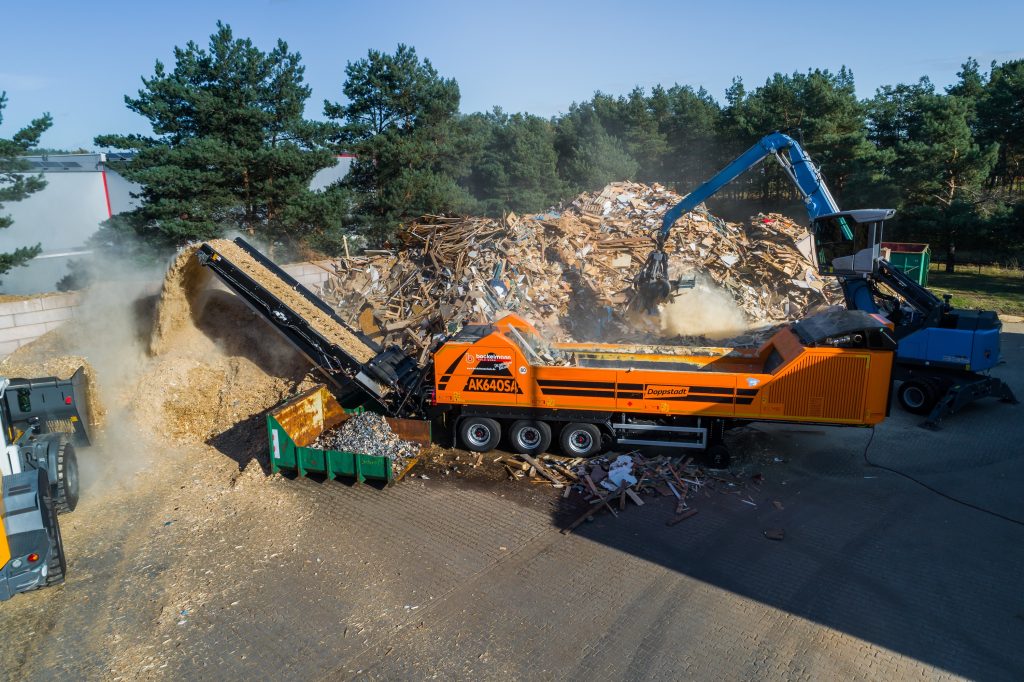

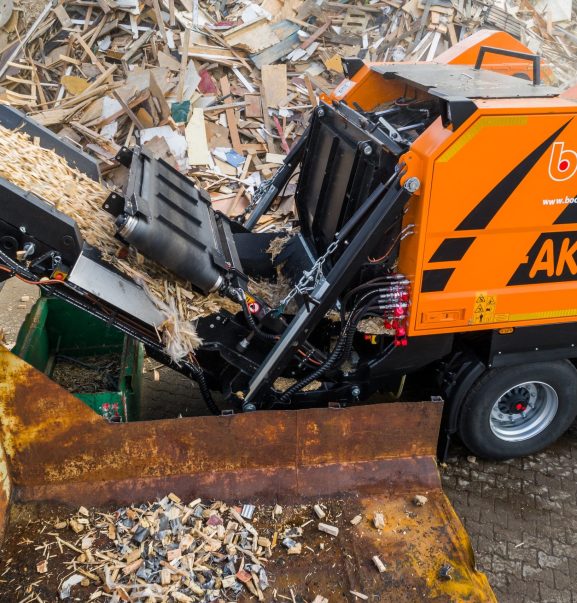

AK 640 SA
The perfect combination of performance and efficiency
The AK 640 SA is the flagship of the AK series with maximum throughput thanks to its huge feed hopper and modern engine technology. At the same time, it is just as easy to transport as the smaller models. Continuous shredding thanks to load sensor material feed, impervious to obstacles thanks to freely oscillating wings.
TECHNICHAL SPECIFICATIONS
- MTU 6R 1500 diesel engine
- Controlled material feed system, according to load
- Feed hopper almost 6m
- The length of the discharge conveyor is 7.5 m, width 1.5 m
- Spray height 5 m, which can also be lowered to the ground
- Easy to move: 12 m long, 2.5 m wide
RECYCLABLE MATERIALS
- Bulky wood waste
- Industrial wood waste
- Waste from wood processing, e.g. furniture manufacturing, floor/panel manufacturing
- Wooden packaging (pallets, boxes, cable drums)
- Construction and demolition wood, such as solid wood, chipboard, formwork
- Doors, windows, construction timber, railway sleepers
- Wood waste from gardening and landscaping
- Wood waste from waste treatment facilities
PRODUCTS TO BE OBTAINED
- Biomass for combustion in power plants
- Materials in the wood products industry
- Mulch and interlayer for composting
LARGE-SCALE GRINDING

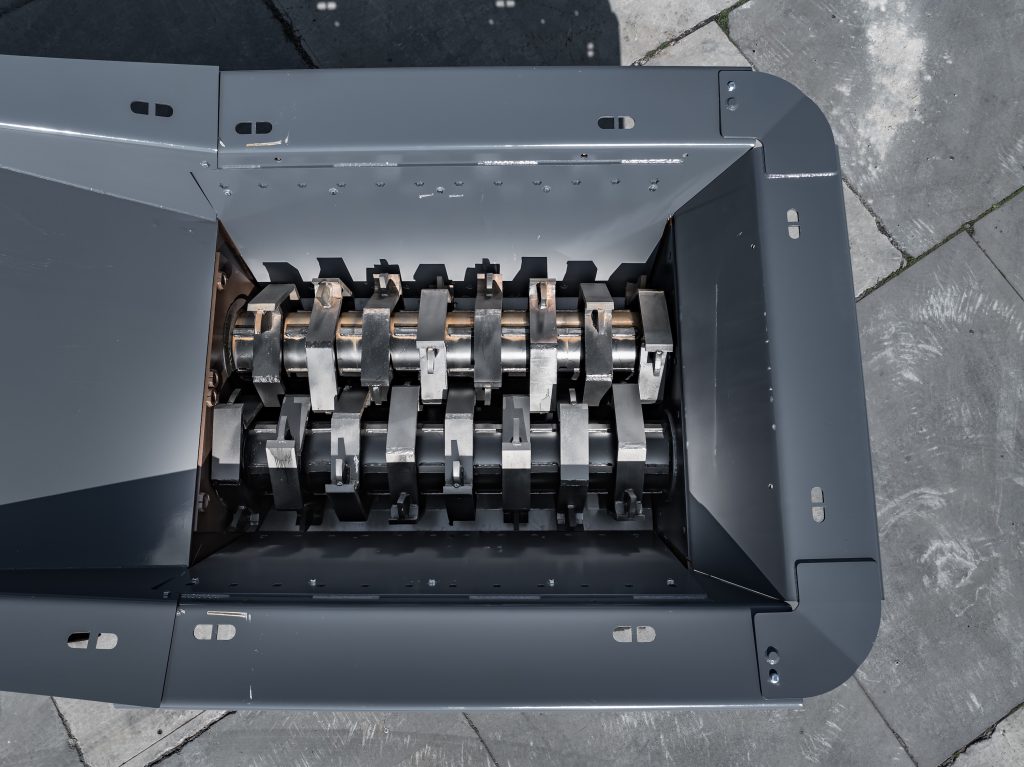

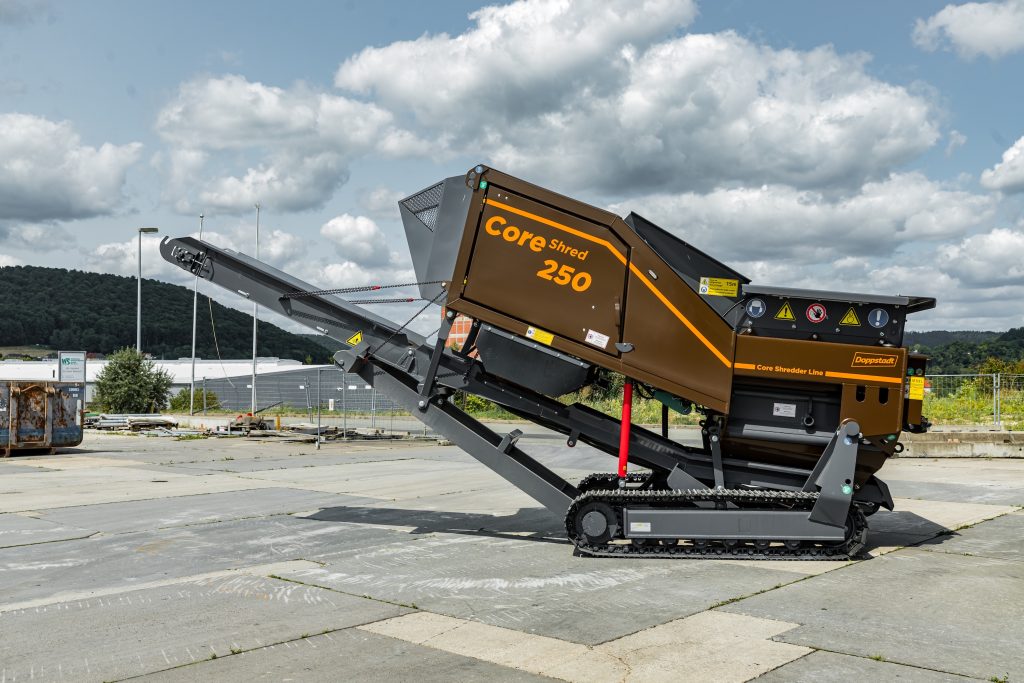

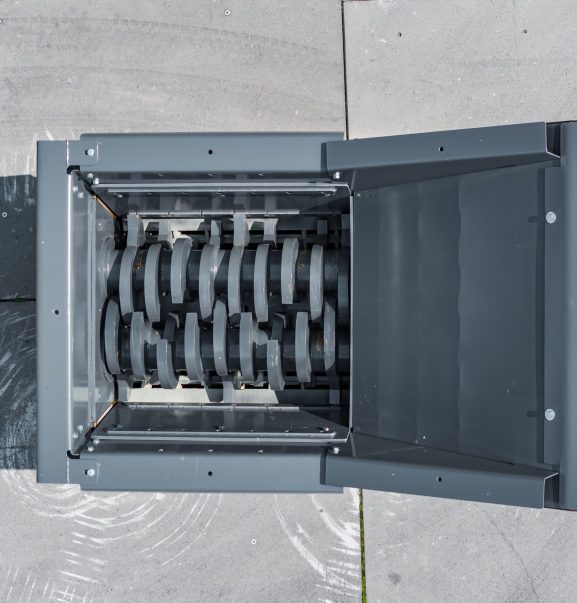

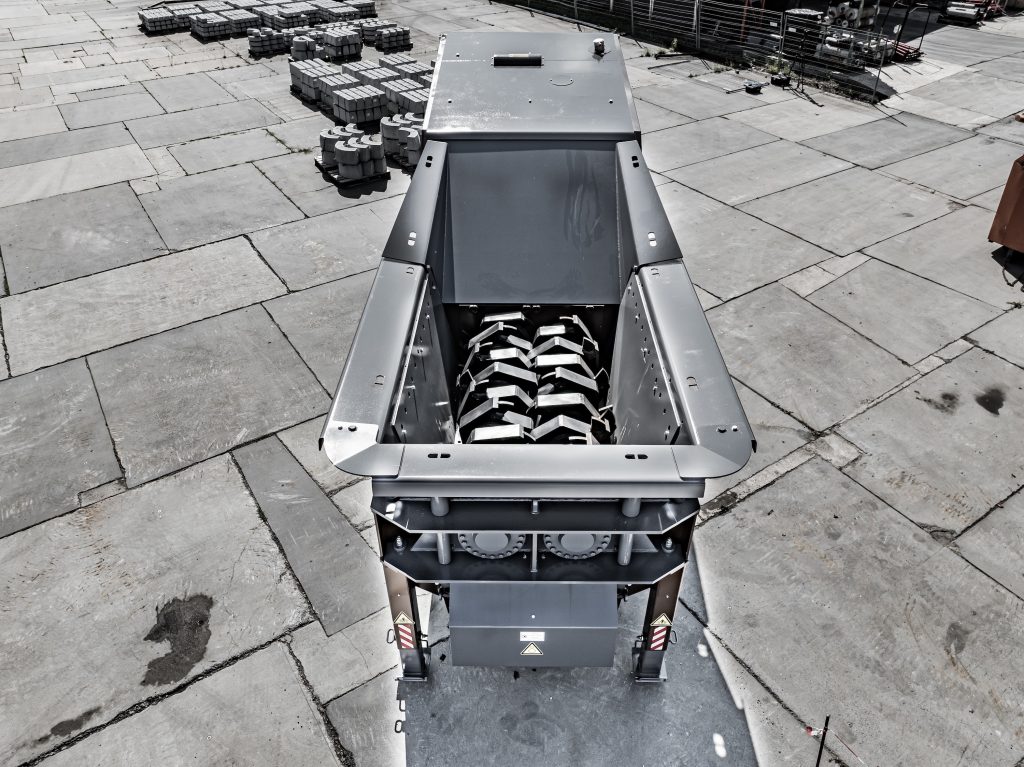

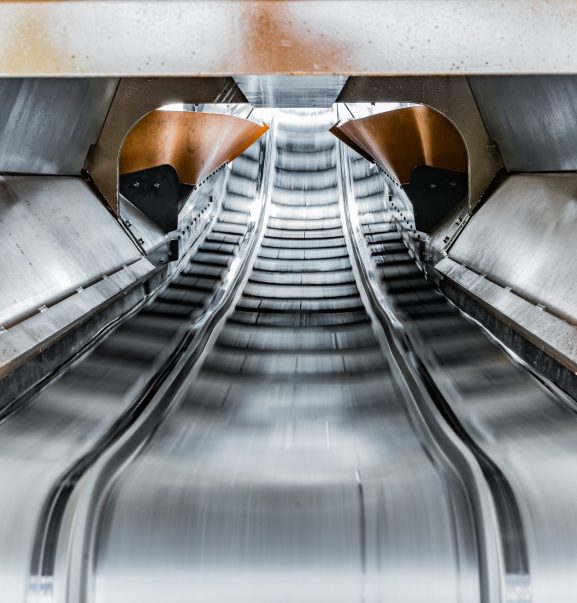

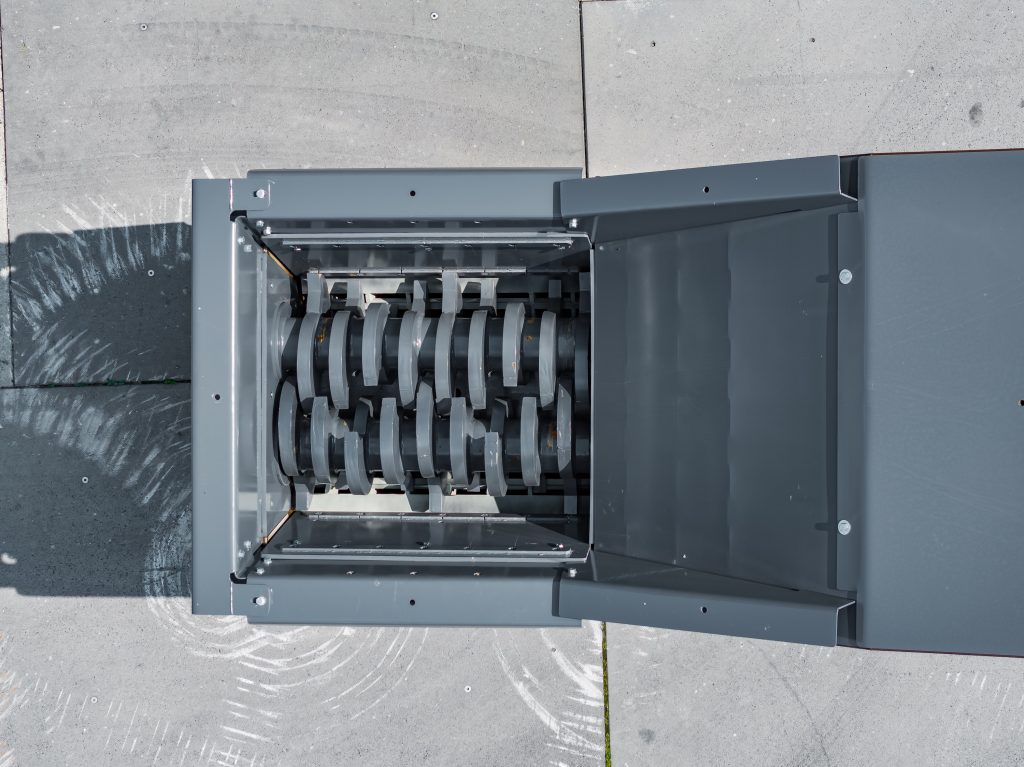

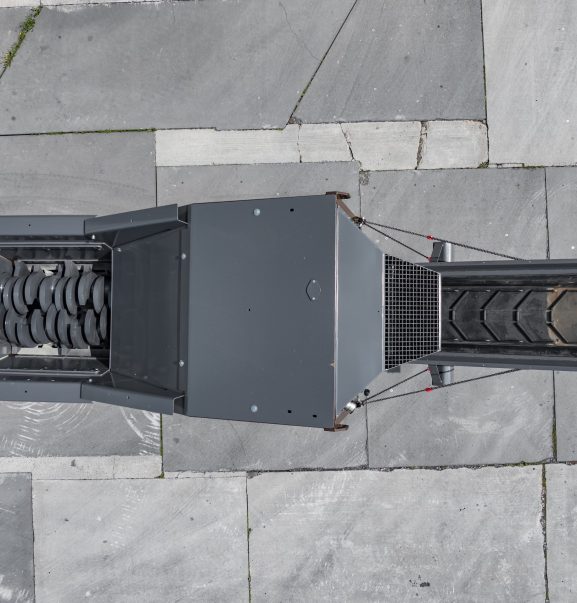

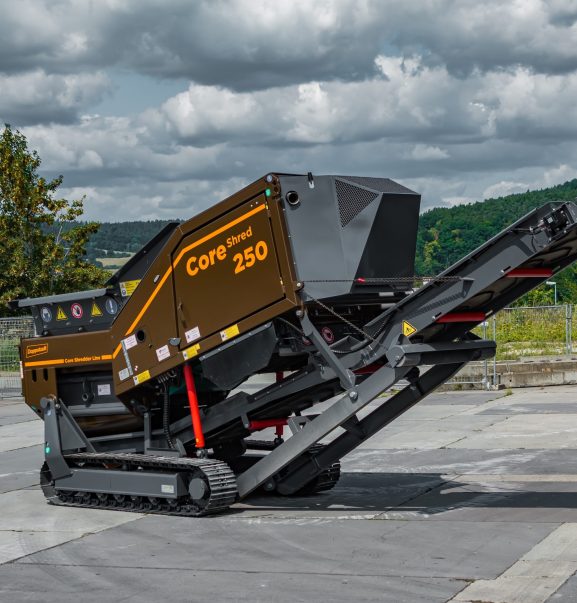

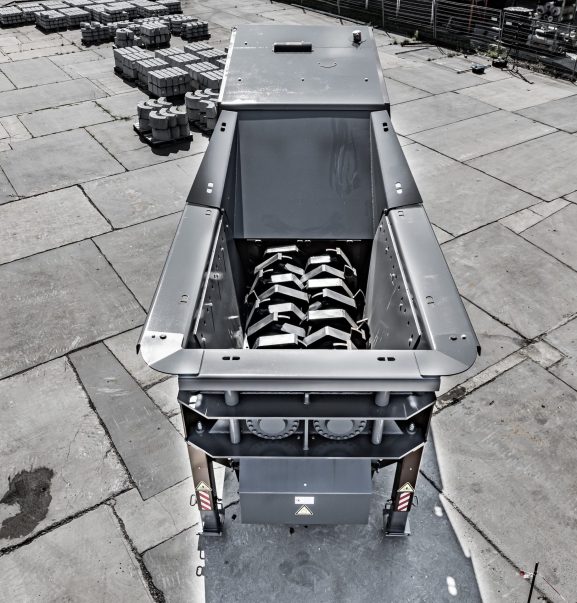

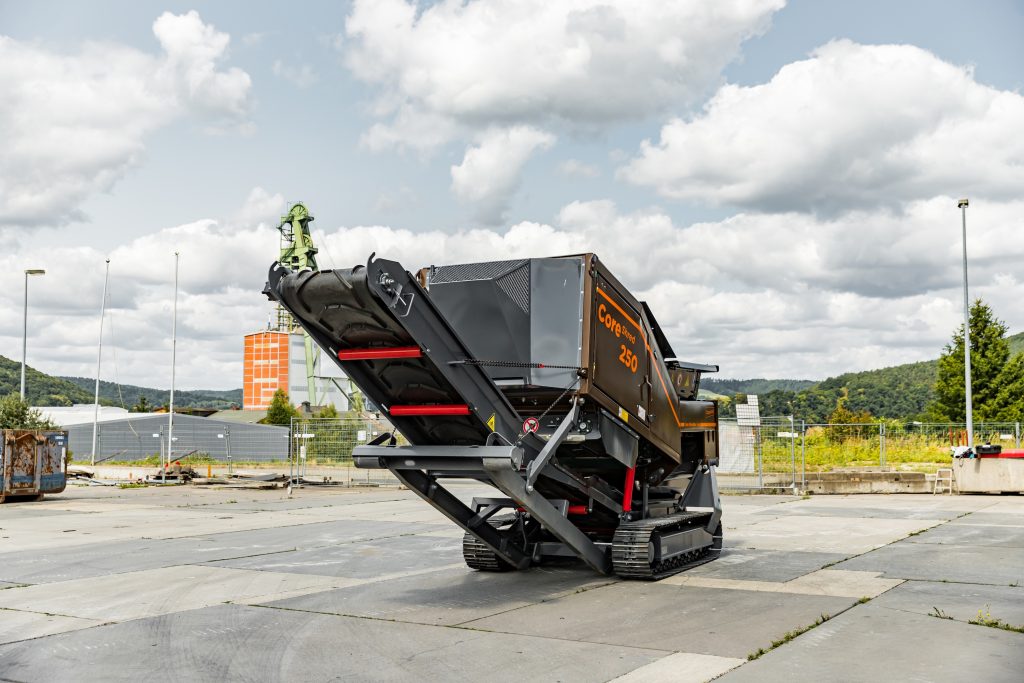

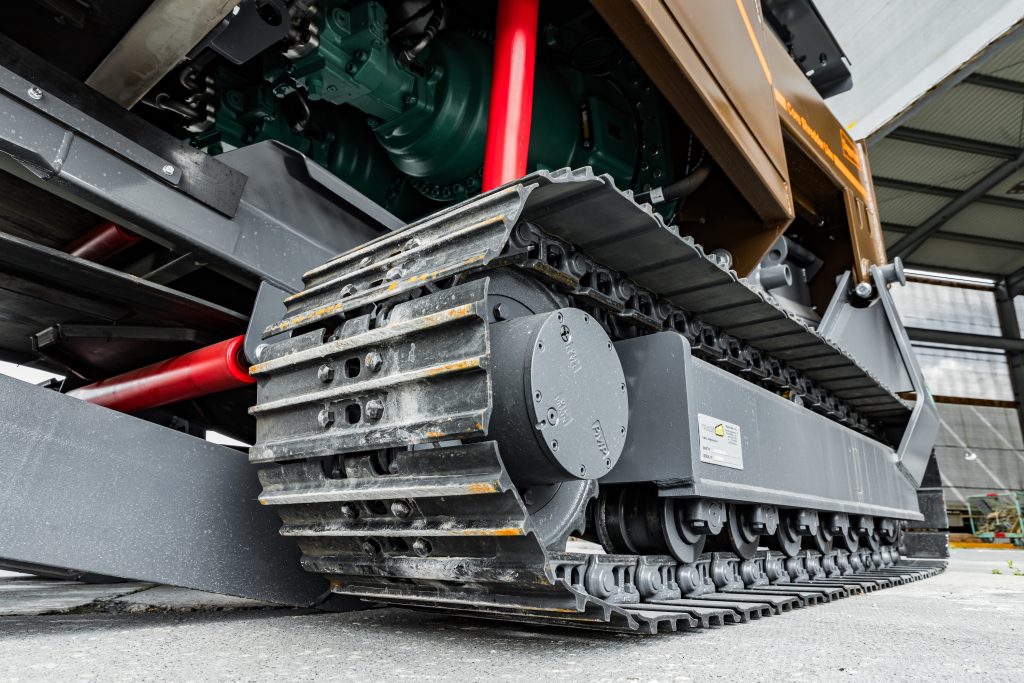

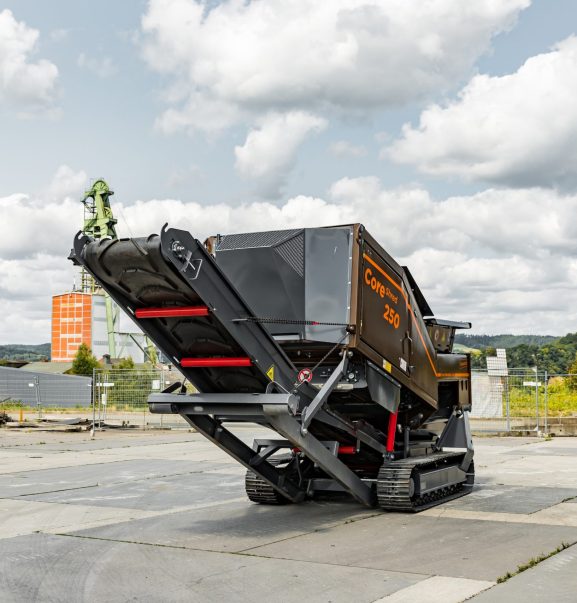

CORESHRED 250
Extremely robust and versatile
A versatile twin-shaft shredder. With an innovative quick-change shredding system, the machine can be adapted to a wide range of materials. From green waste to concrete and scrap metal.
TECHNICHAL SPECIFICATIONS
- VOLVO PENTA engine
- High wear resistance blades
- Overhead magnet with adjustable height
- Hydraulically adjustable and self-cleaning fan for engine cooling
- Optimal maneuverability on any terrain. Available with steel tracks with rubber pads.
- Water spray nozzles for dust reduction
RECYCLABLE MATERIALS
- Construction and demolition waste
- Commercial waste
- Rubber and tire scraps
- Natural and waste wood
- Wooden railway sleepers
- Wood trunks
- Green waste
- Paper and cardboard
- CFRP and GRP waste
- Automobile and aluminum scrap

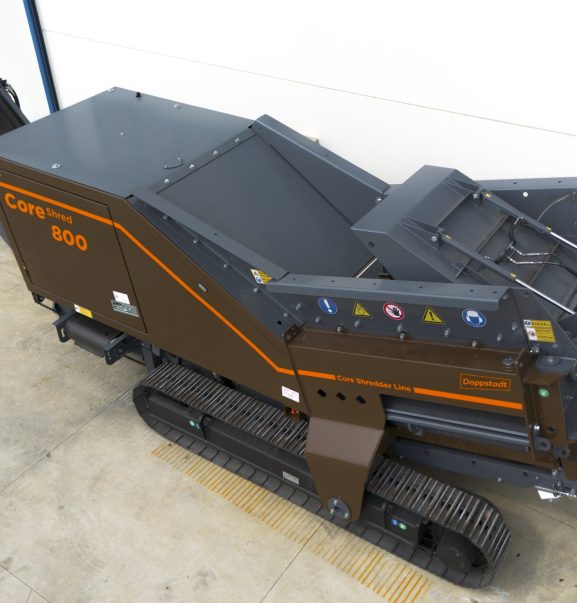

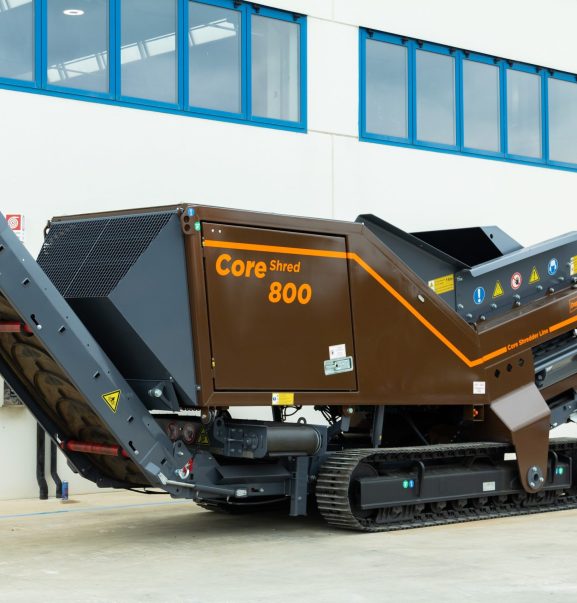

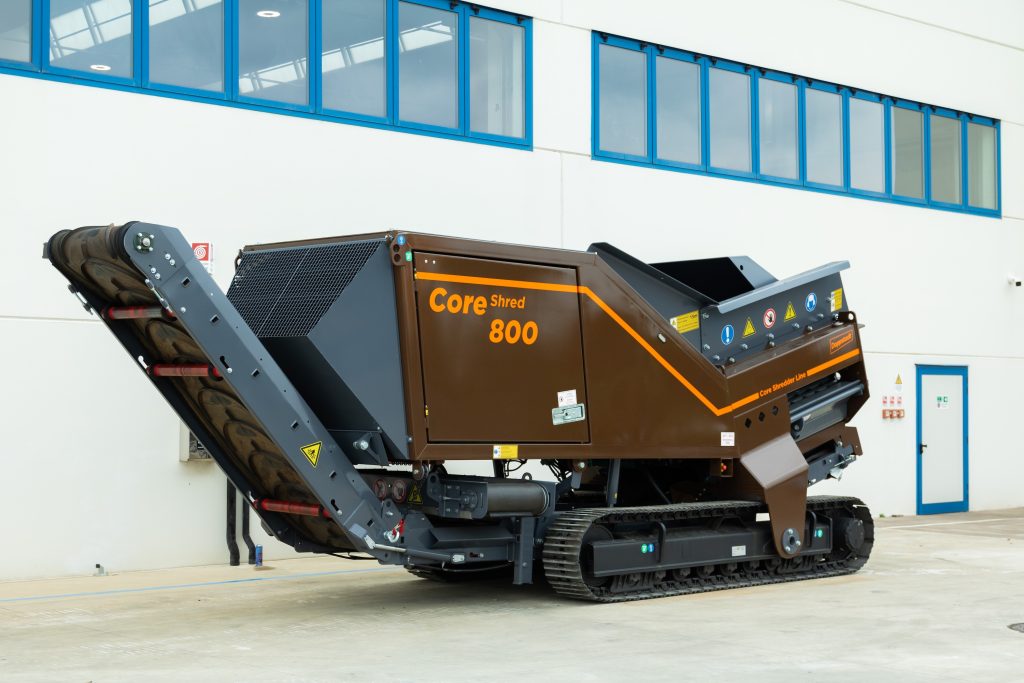

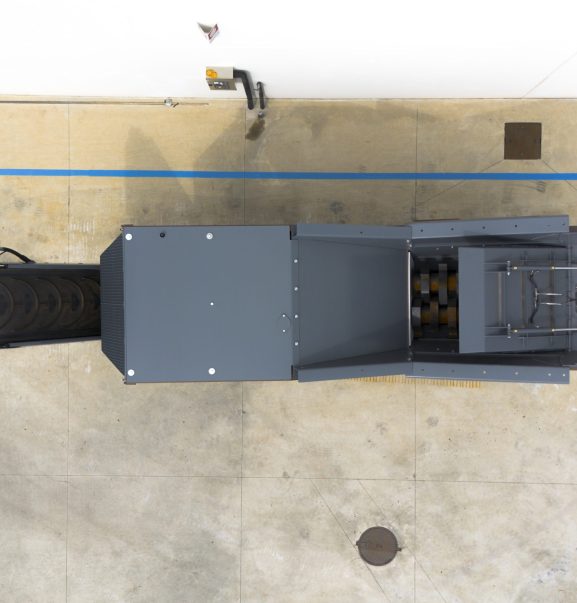

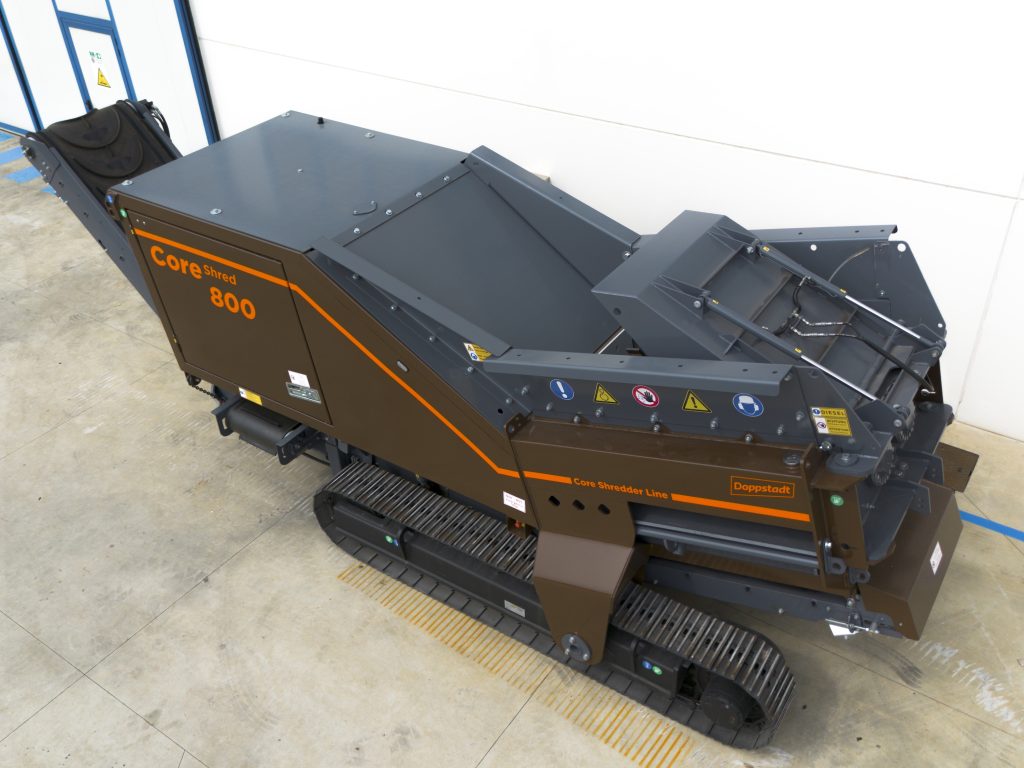

CORESHRED 800
For medium-sized shredding jobs
A versatile twin-shaft shredder. With an innovative quick-change shredding system, the machine can be adapted to a wide range of materials. From green waste to concrete and scrap metal.
TECHNICHAL SPECIFICATIONS
- VOLVO PENTA engine
- High wear resistance blades
- Overhead magnet with adjustable height
- Hydraulically adjustable and self-cleaning fan for engine cooling
- Optimal maneuverability on any terrain. Available with steel tracks with rubber pads.
- Water spray nozzles for dust reduction
RECYCLABLE MATERIALS
- Construction and demolition waste
- Commercial waste
- Rubber and tire scraps
- Natural and waste wood
- Wooden railway sleepers
- Wood trunks
- Green waste
- Paper and cardboard
- CFRP and GRP waste
- Automobile and aluminum scrap

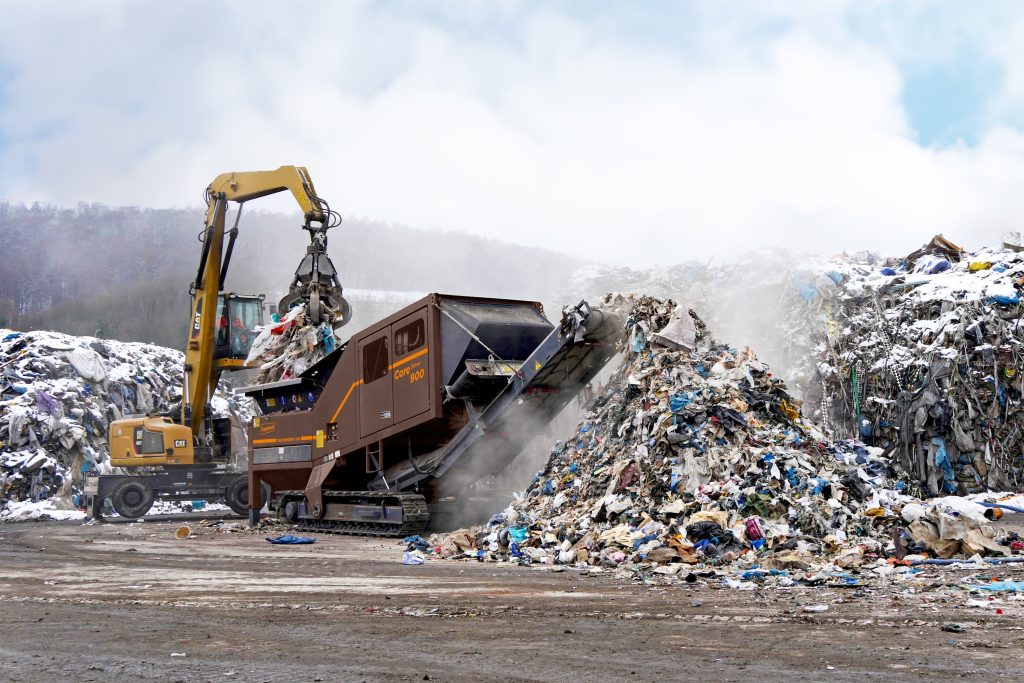

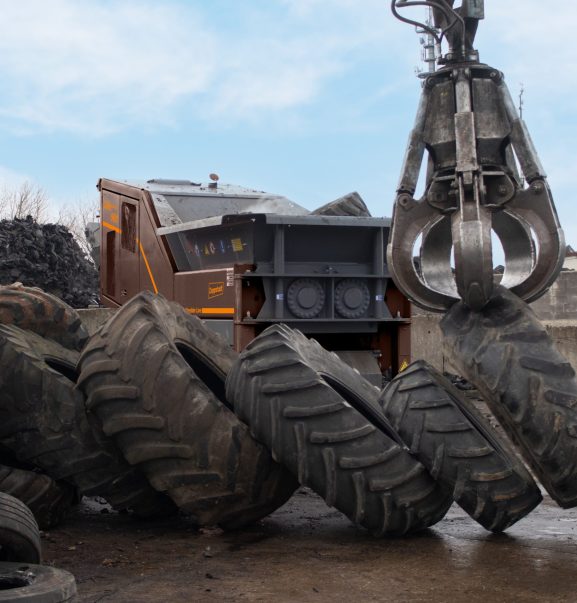

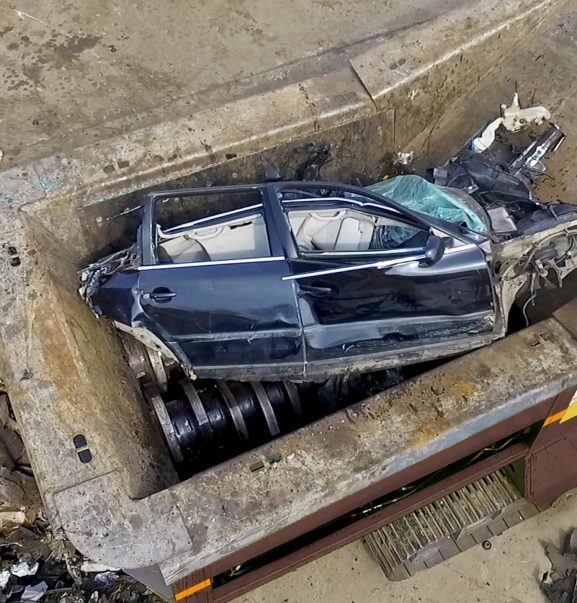

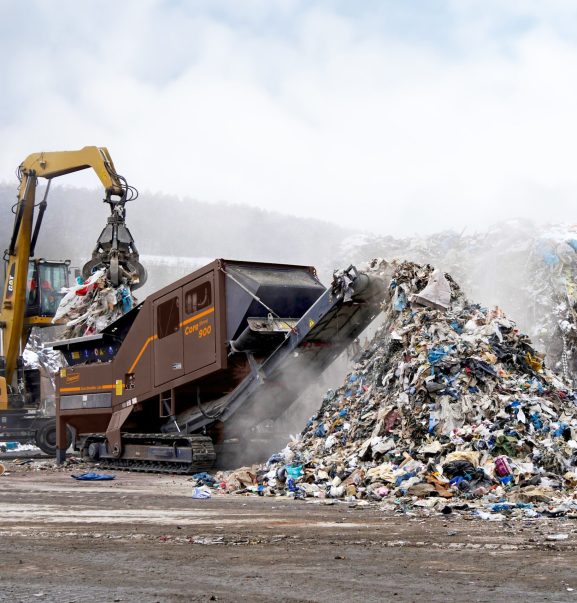

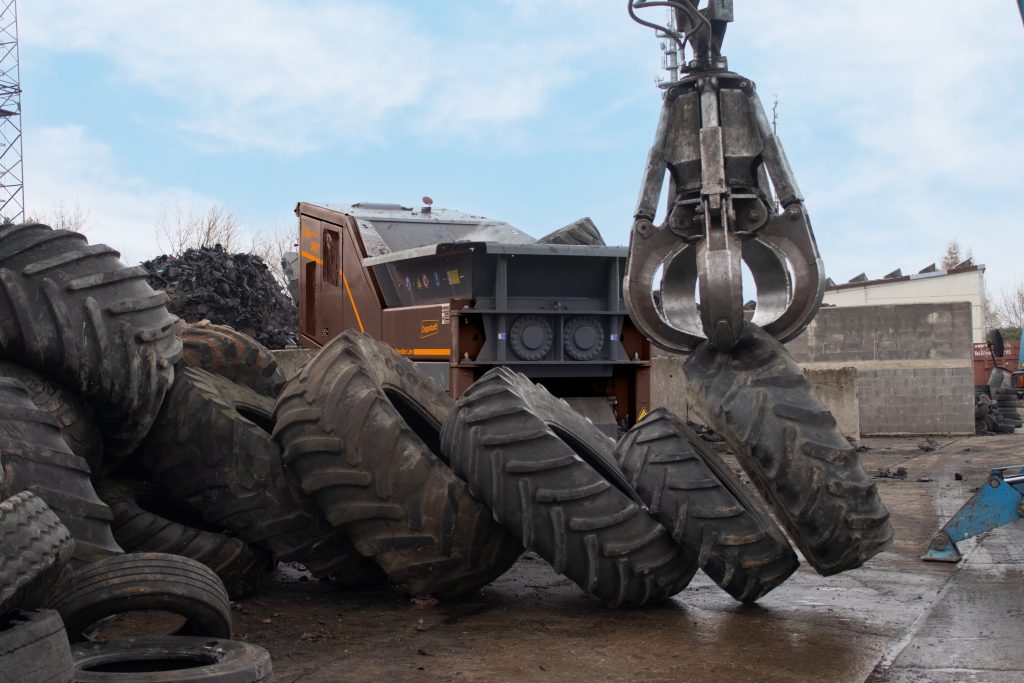

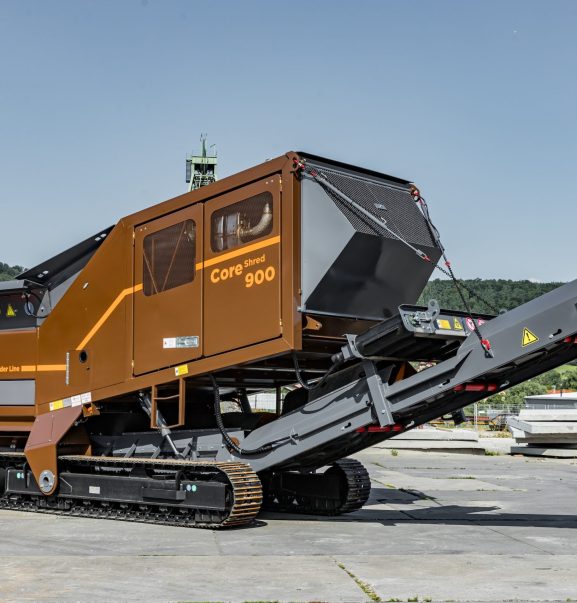

CORESHRED 900
High performance and challenging crushing tasks
A versatile twin-shaft shredder. With an innovative quick-change shredding system, the machine can be adapted to a wide range of materials. From green waste to concrete and scrap metal.
TECHNICHAL SPECIFICATIONS
- VOLVO PENTA engine
- High wear resistance blades
- Overhead magnet with adjustable height
- Hydraulically adjustable and self-cleaning fan for engine cooling
- Optimal maneuverability on any terrain. Available with steel tracks with rubber pads.
- Water spray nozzles for dust reduction
RECYCLABLE MATERIALS
- Construction and demolition waste
- Commercial waste
- Rubber and tire scraps
- Natural and waste wood
- Wooden railway sleepers
- Wood trunks
- Green waste
- Paper and cardboard
- CFRP and GRP waste
- Automobile and aluminum scrap
SMART SCREENING, SORTING

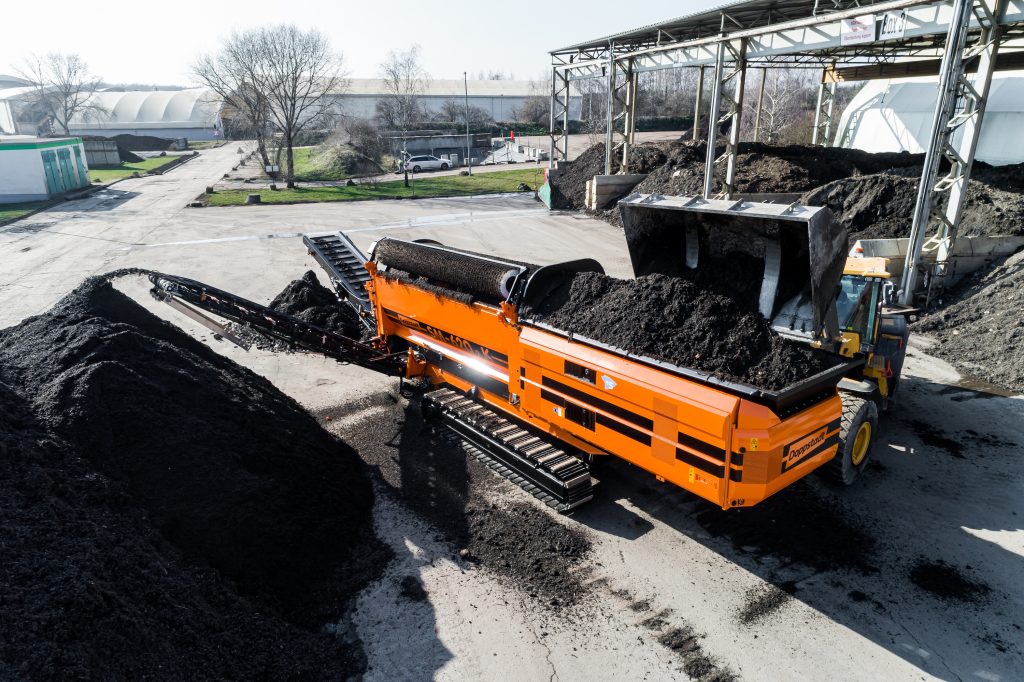

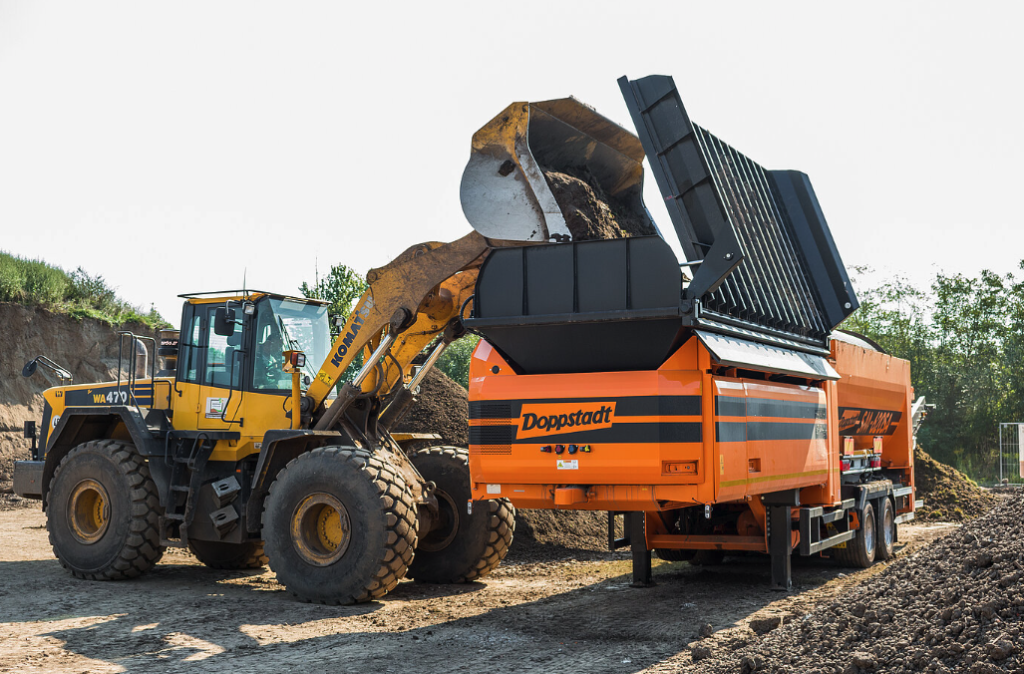

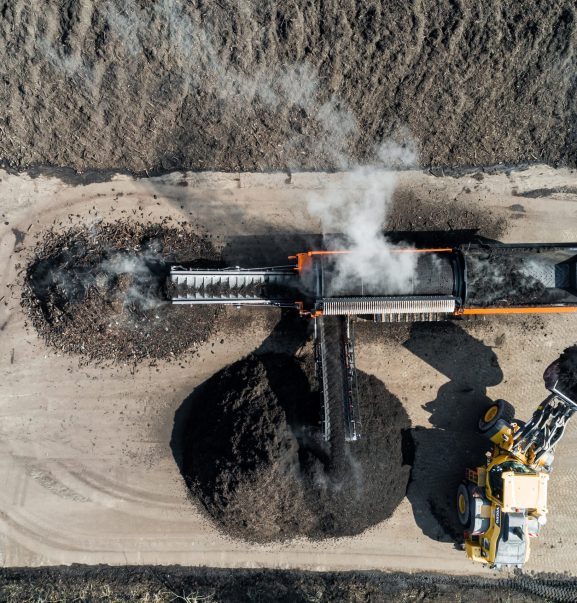

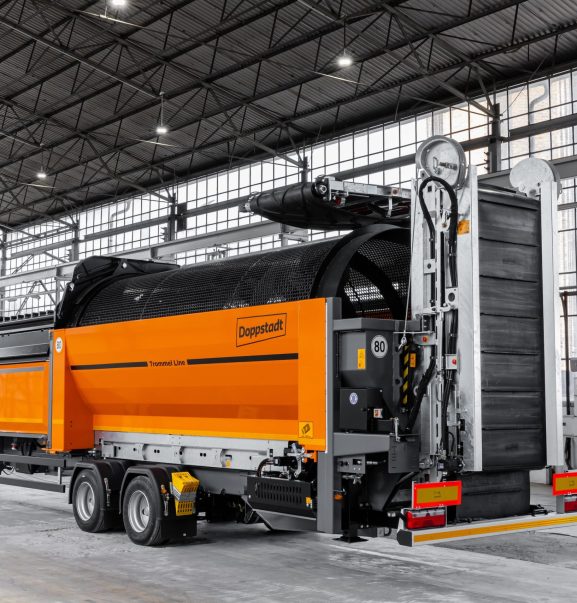

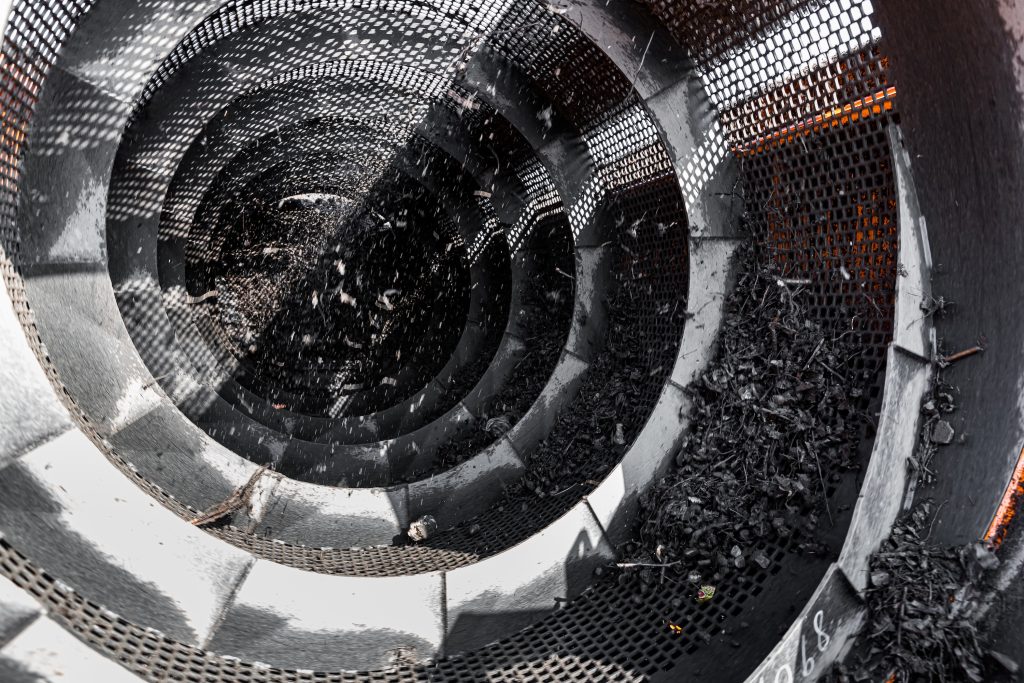

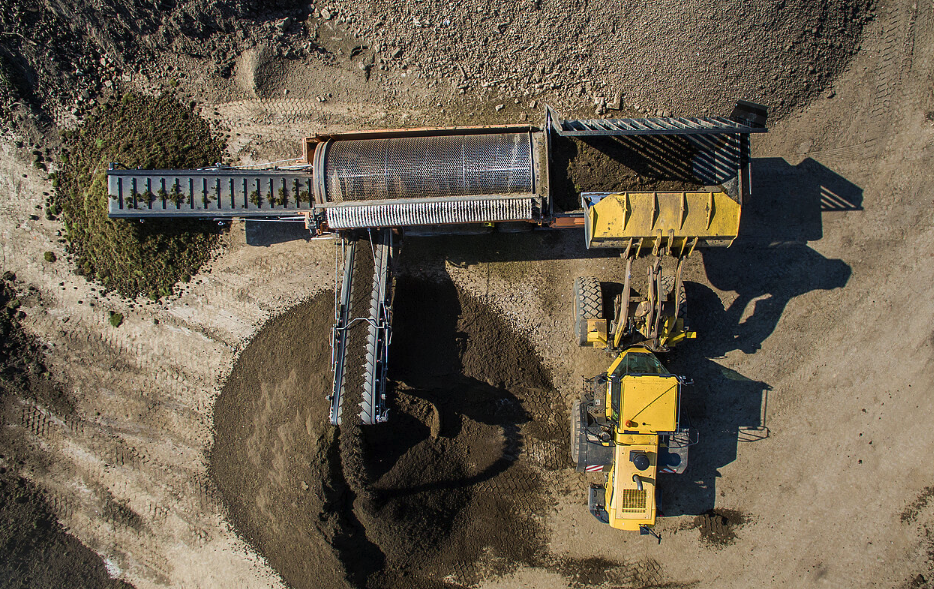

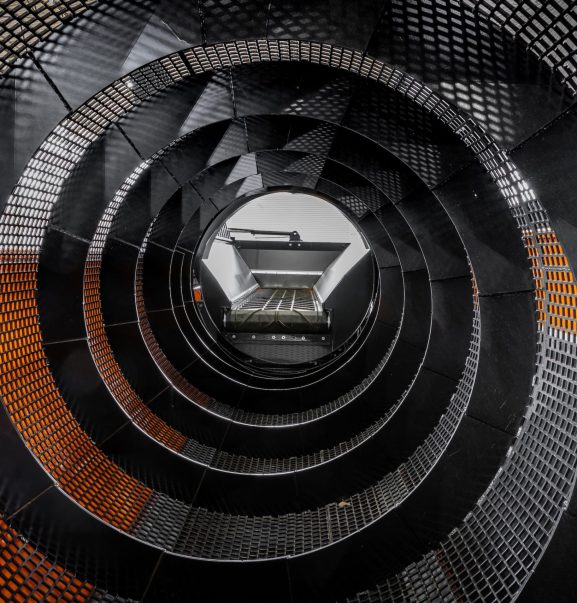

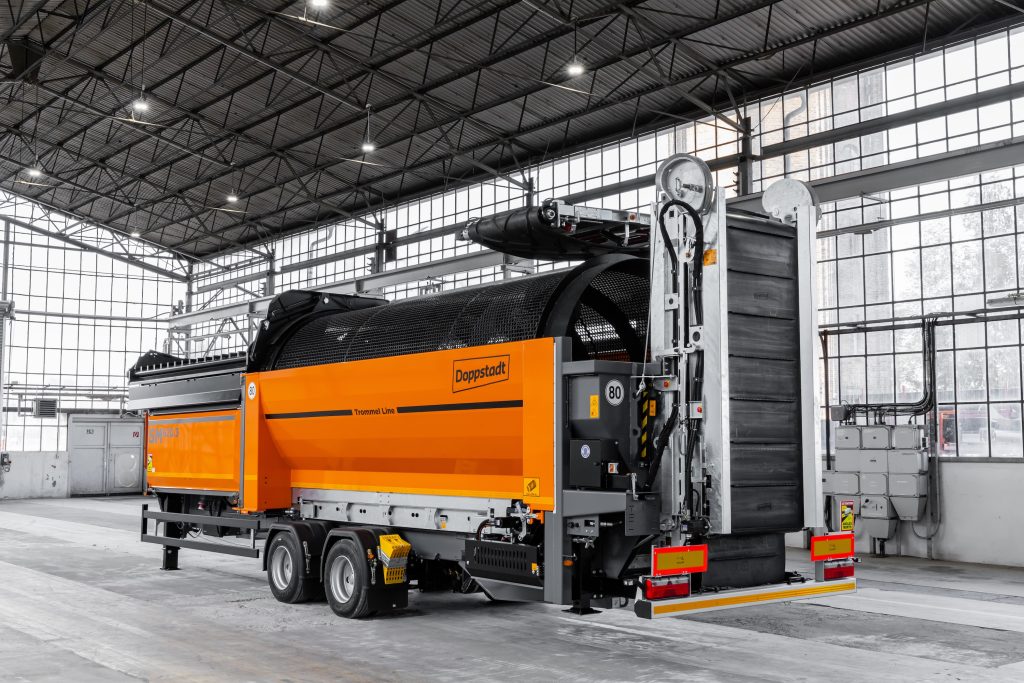

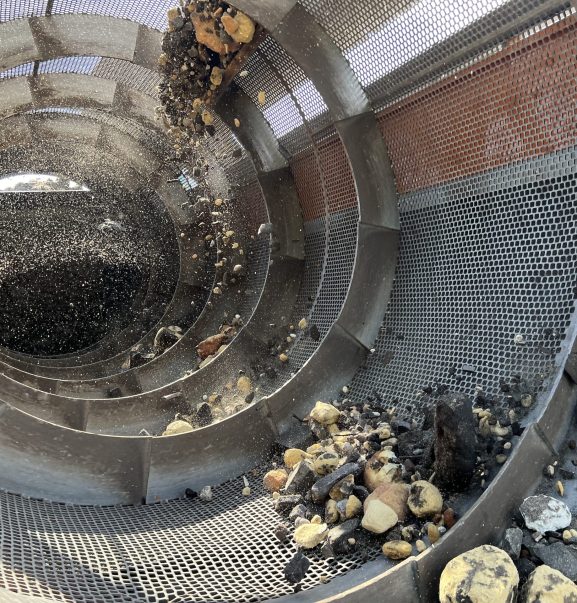

TROMMEL LINE

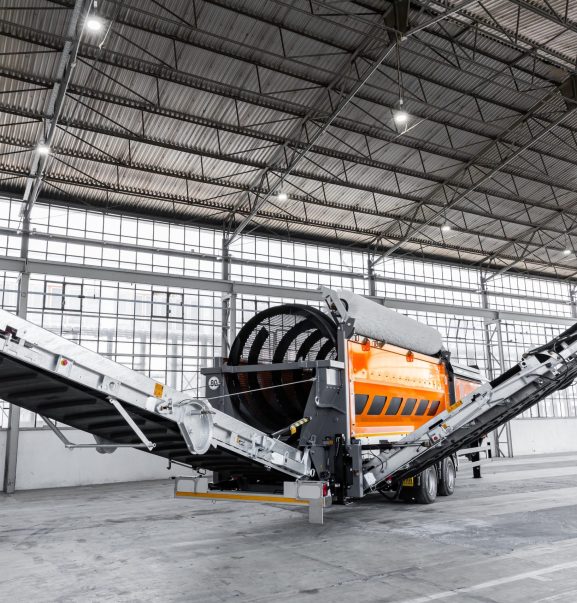

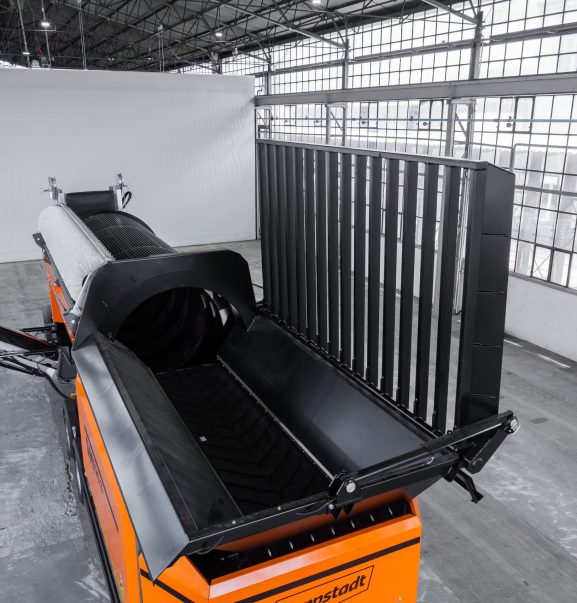

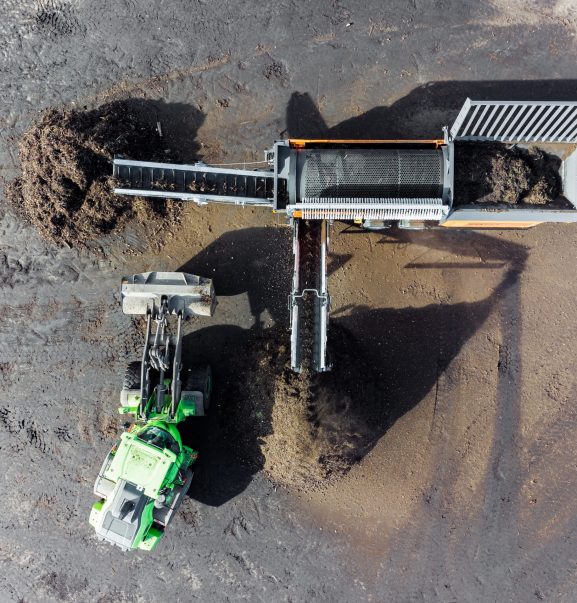

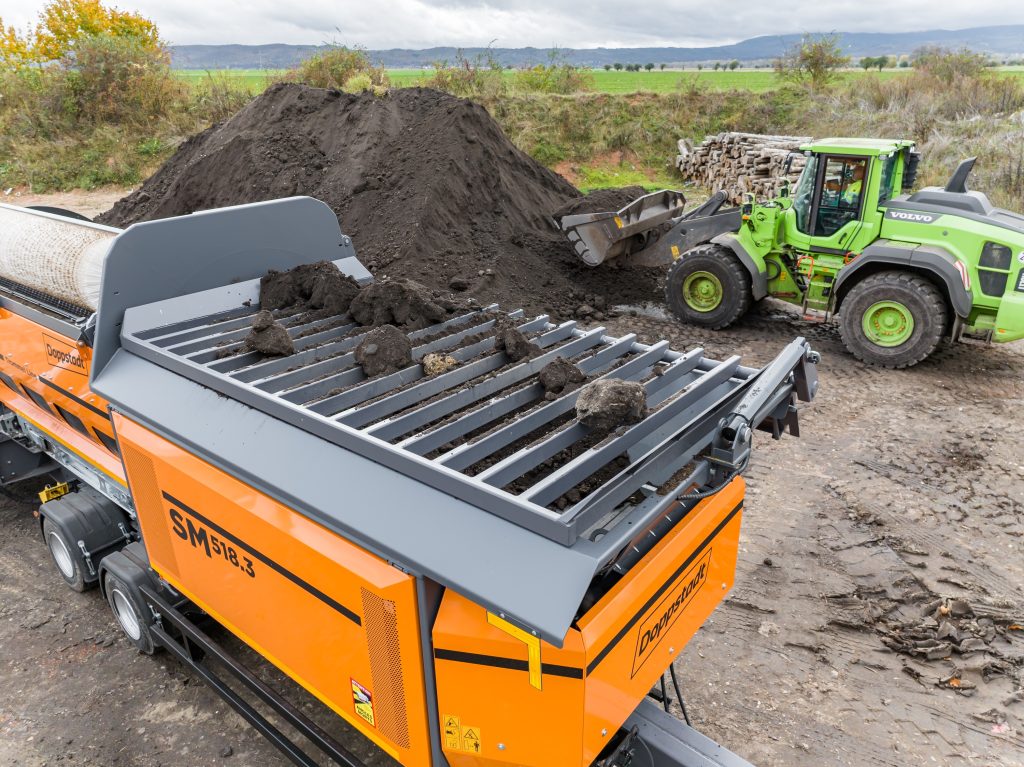

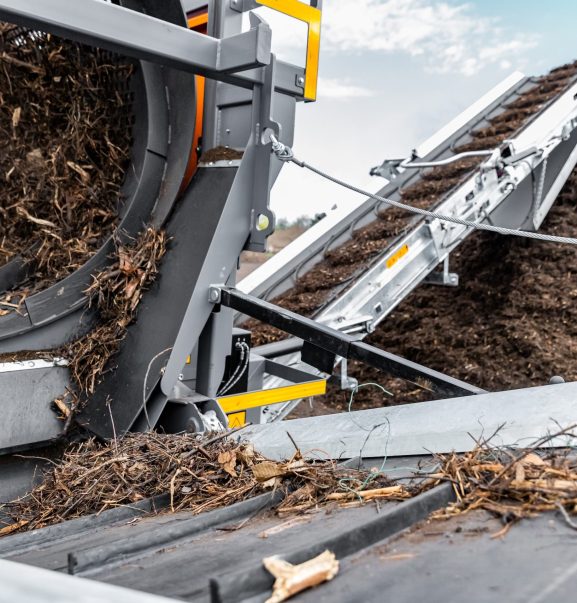

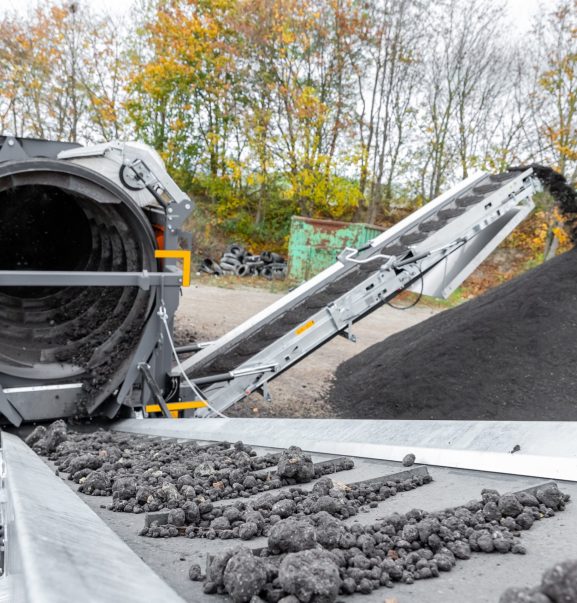

SM 518.2
Flexible and compact, ensures screening of the final product material into 5 fractions.

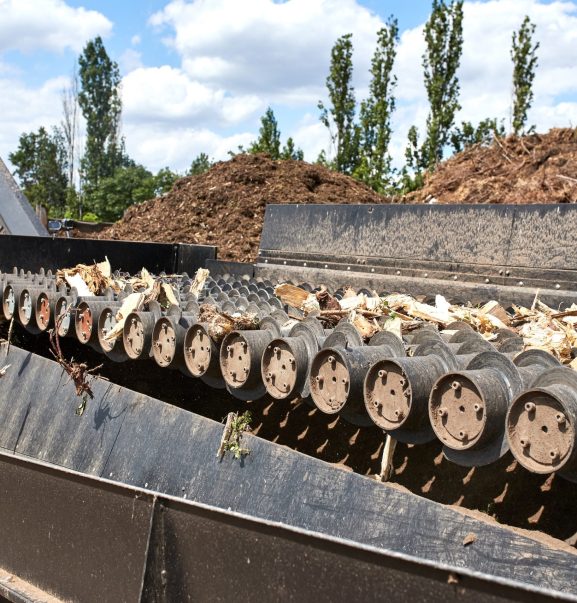

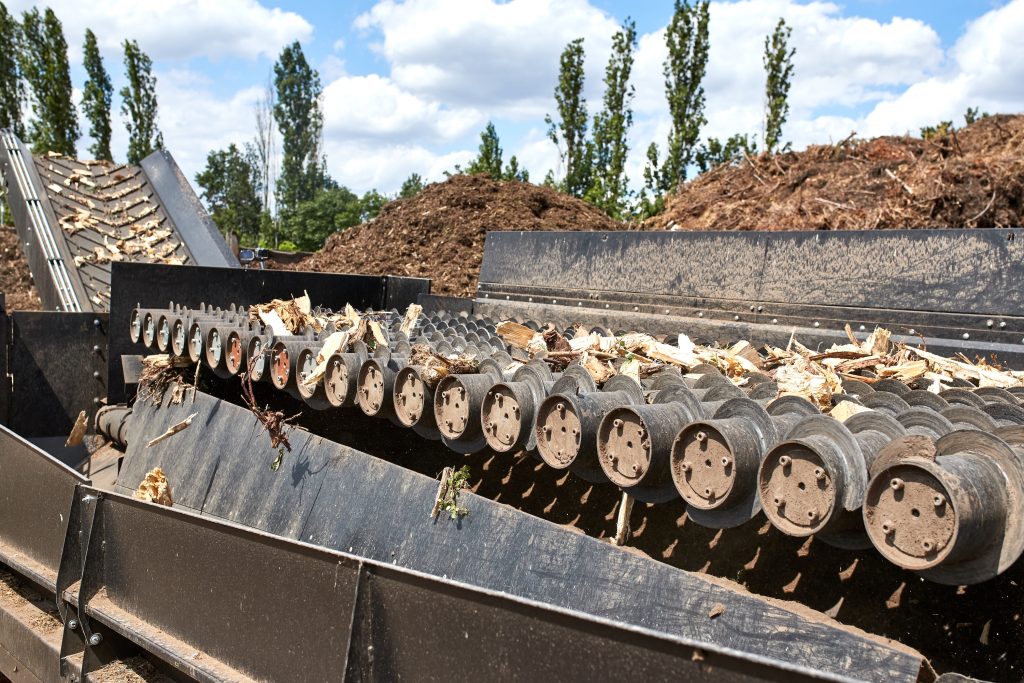

With quick-change drum screening or star wheel screening solutions, it can process a wide range of materials. It can also be used as a mixer with a mixing drum.
TECHNICHAL SPECIFICATIONS
- Quick-change system for sieve, drum and star-type sifter
- 5 m3 feed hopper, 2.9 m loading height, 5.5 m long discharge conveyors with 3.5 m drop height
- Electronic load detection control
- Decentralized management
RECYCLABLE MATERIALS
- Household and industrial waste
- Compost, bark, wood chips
- Bulk materials

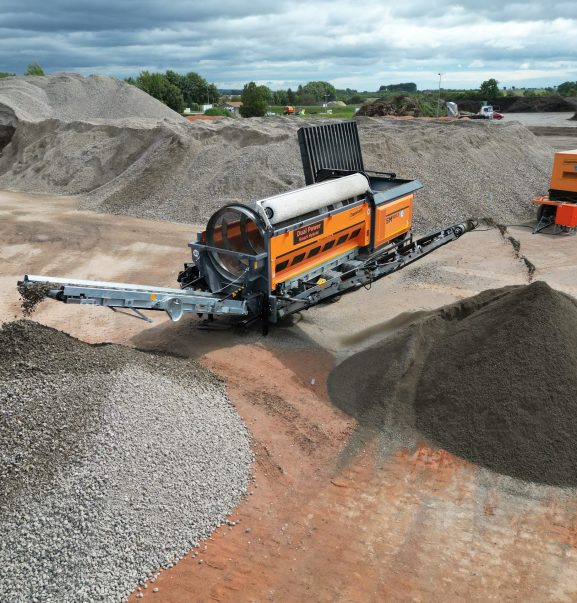

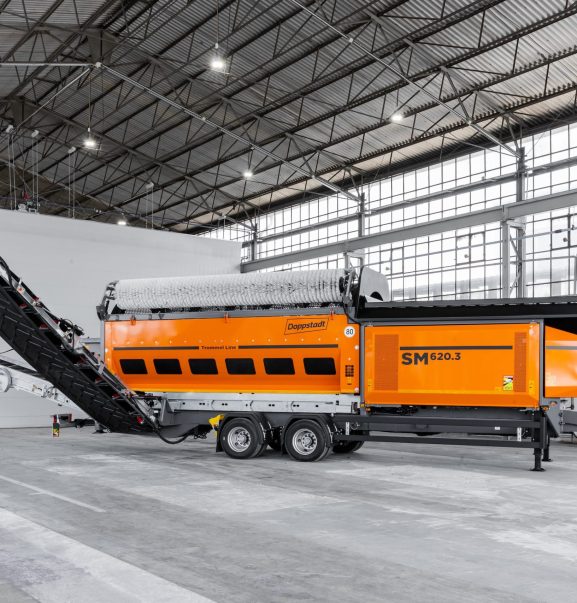

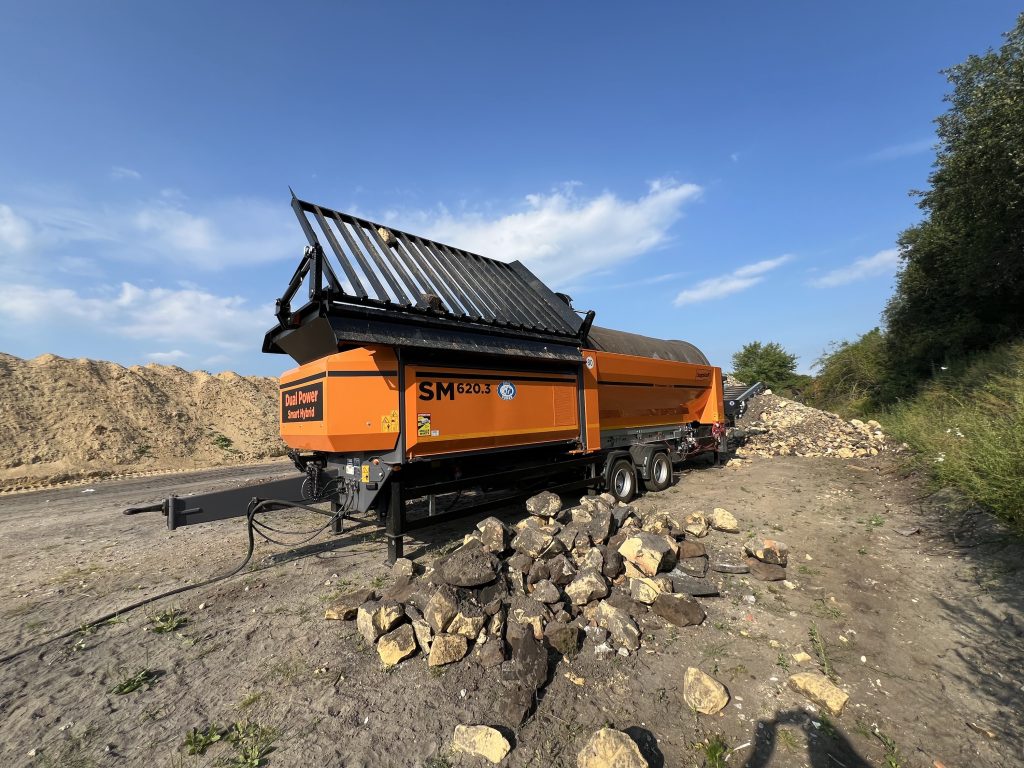

SM 620.3 | NEW
For big jobs, efficient sawing, attractive price
The next generation of drum-type screening equipment! The new DualPower drive technology – teh samrter hybrid – allows operators to switch flexibly between diesel and electric drive, thus adapting fully to the existing infrastructure.
TECHNICHAL SPECIFICATIONS
- Three possible drive options (without AdBlue additive): diesel engine, electric motor or DualPower
- Modern load sensor hydraulic control
- Galvanized unloading belts
- New scrapers for all applications
- Belt options for light and heavy duty work
- Easy-to-clean covers for the sieve cylinder in the side door

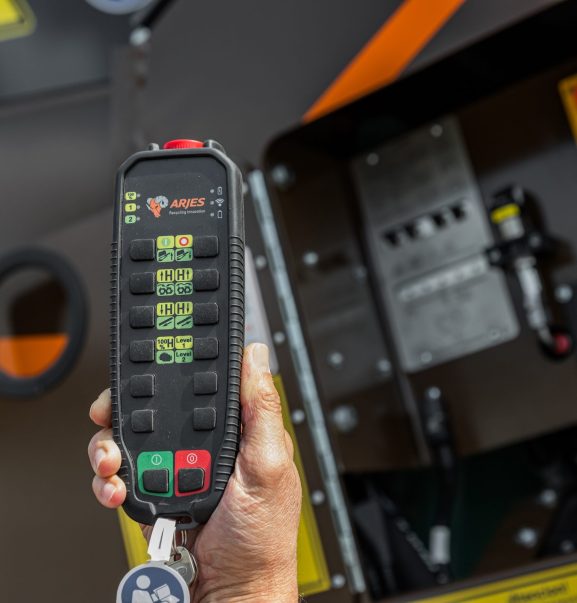

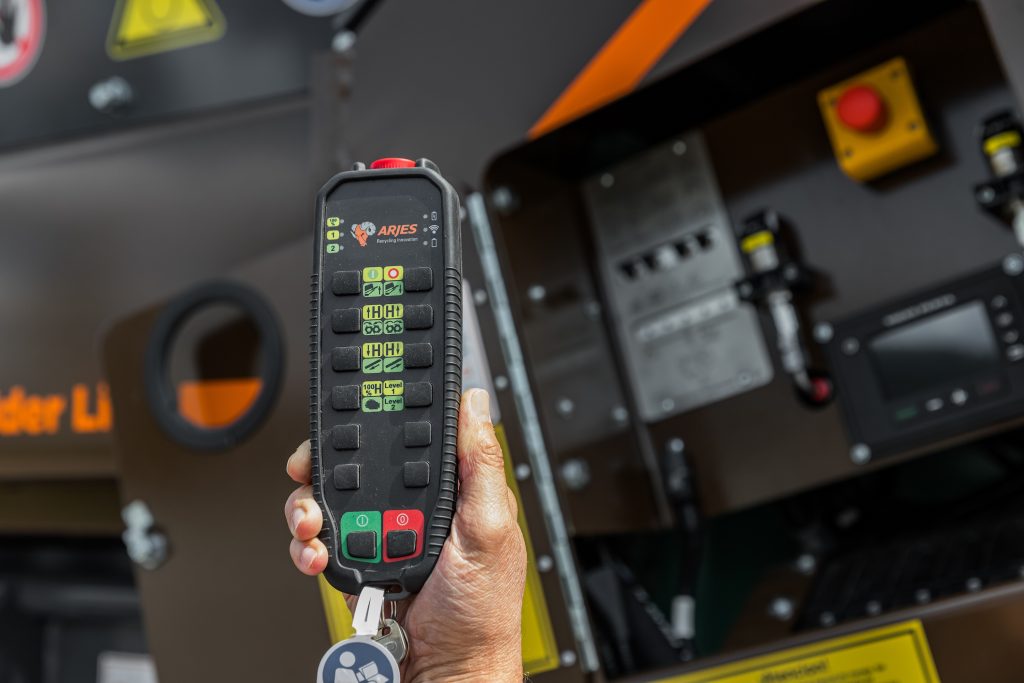

- Remote control in Basic or Pro version
- 19 t chassis with double wheels
- Stone grille that opens at an angle of more than 90 degrees
- 5.0 m³ feed hopper with low feed height of 2.9 m
RECYCLABLE MATERIALS
- Household and industrial waste
- Būvniecības atkritumi
- Compost, bark, wood chips
- Bulk materials

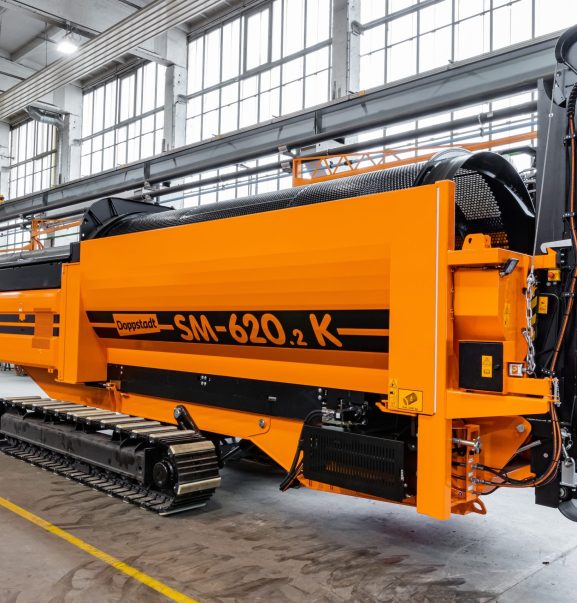

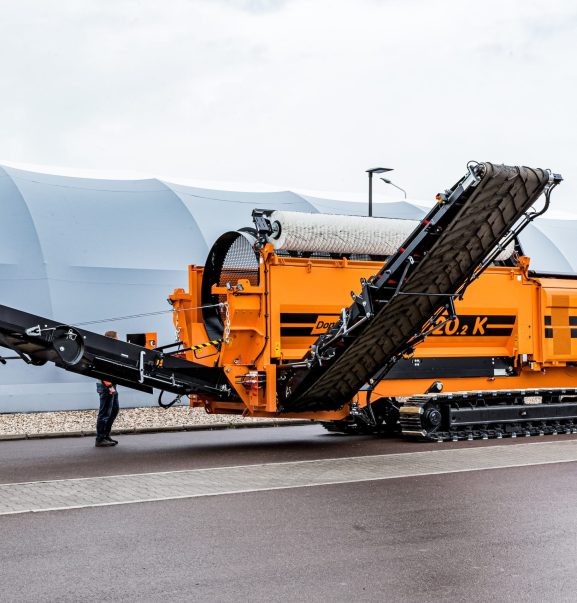

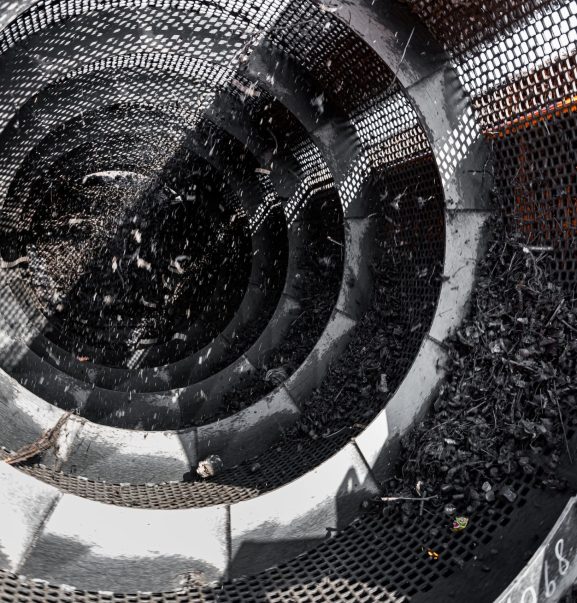

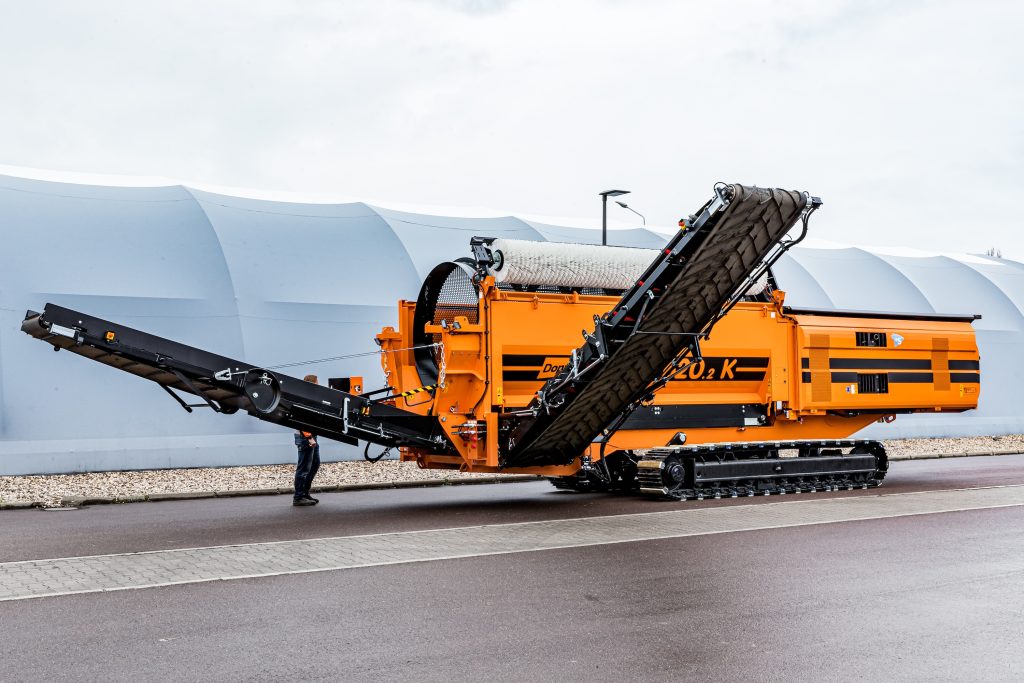

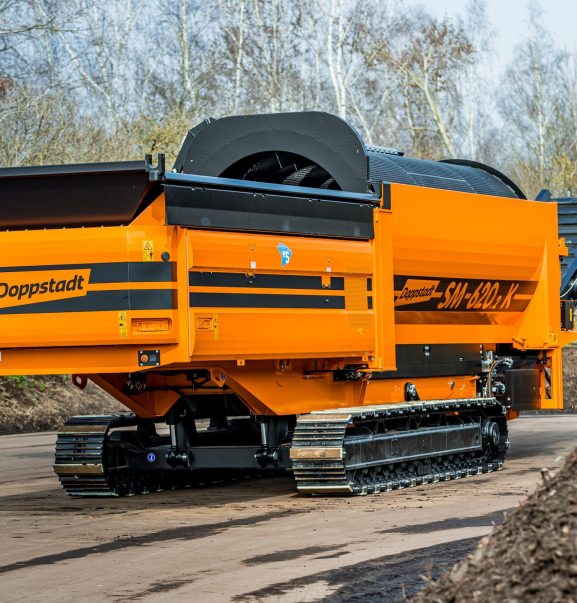

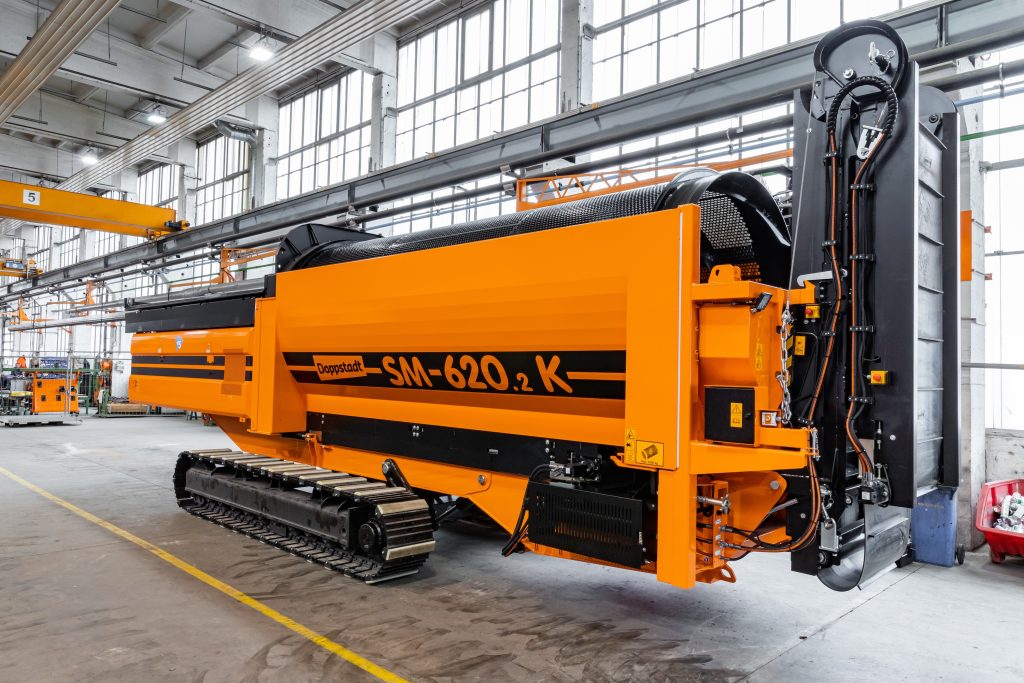

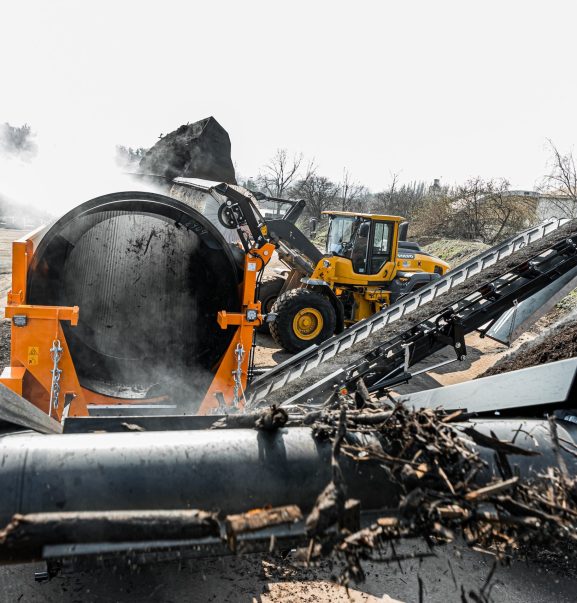

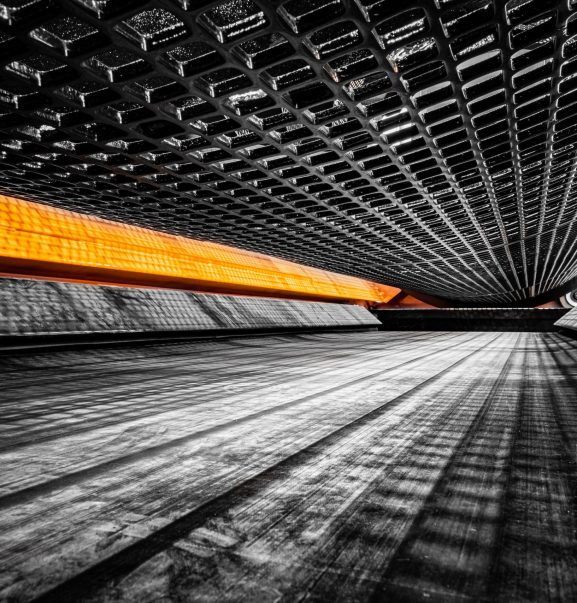

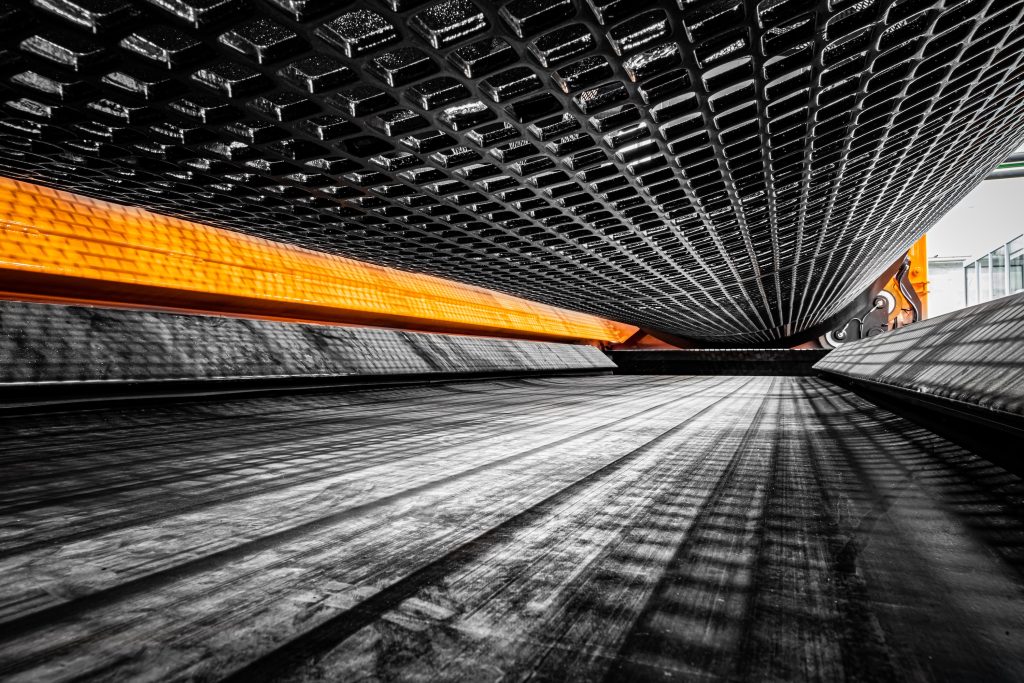

SM 620.2 K
Mobile power with high capacity.
Thanks to its height-adjustable crawler chassis, the SM 620.2 K always stays on track, even on uneven and rough terrain, and can perform complex levelling tasks quickly and reliably.
TECHNICHAL SPECIFICATIONS
- Crawler chassis suitable for heavy-duty work
- Self-propelled with remote control
- Feed hopper with a capacity of more than 7 m3
- Funnel width suitable even for very large loader buckets, loading height 2.9 m
- Load sensor system allows you to move and work at the same time
- Crawler chassis with lifting kinematics for optimal machine leveling on uneven terrain
- Quick-change system – for replacing the drum or star-shaped screen insert
- Diesel engine with low fuel consumption
- Highest throughput
- Full control of the machine is located at the rear
- Additional hydraulic connections for the use of many additional accessories
RECYCLABLE MATERIALS
- Wood waste
- Būvniecības atkritumi
- Compost, bark, wood chips
- Biowaste

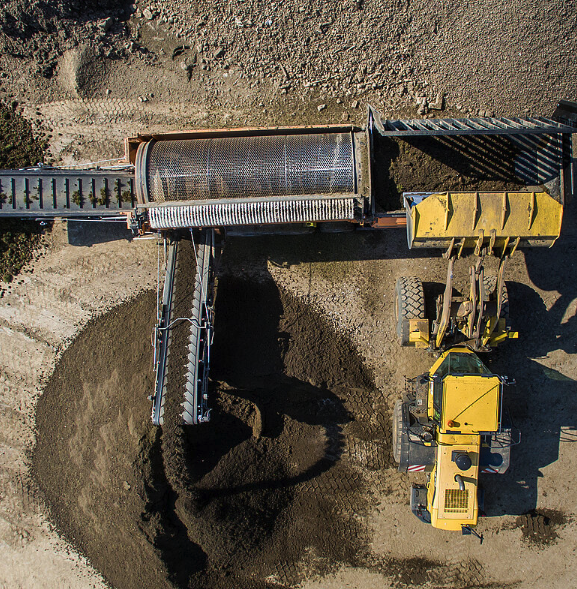

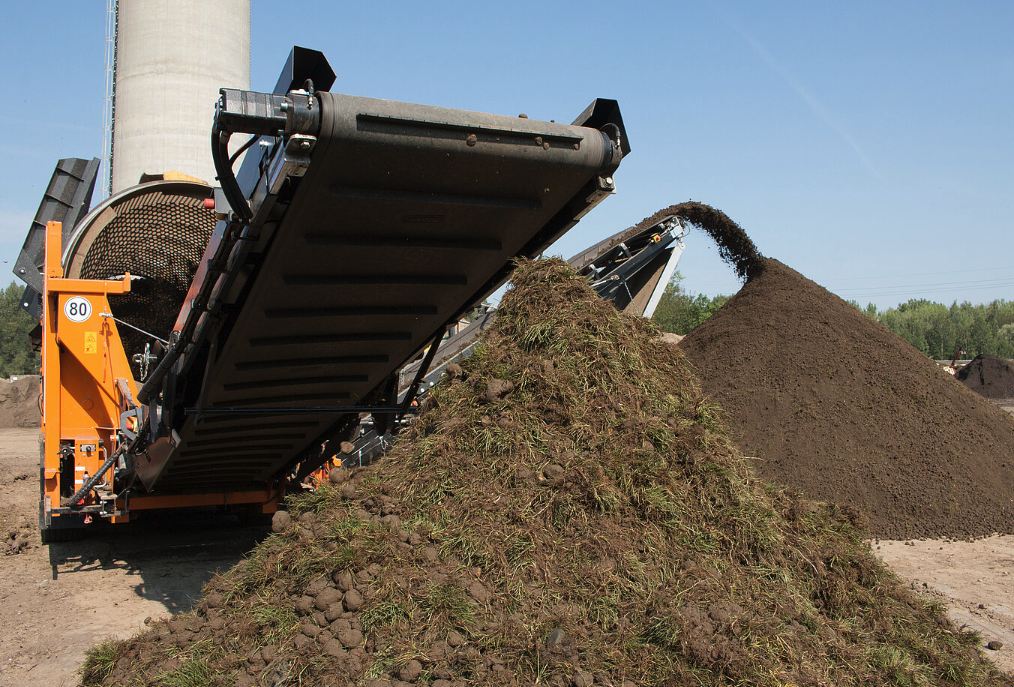

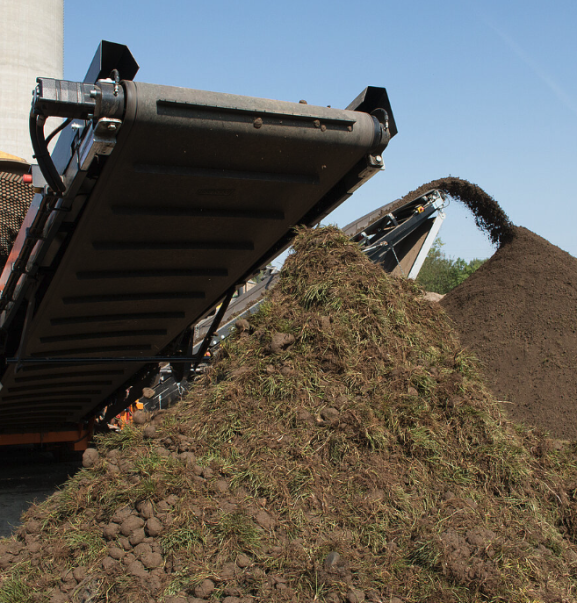

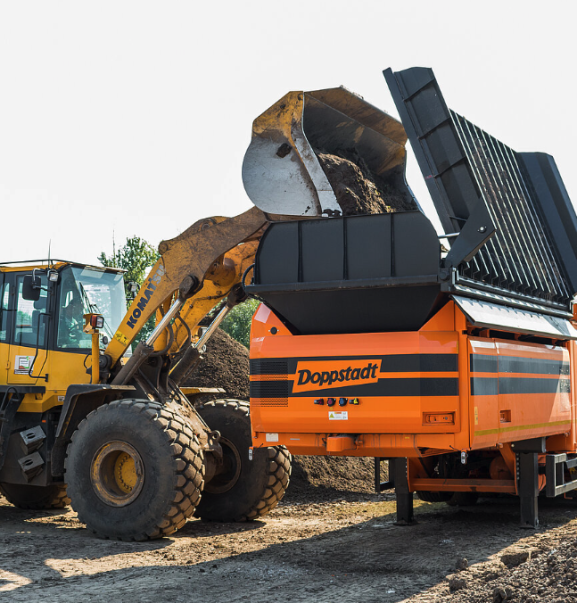

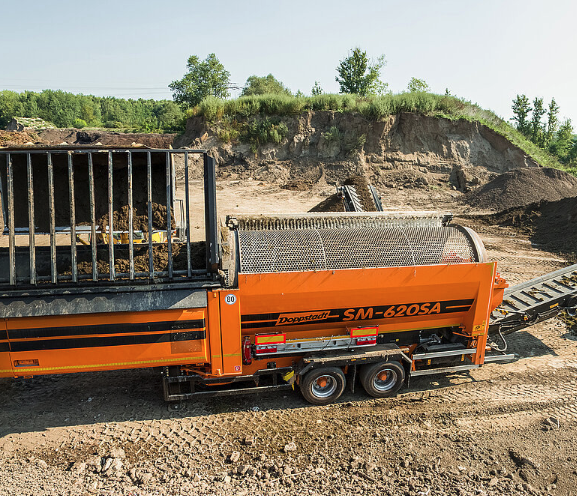

SM 620.2 SA
High-performance solution for continuous use
High capacity and easy loading. The large 7 m3 feed hopper makes the SM 620.2 SA particularly easy to load – whether with household waste, compost or construction waste. It is the ideal solution when high throughput is required in continuous operation.
TECHNICHAL SPECIFICATIONS
- Quick screen replacement, works with trommel or star screens
- Electronic load sensor control
- Large 7.0 m3 feed hopper with low feed height of 2.9 m
- Low operating costs and high throughput
- Three additional hydraulic connections for simultaneous operation of additional equipment
RECYCLABLE MATERIALS
- Wood waste
- Būvniecības atkritumi
- Compost, bark, wood chips
- Biowaste
- Commercial waste

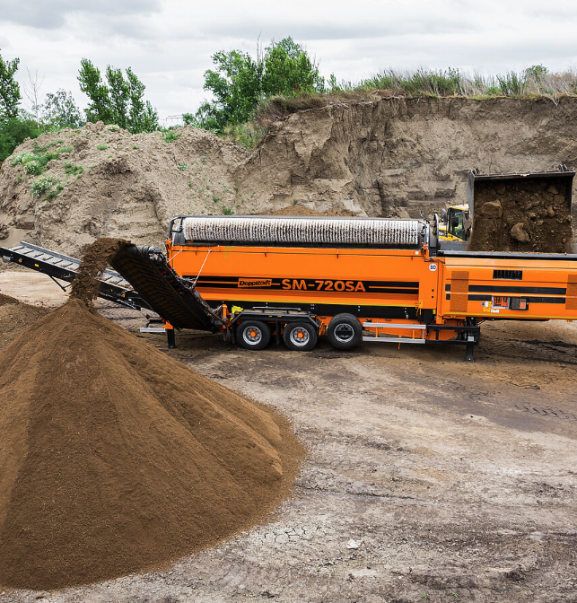

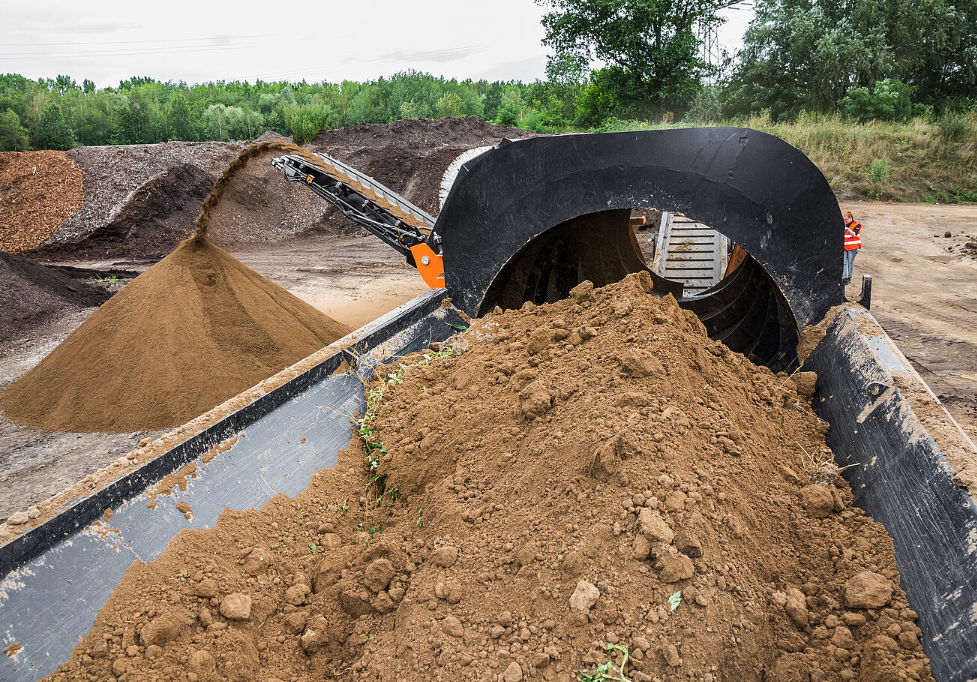

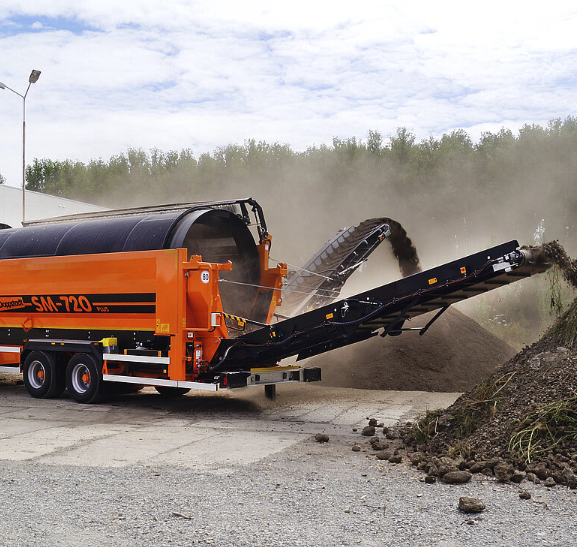

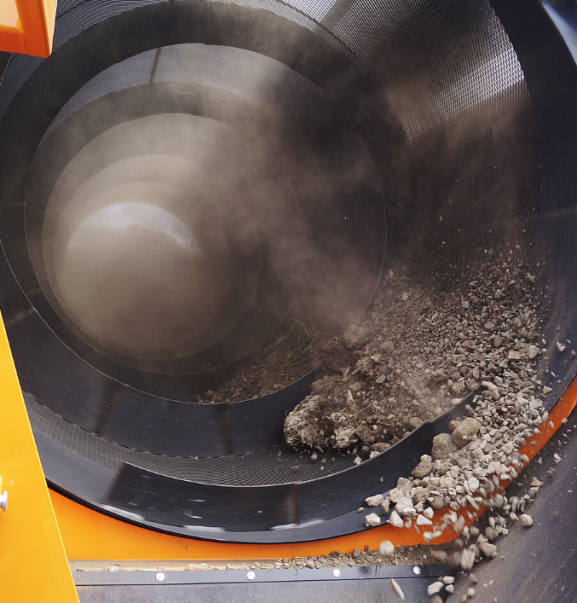

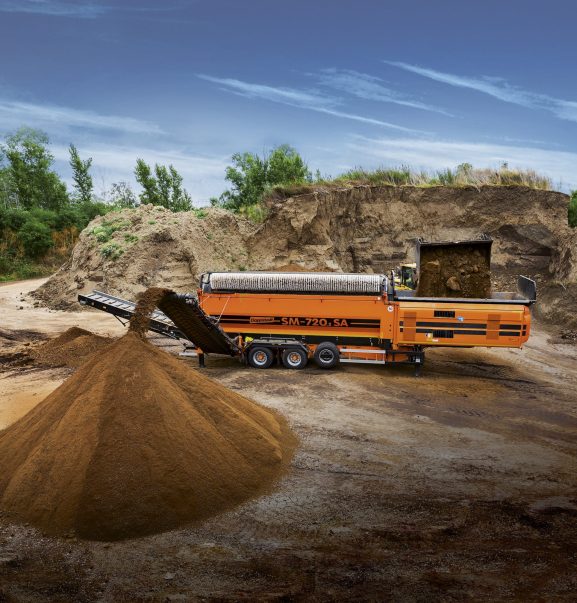

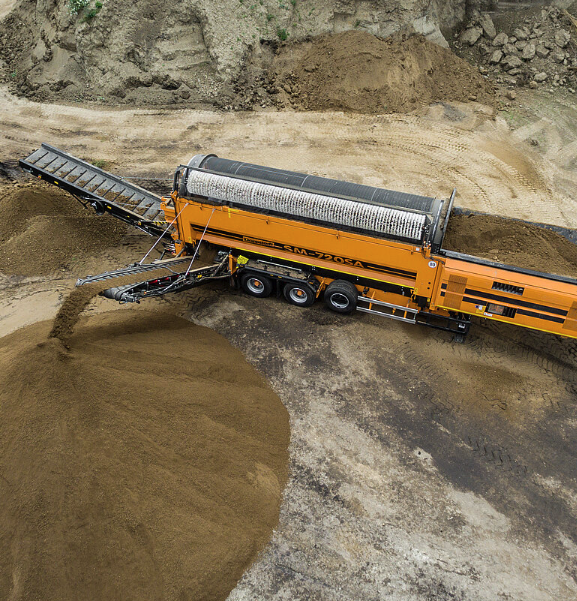

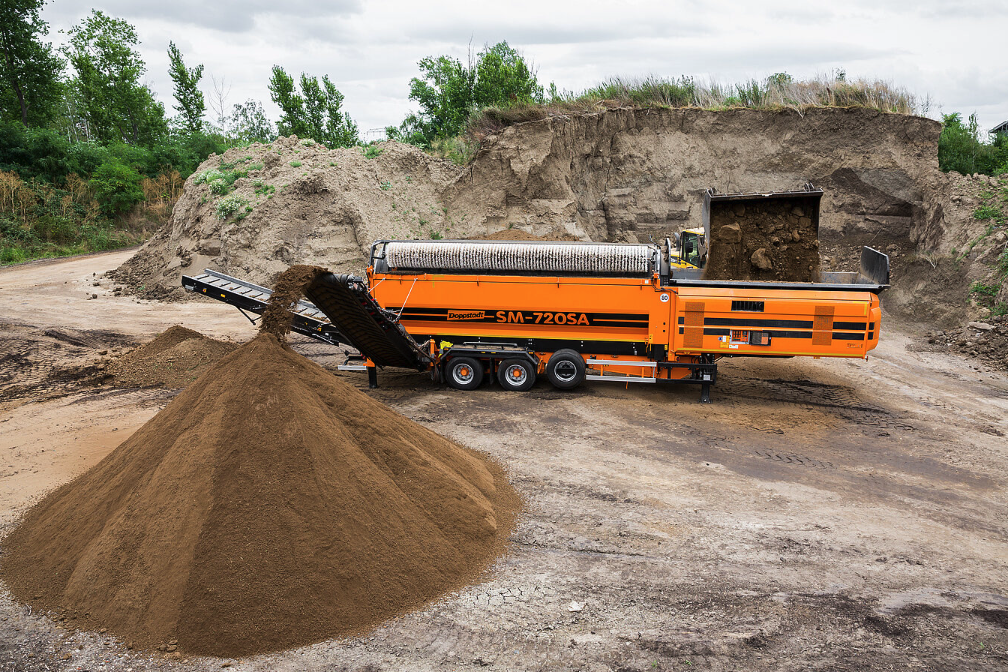

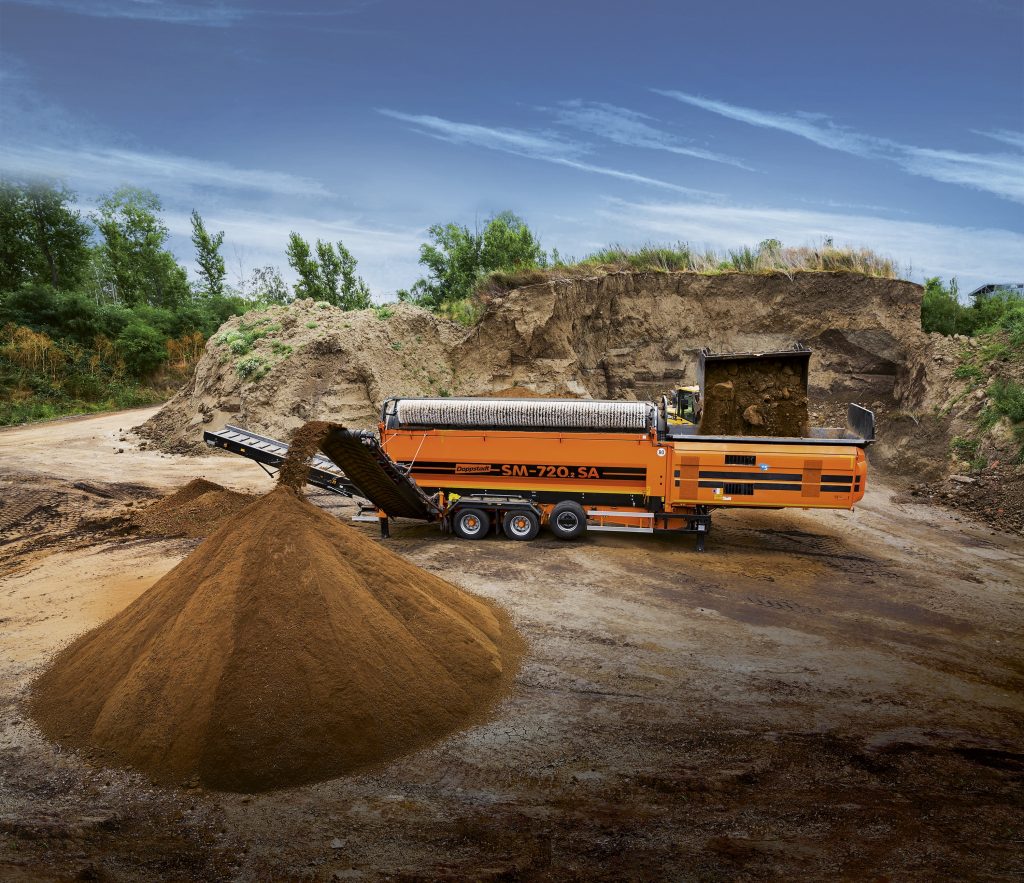

SM 720.2 SA
Large, powerful and mobile. Maximum efficiency on wheels
As the largest trummel model with a screening cylinder over 7 meters long, the SM 720.2 SA is designed for continuous operation in large-scale screeding applications. Despite its size, it is easy and convenient to rebuild and transport, making it ideal for complex recycling work in changing work sites.
TECHNICHAL SPECIFICATIONS
- Large feed hopper and extra long discharge conveyors
- Low operating costs thanks to a powerful drive mechanism with low fuel consumption
- Short installation time
- Unique load sensor feed control ensures optimal power utilization and uninterrupted operation
RECYCLABLE MATERIALS
- Wood waste
- Būvniecības atkritumi
- Compost, bark, wood chips
- Biowaste
- Commercial waste
FLAT LINE

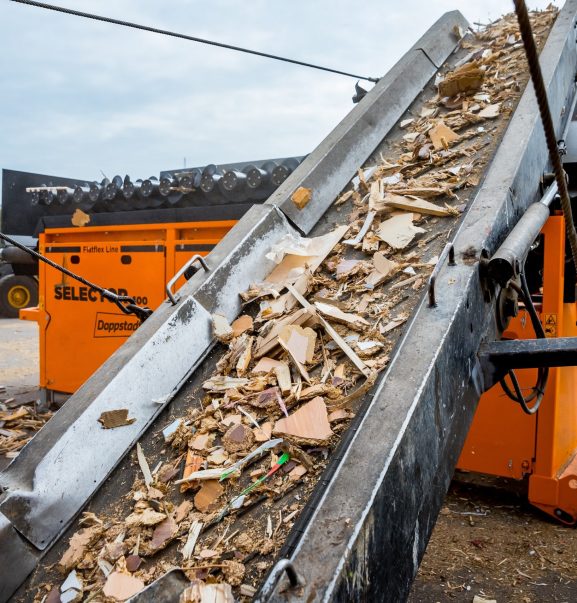

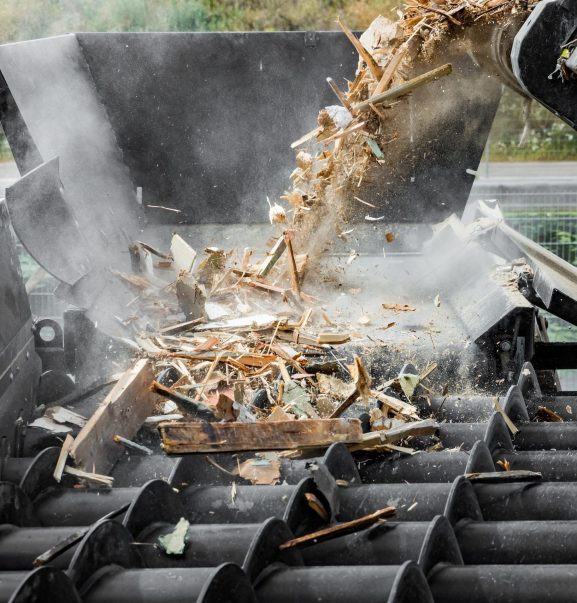

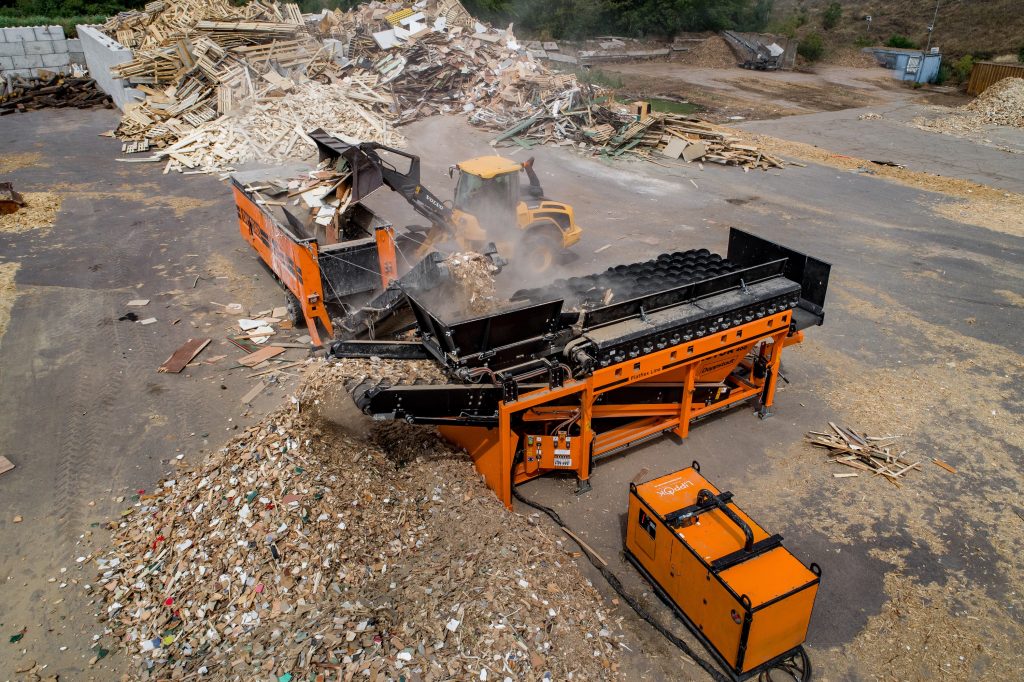

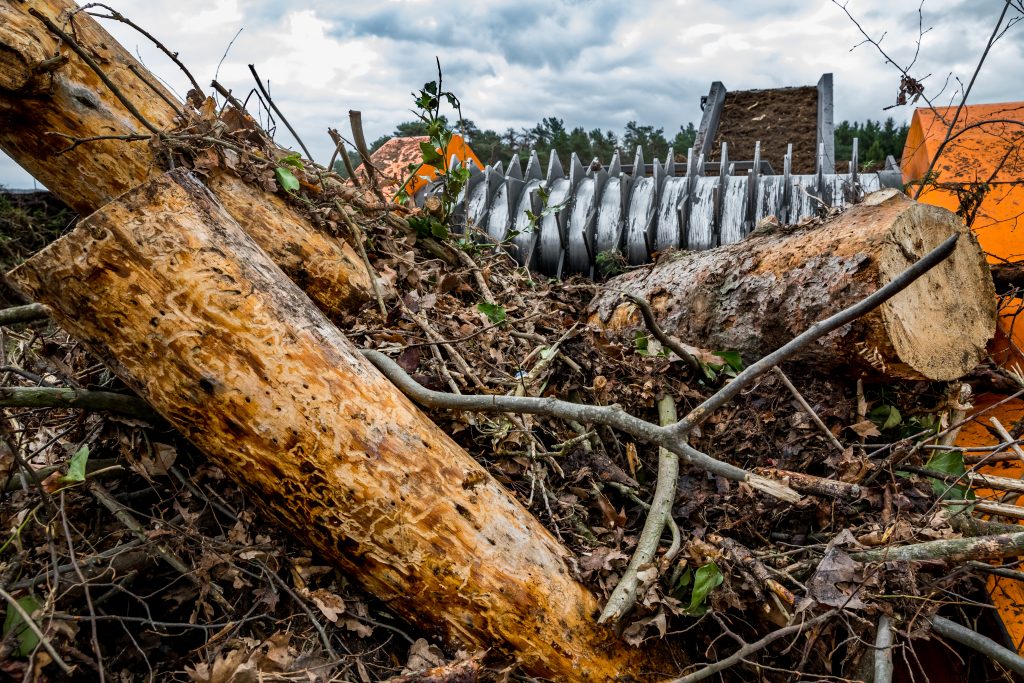

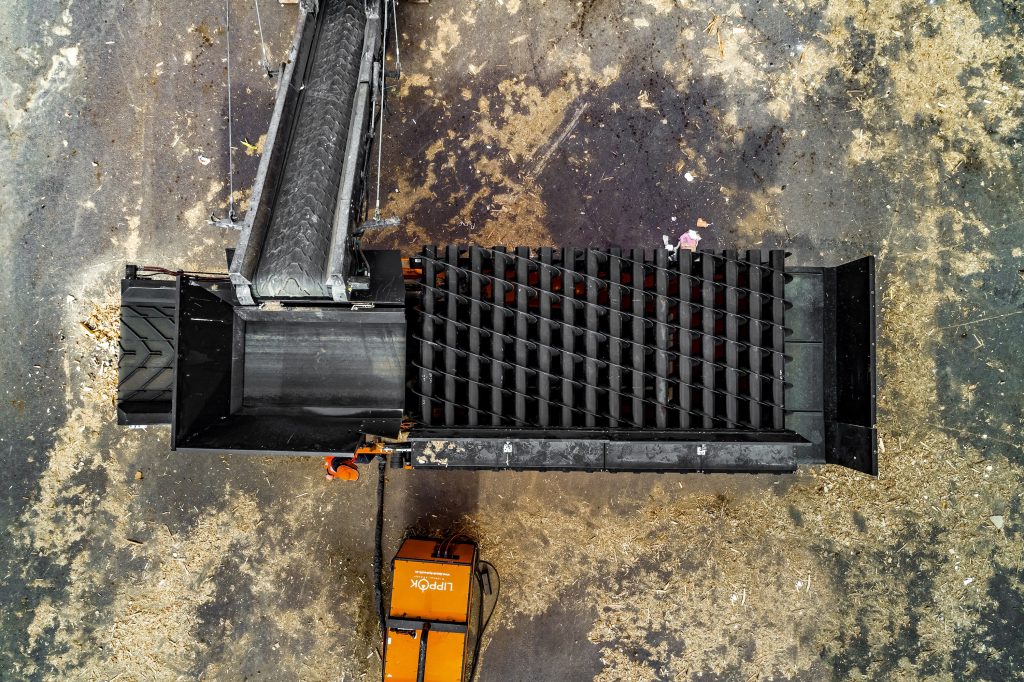

SELECTOR 400
The ideal solution for separating difficult-to-sort material flows
A true expert in mixed material streams. Thanks to its spiral shaft technology, the Selector 400 can handle even difficult-to-sort materials, separating them quickly, reliably and cleanly.
TECHNICHAL SPECIFICATIONS
- Effective processing of difficult-to-screen material flows that can cause significant rotor wear
- Additional hydraulic drive
- Mobile hook lift design, compact transport dimensions, short installation time
- Simple, durable and compact design, no electronics and low-wear technology
- Low energy consumption and very low operating costs
- Also suitable for particularly heterogeneous materials without prior shredding
- Active screen openings prevent clogging or blocking of the screen surface, ensuring consistent screening quality.
RECYCLABLE MATERIALS
- Wood waste
- Bulky waste
- Commercial waste
- Construction debris
- Compost, bark, wood chips
- Biowaste

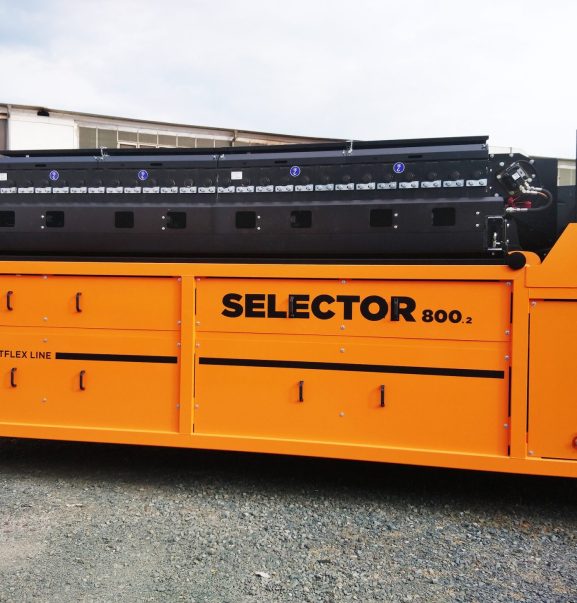

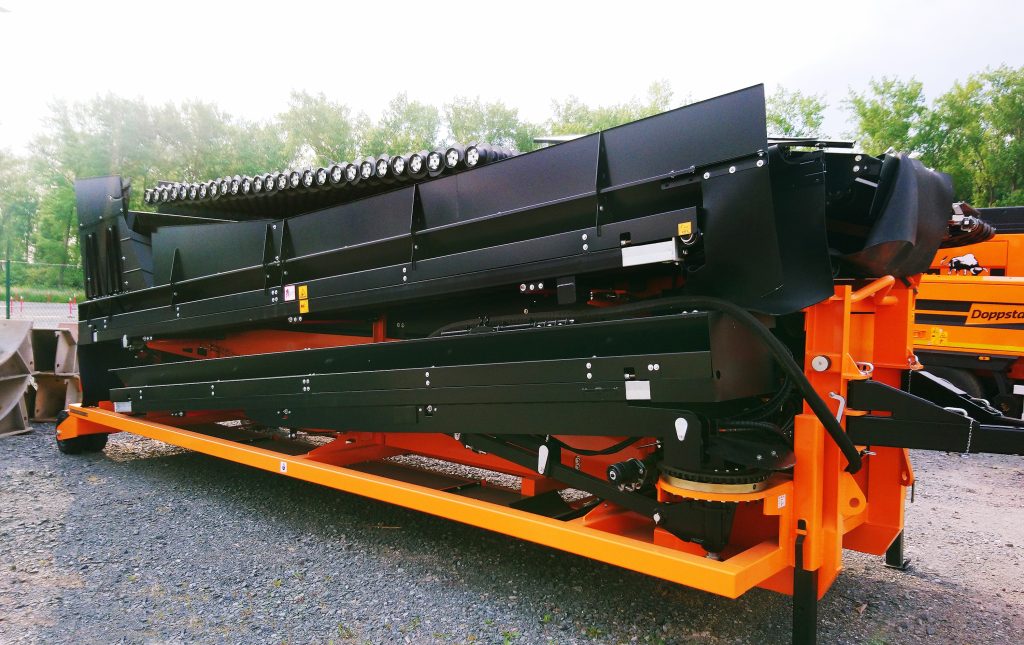

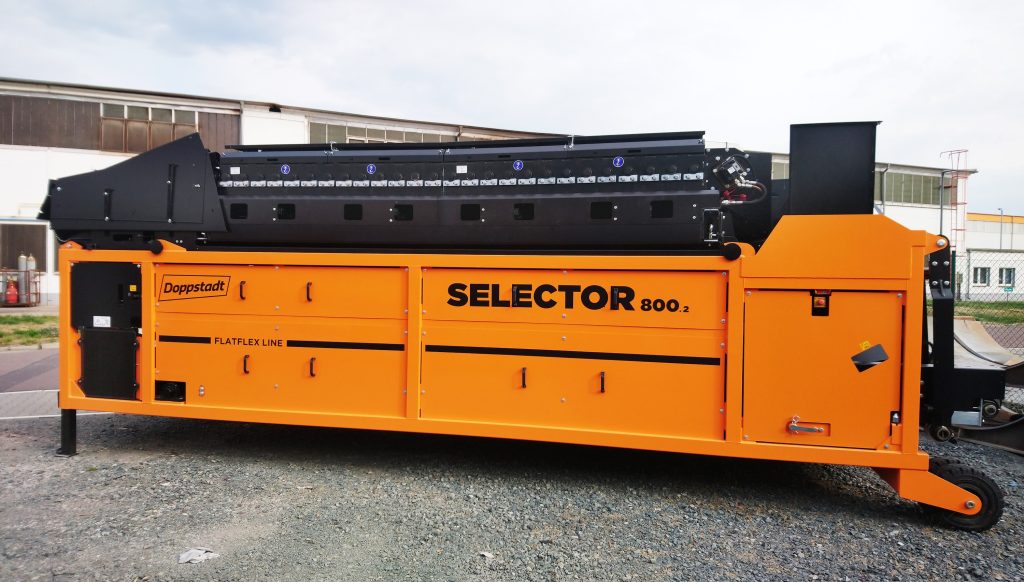

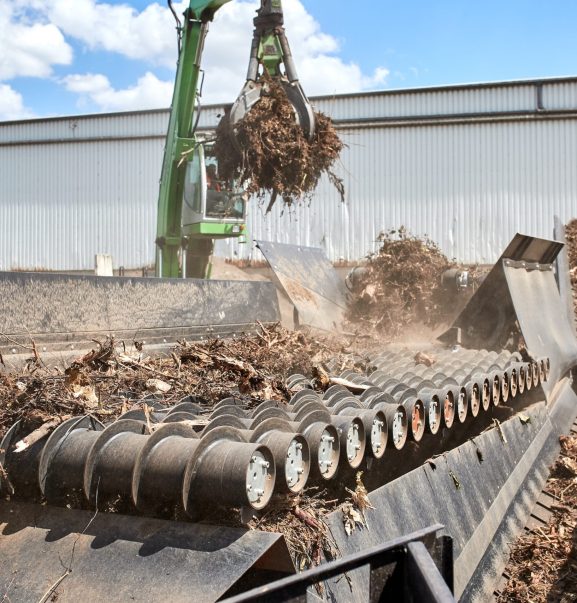

SELECTOR 800.2
Careful separation of difficult-to-sort materials
Ideal for materials that are difficult to separate and easily wrap around the rotor. Thanks to its high throughput, it is ideal for separating complex materials after pre-treatment.
TECHNICHAL SPECIFICATIONS
- SWS screening platform – smooth processing of difficult-to-screen materials
- The sieve openings do not clog
- Various additional superstructures can be installed
- Additional hydraulic drive
- The separation cut can be individually adjusted by changing the spiral shaft screening platform (SWS) or star-shaped screening platform (DST);
- Individual platforms are interchangeable between Selector 400 and 800.2
- Integrated swivel return line allows oversized particles to be automatically recirculated for re-grinding
- Mobile hook lift, compact transport dimensions, short installation time
- Simple, durable, and compact design, no electronics, and less technological wear and tear
- Low energy consumption and very low operating costs
RECYCLABLE MATERIALS
- Wood waste
- Bulky waste
- Commercial waste
- Construction debris
- Compost, bark, wood chips
- Biowaste
SMART TURNING AND GRINDING
SIDE MILLING LINE

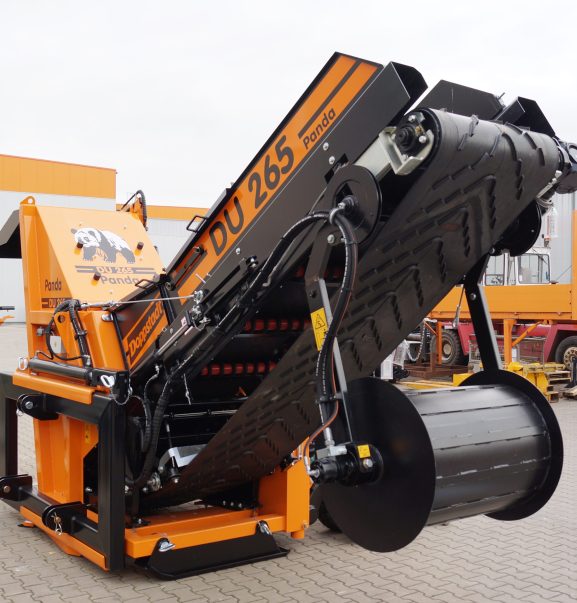

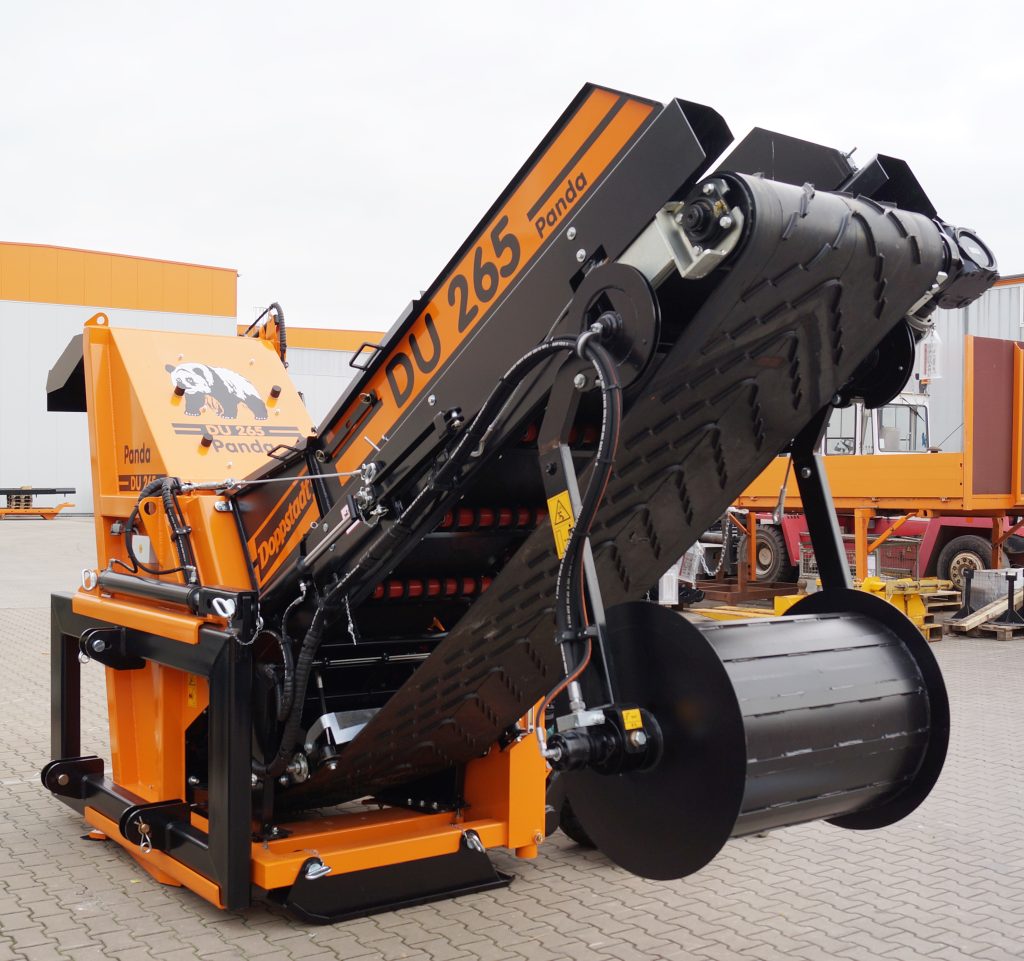

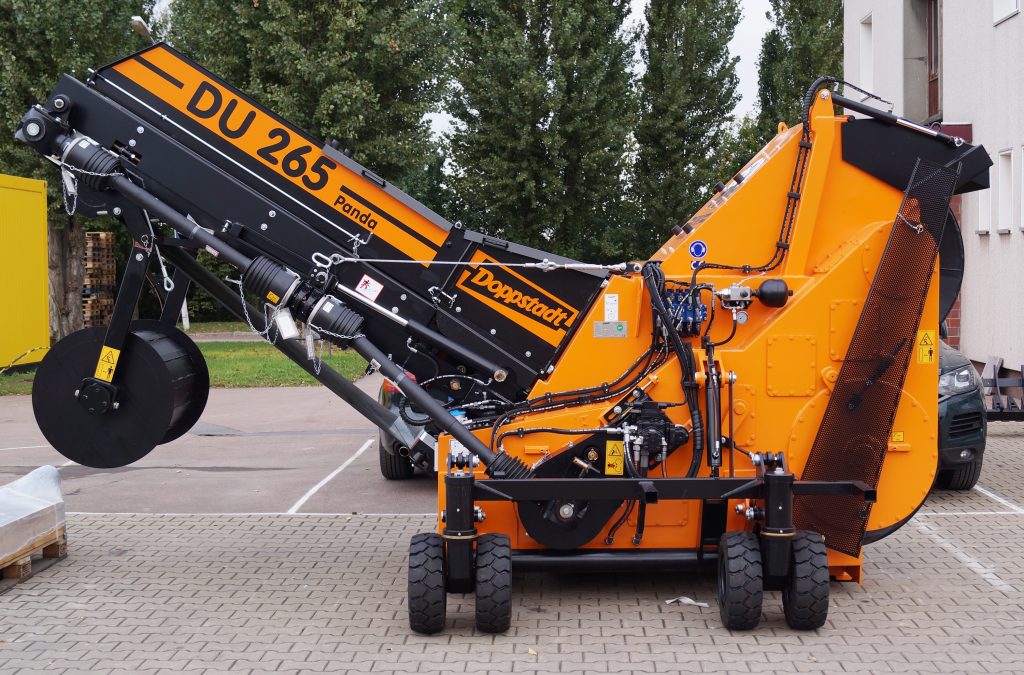

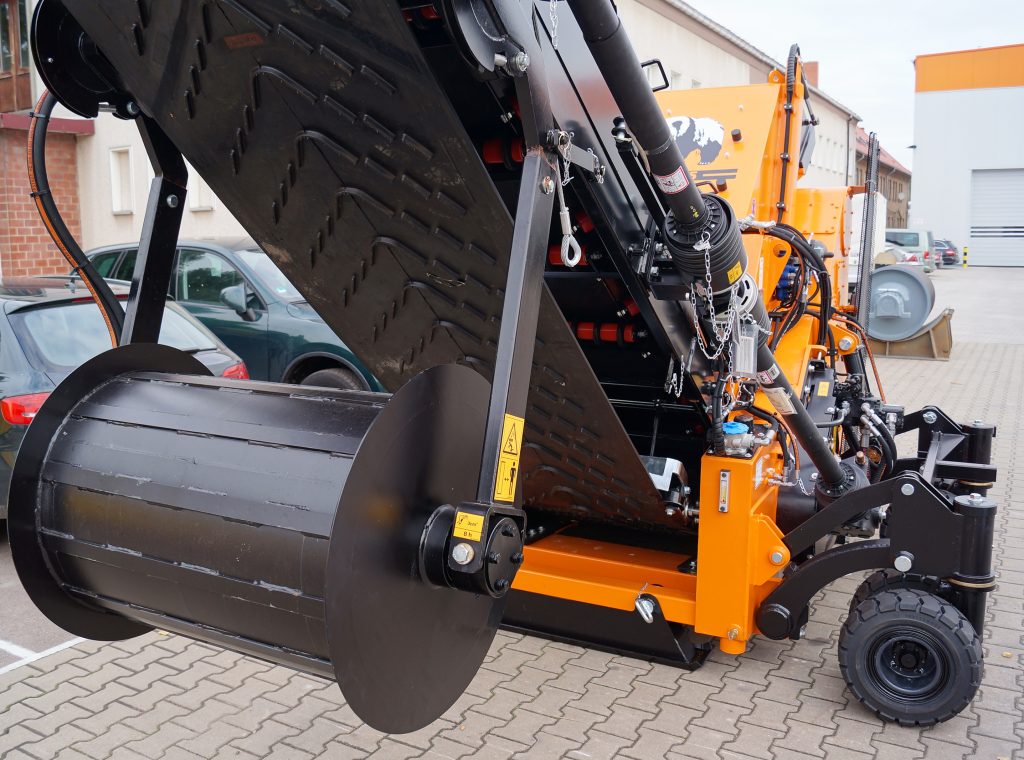

DU 265
Suitable and reliable for creating precise edges.
DU 265 sānos pagriež plakanas un trapeciveida vāles. Tajā pašā laikā materiāls tiek aerēts, un palīdz efetkīvi homogenizēt un paātrināt bioloģiskos pārstrādes procesus.
TECHNICHAL SPECIFICATIONS
- Material throughput: up to 600m3/h
- 1000 rpm, PTO drive Easy transport and installation
- Easy to maintain, compact, high wear resistance
- Hydraulically controlled unloading cylinder
- Three-point hitch
- Additional equipment – emptying cylinder
- Long grass wedge for mowed crop cultivation
RECYCLABLE MATERIALS
- Compost
- Grass

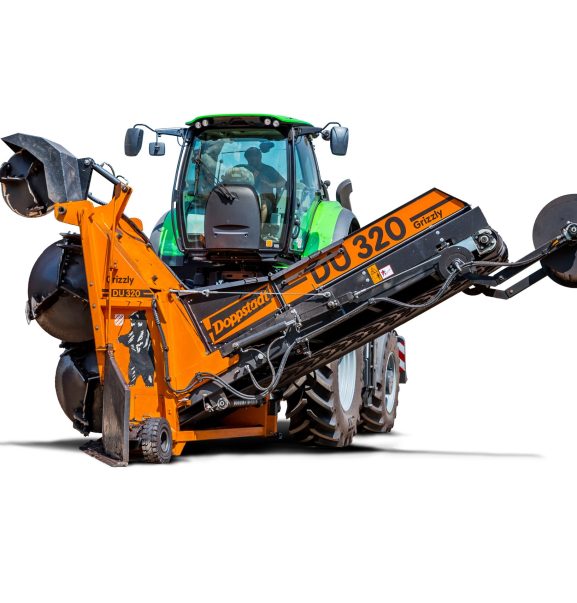

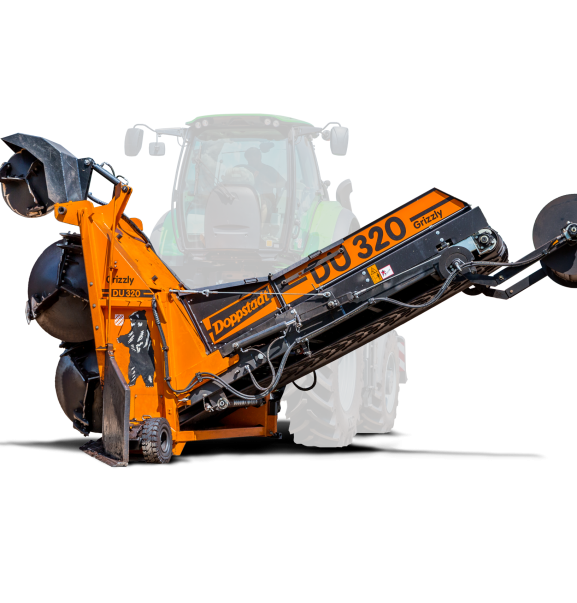

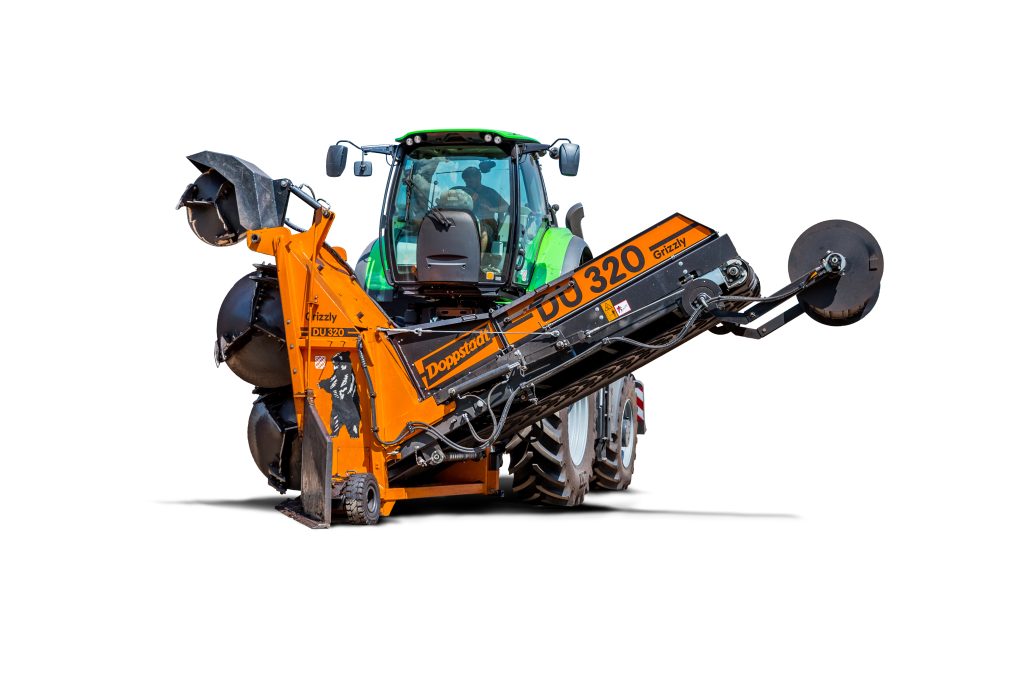

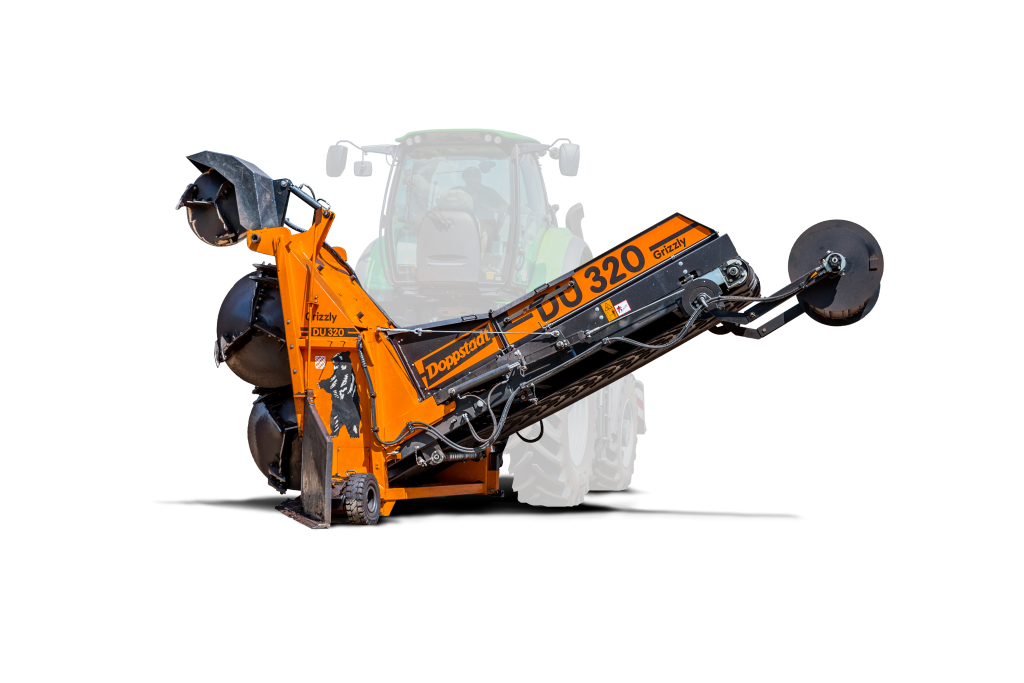

DU 320
An effective addition to large tractors
Suitable and reliable for creating precise ridges. The DU 320 turns flat and trapezoidal ridges on the sides. It mills the material and creates ridges next to the tractor unit, as well as helping to effectively homogenize and accelerate biological decomposition processes.
TECHNICHAL SPECIFICATIONS
- Material throughput: up to 1000m3/h
- 1000 rpm, PTO drive
- Easy transport and installation
- Easy to maintain, compact
- High wear resistance end mills
RECYCLABLE MATERIALS
- Compost
- Grass
